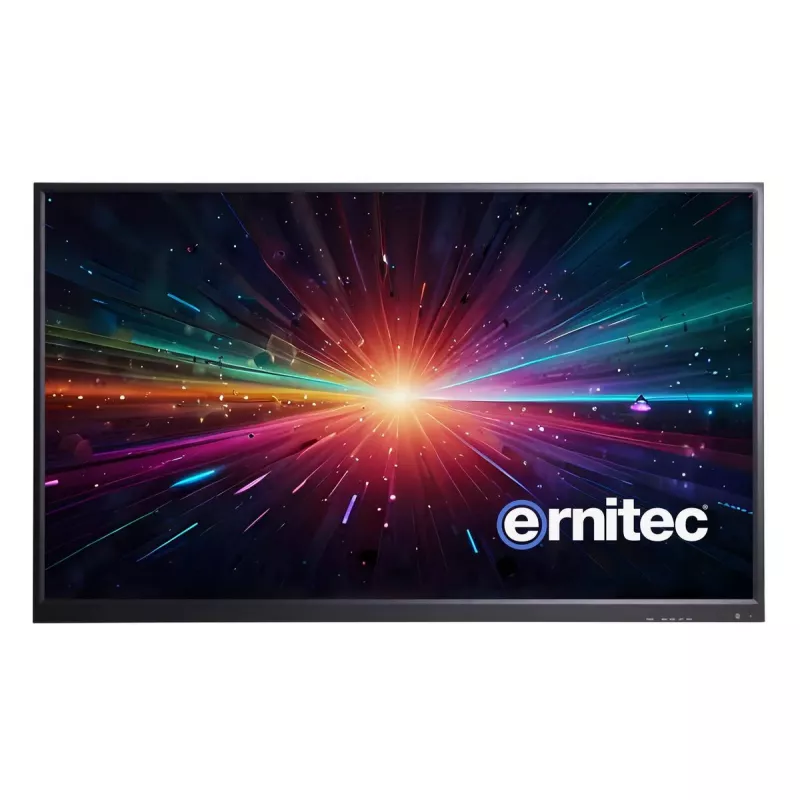

Monitor Ernitec 0070-24143-L-4K 4 inch LCD Display 4K Resolution

The Ernitec 0070-24143-L-4K is a 43-inch TFT-LED monitor with a 16:9 display and native 3840 × 2160 (4K) resolution. It offers a 0.294 mm pixel pitch, support for 1.073 billion display colors and a wide 178° viewing angle. Designed for professional monitoring and surveillance environments, the unit includes multiple inputs and an industrial power supply for continuous operation.

Advantages

This monitor provides high pixel density and 4K clarity in a compact industrial form factor, combined with reliable LED backlight performance and a 50,000-hour MTBF. Multiple HDMI 2.0 ports and a DisplayPort input accommodate different video sources while integrated 2 × 3 W stereo speakers support audio monitoring. The device accepts a wide AC input (100–240 V) and supports both stand and VESA mounting.

Suitable for

• Security and surveillance monitoring stations
• Control rooms and operator consoles
• Industrial visual inspection and quality control
• Video playback and multi-source monitoring setups

Key specifications

• Screen size: 43 inches
• Active display area: 941.184 mm × 529.146 mm
• Resolution: 3840 × 2160 (4K)
• Display mode: 16:9
• Panel type: TFT-LED with LED backlight
• Display colors: 1.073 billion
• Pixel pitch: 0.294 mm × 0.294 mm
• Brightness: 128 nits
• Contrast ratio: 1000:1
• Viewing angle: 178° / 178°
• Response time: 5 ms
• Inputs: 3 × HDMI 2.0, 1 × DisplayPort
• Speakers: 2 × 3 W (stereo)
• Video standards: PAL / NTSC / SECAM OSD
• Controls: Auto adjust, brightness, contrast, H/V position, clock, phase, color, language
• Video processing: 3D comb filter, video noise reduction
• Power supply: AC 100–240 V, 50/60 Hz
• Power consumption: 40 W
• Operating temperature: -30 to +85 °C
• MTBF: 50,000 hours
• Mounting options: Stand mount, VESA mount
• Included accessories: Industrial PSU, screws, cable holder, quick start guide

How to use

Install the monitor on a compatible stand or mount using the VESA pattern and supplied screws. Connect video sources via HDMI 2.0 or DisplayPort and connect the included industrial power supply to AC 100–240 V. Use the on-screen menu to adjust brightness, contrast, position, clock, phase and color. Select the appropriate video standard (PAL/NTSC/SECAM) and enable video noise reduction or 3D comb filter when required for improved signal quality.

Recommendations

For continuous professional use, mount the monitor in a ventilated location within the specified operating temperature range and ensure stable AC power. Regularly check connections and use the built-in controls to optimize image settings for your specific monitoring environment.
