Ernitec 0070-24246 surveillance monitor CCTV monitor 116.8 cm (46 inch) 1920 x 1080 pixels

The Ernitec 46" Video Wall Display (model 0070-24246) is a 46-inch CCTV monitor with a 3840 x 2160 resolution designed for wall-mounted video wall installations. It supports combining 2x2 displays to achieve 4K presentation and offers a 178° viewing angle for consistent image quality across wide areas. The display is intended for professional environments such as security rooms, control centres and public spaces that require high-detail surveillance and monitoring.

Advantages

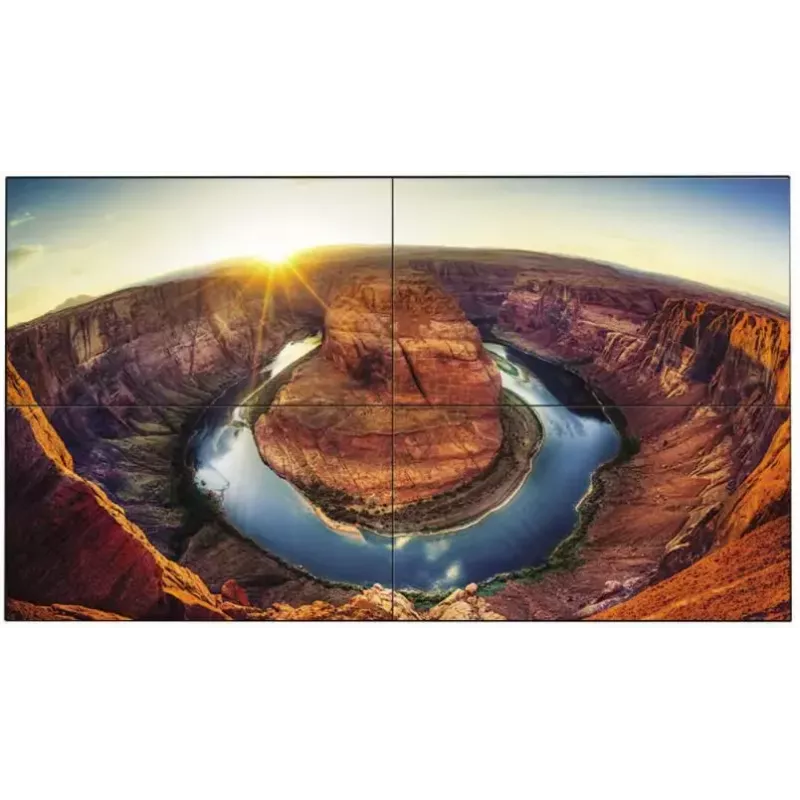

The display features an ultra-thin 3.5 mm seam for near-seamless multi-screen setups, multiple input options including DP, VGA, HDMI, DVI, USB and RS232 for easy integration, and support for PIP, PBP and QUAD configurations to manage diverse content layouts. It also includes multiple mounting solutions and VESA 600x400 mm compatibility for straightforward installation.

Suitable for

• Security and surveillance control rooms
• Broadcasting and monitoring centres
• Shopping malls and hotel lobbies
• Casinos and clubs
• Healthcare facilities and government buildings

Key specifications

• Model: Ernitec 0070-24246
• Screen size: 46"
• Resolution: 3840 x 2160 pixels (4K when using 2x2 configuration)
• Viewing angle: 178°
• Seam width: 3.5 mm

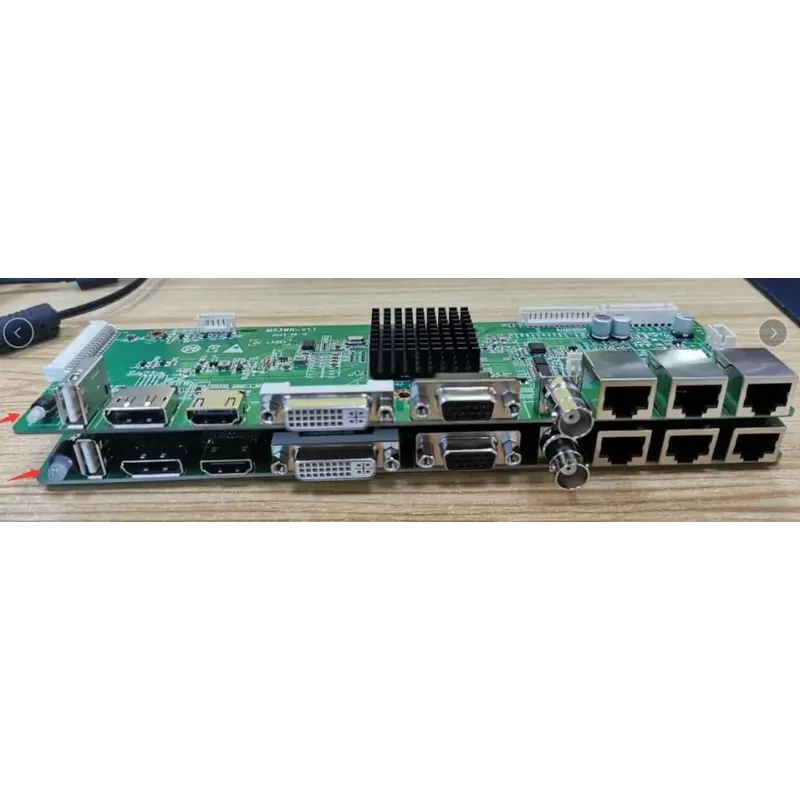

• Inputs: 1 x HDMI In, 1 x VGA In, 1 x DP In, 1 x DVI In, 1 x USB, 1 x RJ45 In, 2 x RJ45 Out, 1 x BNC In, 1 x BNC Out
• Control: RS232

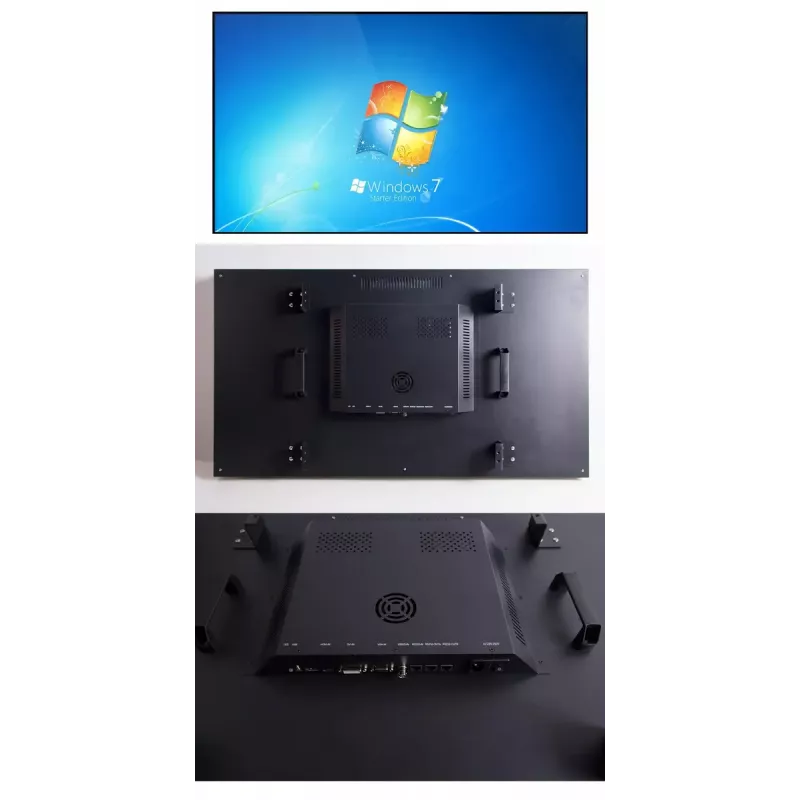

• VESA: 600 x 400 mm

How to use

Mount the display using the supplied brackets or a VESA-compatible mounting system rated for the panel size and weight. Connect video sources via HDMI, DP, VGA or DVI as required and use the RJ45/BNC/RS232 connections for networked control and signal distribution between units. Configure PIP, PBP or QUAD modes through the on-screen menu to arrange content across the video wall. When combining displays into a 2x2 array, set the appropriate input and scaling options to enable 4K output.

Recommendations

Place the monitor in a ventilated, dust-reduced environment and avoid direct sunlight on the screen. For surveillance and control-room use, calibrate brightness and contrast to maintain visibility in varying ambient light conditions and use the ultra-thin seam to minimise visual disruption across multiple panels.
