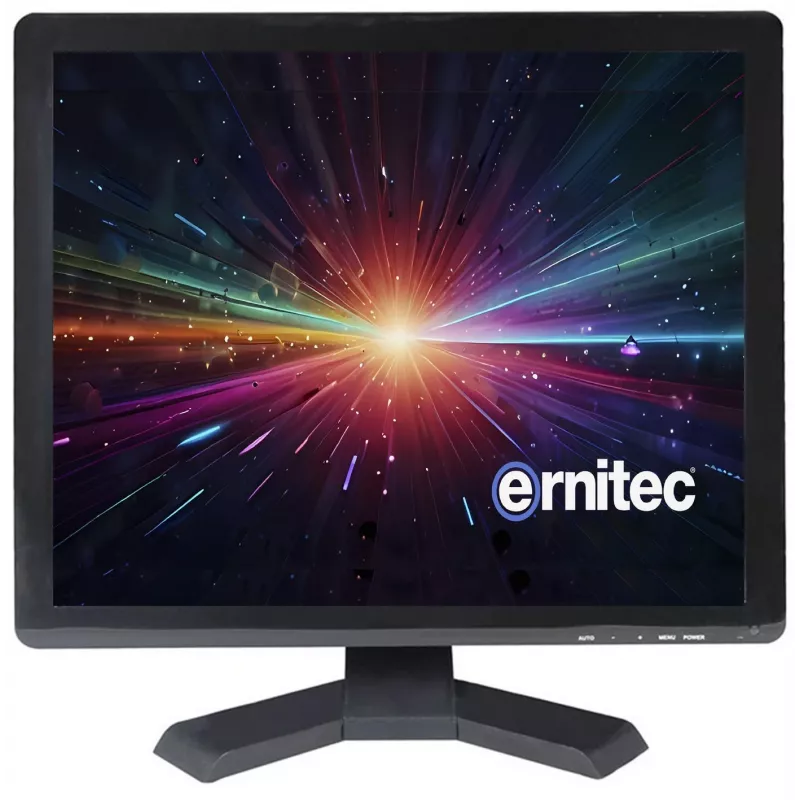

Ernitec 0070-24117-P-5:4 surveillance monitor CCTV monitor 43.2 cm (17 inch) 1280 x 1024 pixels

The Ernitec 0070-24117-P-5:4 is a 17" CCTV monitor with a 1280×1024 TFT-LED panel designed for continuous 24/7 surveillance use. The 5:4 display offers a 337.92 × 270.336 mm active area, 16.7M colours and a 250 cd/m² brightness. Built-in inputs include HDMI 2.0, VGA and BNC for analogue camera connections; there is also a BNC output and stereo speakers (2×3 W). The monitor supports PAL, NTSC and SECAM colour systems and provides on-screen display controls for picture and position adjustments.

Advantages

The monitor combines a robust LED backlight panel with a 5 ms response time and a wide 178° viewing angle for stable image quality in multi-camera surveillance setups. Low power consumption (≤25 W), extended operating temperature range (-30 to +85 °C) and an MTBF of 50,000 hours make it suitable for continuous operation. VESA 75×75 mounting and a stand mount are provided for flexible installation.

Suitable for

• 24/7 CCTV monitoring stations
• Hybrid systems requiring both digital (HDMI) and analogue (BNC) inputs
• Security control rooms and reception desks
• Places with varied ambient temperatures or continuous operation

Key specifications

• Screen size: 17" (active area 337.92 × 270.336 mm)
• Resolution: 1280 × 1024 (5:4)
• Panel type: TFT-LED, 16.7M colours
• Pixel pitch: 0.264 × 0.264 mm
• Brightness: 250 cd/m²
• Contrast ratio: 1000:1
• Viewing angle: 178° / 178°
• Response time: 5 ms
• Inputs/outputs: HDMI 2.0 ×1, VGA ×1, BNC input ×2, BNC output ×1
• Speakers: 2 × 3 W (stereo)
• Video systems: PAL / NTSC / SECAM
• Power: DC 12 V, 50/60 Hz; power consumption ≤25 W
• Operating temperature: -30 to +85 °C
• MTBF: 50,000 hours
• Mounting: Stand mount and VESA 75×75
• Weight (approx.): 7.5 kg

How to use

Place the monitor on its stand or secure it using the VESA 75×75 mount. Connect power using a 12 V DC supply. For digital sources use the HDMI port; for analogue CCTV cameras connect to the BNC inputs. Adjust image parameters (brightness, contrast, horizontal/vertical position, clock, phase and colour) via the on-screen display menu. Use the BNC output if you need to loop an analogue feed to another monitor or recorder.

Recommendations

For reliable 24/7 operation, install the monitor in a location with adequate ventilation, avoid direct sunlight on the screen, and use a stable 12 V DC power source. Regularly check connections and perform firmware or OSD adjustments as needed for optimal display performance.
