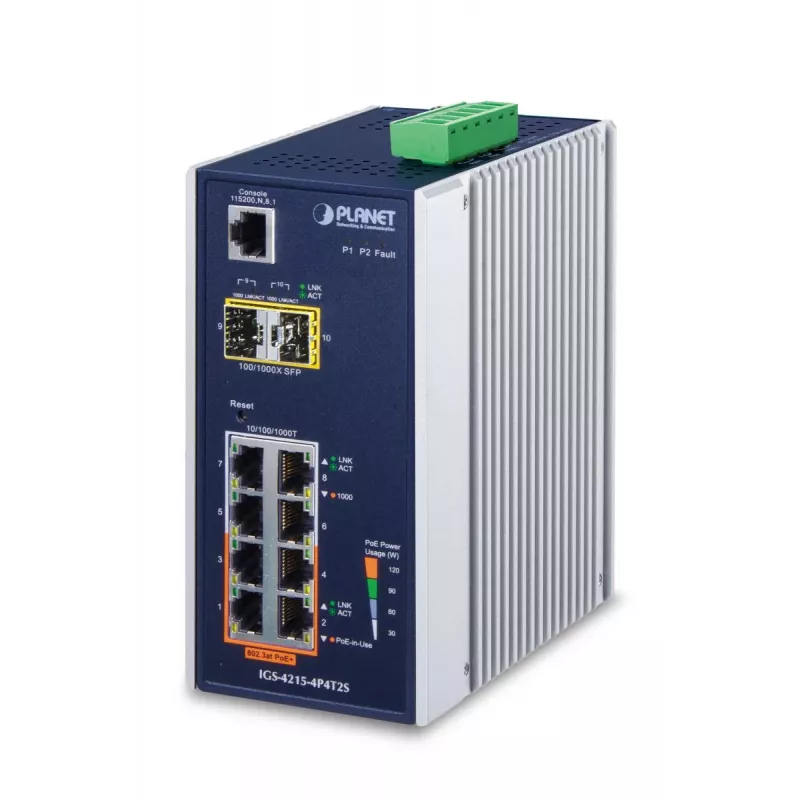

PLANET Managed Switch - Industrial 4-port 10/100/1000t 802.3at PoE + 4-port 10/100/1000t + 2-port 100/1000x Sfp

PLANET Managed Switch - Industrial 4-port 10/100/1000t 802.3at PoE + 4-port 10/100/1000t + 2-port 100/1000x Sfp
PLANET Managed Switch - Industrial 4-port 10/100/1000t 802.3at PoE + 4-port 10/100/1000t + 2-port 100/1000x Sfp
R7,344
The PLANET Managed Switch is an industrial-grade networking solution designed for demanding environments, combining 4-port 10/100/1000T 802.3at PoE with 4-port 10/100/1000T and 2-port 100/1000X SFP slots. This managed switch delivers robust performance and reliable power over Ethernet for connected ... Read More
Stock 14 Code 328538 Brand PLANET Model IGS-4215-4P4T2S Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 9
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The PLANET Managed Switch is an industrial-grade networking solution designed for demanding environments, combining 4-port 10/100/1000T 802.3at PoE with 4-port 10/100/1000T and 2-port 100/1000X SFP slots. This managed switch delivers robust performance and reliable power over Ethernet for connected devices.

Key features

  • 4-port 10/100/1000T with 802.3at PoE+ support, providing up to 144W total PoE budget for powering devices like IP cameras and wireless access points
  • 4 additional 10/100/1000T ports for standard Gigabit Ethernet connectivity
  • 2-port 100/1000X SFP slots for flexible fiber uplink or long-distance connections
  • Managed L2/L4 switching with advanced features including VLAN, QoS, and security protocols (IEEE 802.1Q, 802.1p, 802.1x)
  • Switching capacity of 20 Gbit/s and MAC address table supporting 8,000 entries for efficient data handling
  • Industrial-grade design with wide DC input voltage range (48-56V) and support for wall-mount installation
  • Compliant with IEEE 802.1D, 802.1w, 802.1s, and 802.1ab standards for network reliability and management
Key Highlights
  • Physical Port
  • 8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)
  • 2 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
  • RJ45 console interface for switch basic management and setup
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE port power feeding priority
  • Per PoE port power limitation
  • PD classification detection
  • PD alive-check
  • PoE schedule
  • Industrial Case & Installation
  • IP30 aluminum case
  • DIN-rail and wall-mount design
  • Supports -40 to 75 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Redundant power design
  • 48V~56V DC wide power input with reverse polarity protection
  • Provides one relay output for power failure
  • Switching
  • Hardware based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 10K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Layer 2 Features
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  • Protocol VLAN
  • Voice VLAN
  • Private VLAN (Protected port)
  • Management VLAN
  • GVRP
  • Supports Spanning Tree Protocol
  • STP (Spanning Tree Protocol)
  • RSTP (Rapid Spanning Tree Protocol)
  • MSTP (Multiple Spanning Tree Protocol)
  • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Maximum 4 trunk groups, up to 4 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Traffic classification
  • IEEE 802.1p CoS- TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Multicast
  • Supports IPv4 IGMP snooping v2, v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • Industrial surveillance systems with PoE IP cameras
  • Outdoor or harsh-environment wireless access point deployments
  • VoIP telephony and small-to-medium business network edge
  • Long-distance uplink to monitoring centers via SFP fiber
  • Model: PLANET IGS-4215-4P4T2S (MPN: IGS-4215-4P4T2S, EAN: 4711605281607)
  • Switching: Managed L2/L4 Gigabit switch; switching capacity suitable for gigabit edge deployment
  • Ports: 4 × 10/100/1000BASE-T PoE+ (30 W each), 4 × Gigabit copper ports, 2 × 100/1000BASE-X SFP slots
  • PoE power budget: Up to 144 W total
  • Power input: DC 48–56 V
  • MAC address table: 8000 entries
  • Standards: IEEE 802.1D/Q/ab/p/s/w/x and IEEE 802.3 family (see product data)
  • Operating temperature: -40 to 75 °C
  • Housing: IP30 aluminum metal case; DIN-rail / wall-mountable
  • Weight: 1.004 kg
Specifications
10G support
No
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
Port-based authentication
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Certification
FCC 15 A, CE
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
DC input voltage
48 - 56 V
Depth
107.3 mm
DHCP features
DHCP client
DIN rail mounting
Yes
Fiber ethernet cabling technology
100BASE-FX, 1000BASE-BX, 1000BASE-LX, 1000BASE-SX
Firmware upgradeable
Yes
Flow control support
Yes
Harmonized System (HS) code
85176990
Heat dissipation
523.8 BTU/h
Height
152 mm
Housing material
Aluminium
IGMP snooping
Yes
Input current
3.5 A
International Protection (IP) code
IP30
IP-MAC-Port binding
Yes
Jumbo frames
10000
Jumbo frames support
Yes
LED indicators
Activity, Link, PoE, Power, System
Link aggregation
Yes
MAC address filtering
Yes
MAC address table
8000 entries
MIB support
RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of multicast groups filtered
256
Number of trunks
4
Number of VLANs
256
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 75 °C
Packet buffer memory
4.1 MB
Port mirroring
Yes
Power consumption (max)
152.96 W
Power consumption (typical)
5.04 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) voltage range
48 - 56 V
Product colour
Blue, White
Quality of Service (QoS) support
Yes
Rack mounting
No
Rate limiting
Yes
Reset button
Yes
Safety
IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
Security algorithms
128-bit SSL, 802.1x RADIUS, SNMP, SSH
SFP module slots quantity
2
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
No
Static port security
Yes
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Store-and-forward
Yes
Switch layer
L2/L4
Switch type
Managed
Switching capacity
20 Gbit/s
System event log
Yes
Terminal block port
Yes
Throughput
14.8 Mpps
Total Power over Ethernet (PoE) budget
144 W
Traffic classification
Yes
Virtual LAN features
Stacked VLAN, Private VLAN, Protocol-based VLAN
VLAN support
Yes
Wall mountable
Yes
Web-based management
Yes
Weight
1 kg
Width
76.8 mm
