Managed Switch PLANET IP30 DIN-rail Industrial L3 8P

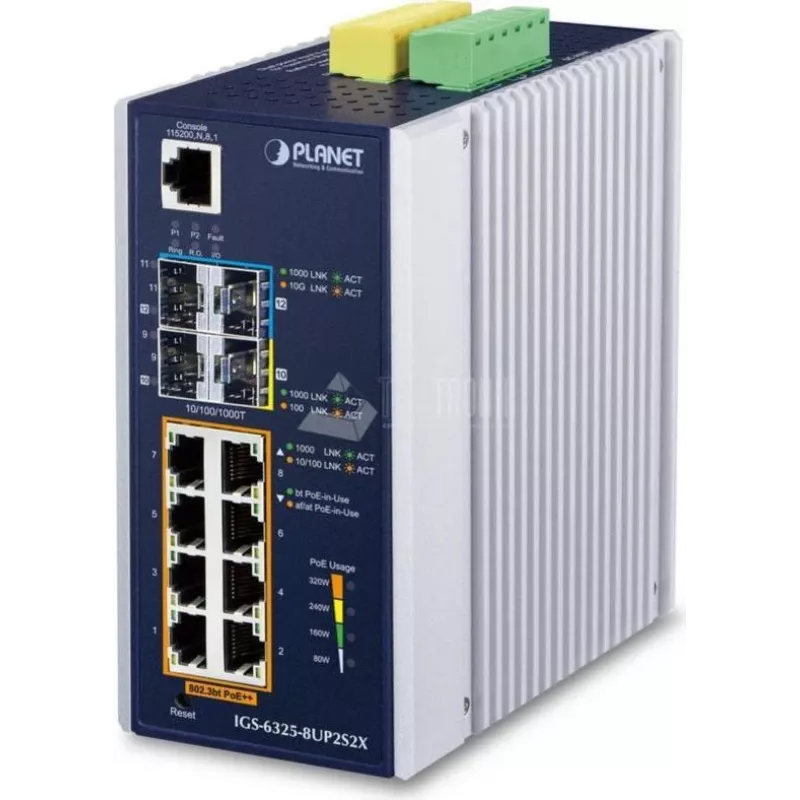

The PLANET IGS-6325-8UP2S2X is an IP30-rated industrial L3 managed Gigabit switch with eight 10/100/1000BASE-T PoE++ ports, two 10G SFP+ ports and two 1/2.5G SFP ports in a rugged metal case. Compliant with IEEE 802.3bt and PoH technologies, each PoE port can deliver up to 90–95 watts over four-pair Cat5e/6 cabling. The switch operates in a wide temperature range (−40 to 75 °C) and supports DIN-rail or wall mounting for industrial deployments.

Advantages

The device provides high-power PoE++ output modes including 90 W 802.3bt type‑4, 95 W PoH/UPOE and 4‑pair force mode to support a wide range of high-power PDs. It offers Layer 3 IPv4/IPv6 static routing and OSPFv2, fast ring recovery (G.8032 ERPS), extensive Layer 2 features, Modbus TCP for SCADA integration, IEEE 1588 support, and multiple management interfaces (Web, console, SNMPv3). Built-in alarm, DI/DO and security functions (ACL, 802.1X, DHCP snooping, IP Source Guard, DAI) increase resilience in critical networks.

Suitable for

• Powering and connecting PoE PTZ and high-power surveillance cameras
• Industrial network backbone with 10G uplinks
• PoE-powered kiosks, thin clients, AIO terminals and digital signage
• Factory automation with SCADA/HMI integration via Modbus TCP
• Outdoor/indoor hardened installations that require DIN-rail or wall mounting

Key specifications

• Model: PLANET IGS-6325-8UP2S2X (MPN: IGS-6325-8UP2S2X, EAN: 4711605284738)
• Ports: 8 × 10/100/1000BASE-T PoE++ ports, 2 × 10G SFP+, 2 × 100/1000/2500BASE-X SFP
• PoE: IEEE 802.3bt / PoH, up to 90–95 W per port, multiple output modes (90 W, 95 W PoH, 30 W end-span, 30 W mid‑span, 60 W force)
• Switching capacity: 60 Gbit/s
• Layer 3: IPv4/IPv6 static routing, OSPFv2
• Management: Web GUI, console, Telnet, SNMPv3
• Industrial features: IP30 metal case, DIN-rail/wall mount, operating temperature −40 to 75 °C
• Security: ACL (L2–L4), 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
• Other: Modbus TCP, IEEE 1588, SFP-DDM diagnostics, DI/DO alarm
• Weight and color: 1.152 kg; aluminium/blue

How to use

Install the switch on a DIN rail or mount it to a wall in a ventilated enclosure. Connect Cat5e/6 cables from powered devices to the RJ-45 PoE++ ports and use appropriate SFP/SFP+ transceivers for uplinks. Configure VLANs, Layer 3 routes or OSPF via the Web GUI, console or SNMP management tools. Select the desired PoE power output mode per port in the PoE settings, upload floor plans and enable ONVIF discovery if using network cameras. Enable PoE schedules, alive check and scheduled power recycling as required for energy saving and device reliability.

Recommendations

For reliable PoE delivery, use Cat5e or Cat6 cabling and verify PD compatibility with 4‑pair PoE modes. Configure PoE schedules and alive check to reduce downtime and energy use, and enable SNMPv3 or TLS/SSHv2 for secure remote management.
