Internal SATA USB 3.2 Gen 1 Adapter DeLOCK 89374

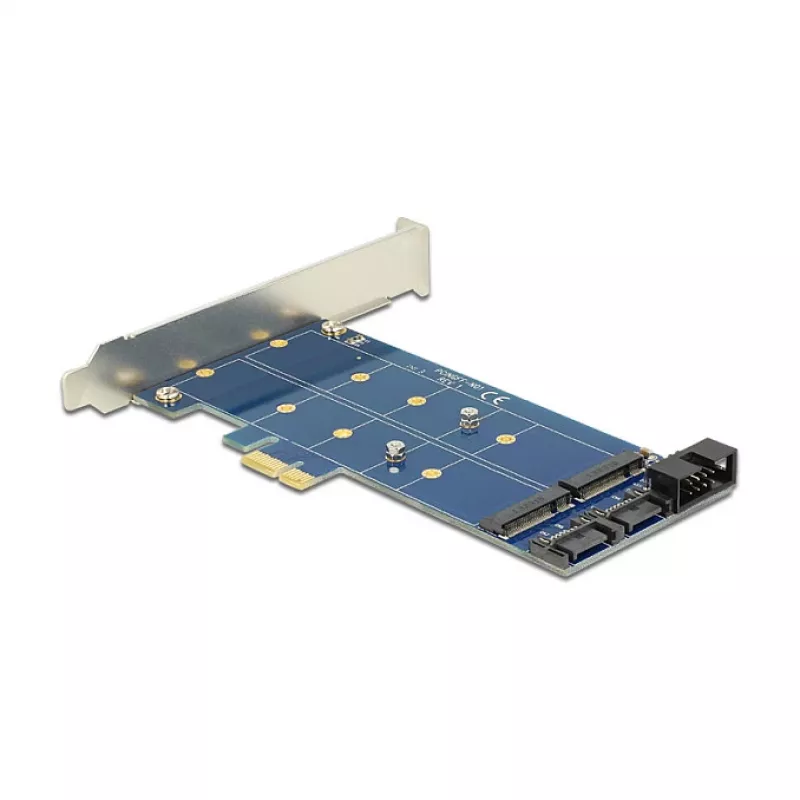

The DeLOCK Internal SATA USB 3.2 Gen 1 Adapter (model 89374) is a PCI Express expansion card that adds two M.2 NGFF slots to a desktop or server system. It supports M.2 module sizes 22110, 2280, 2260, 2242 and 2230 and can work with modules that use either SATA or USB signalling. The adapter requires internal connection of the module's corresponding SATA or USB cable to the mainboard for proper operation.

Advantages

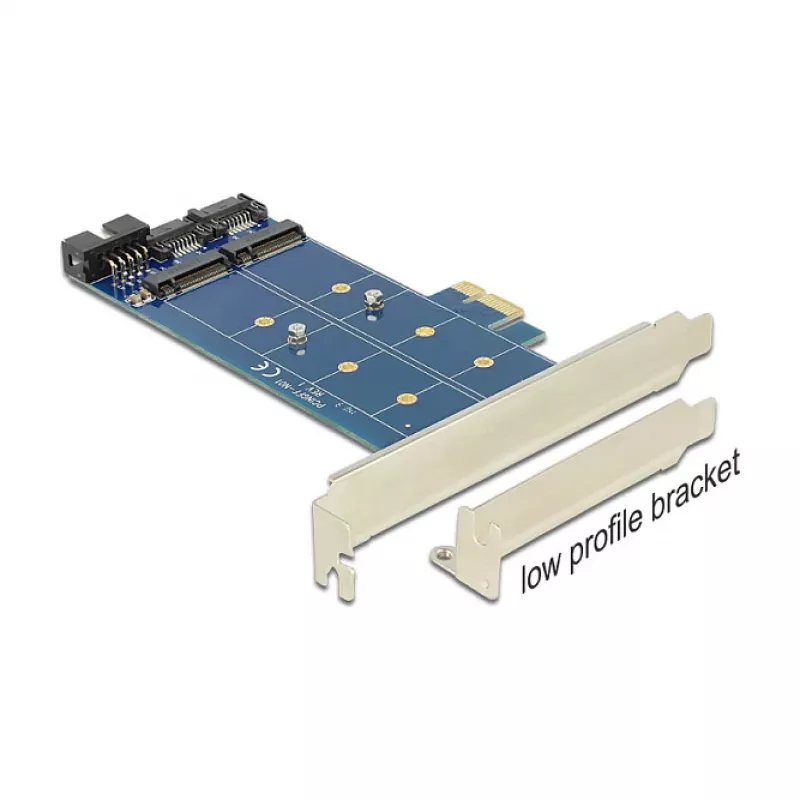

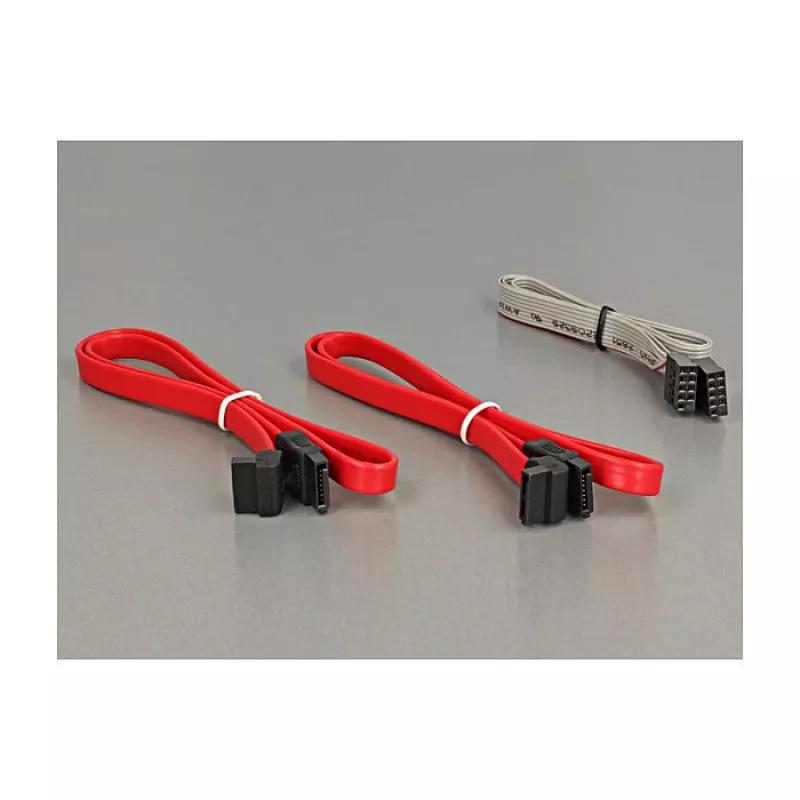

This PCIe adapter provides two M.2 NGFF slots in one low-profile card, supporting multiple common module lengths for flexible storage expansion. It includes SATA and USB cables for in-system connection and supports SATA data rates up to 6 Gbit/s through the host interface, enabling reliable data transfer with compatible drives and modules.

Suitable for

Key specifications

How to use

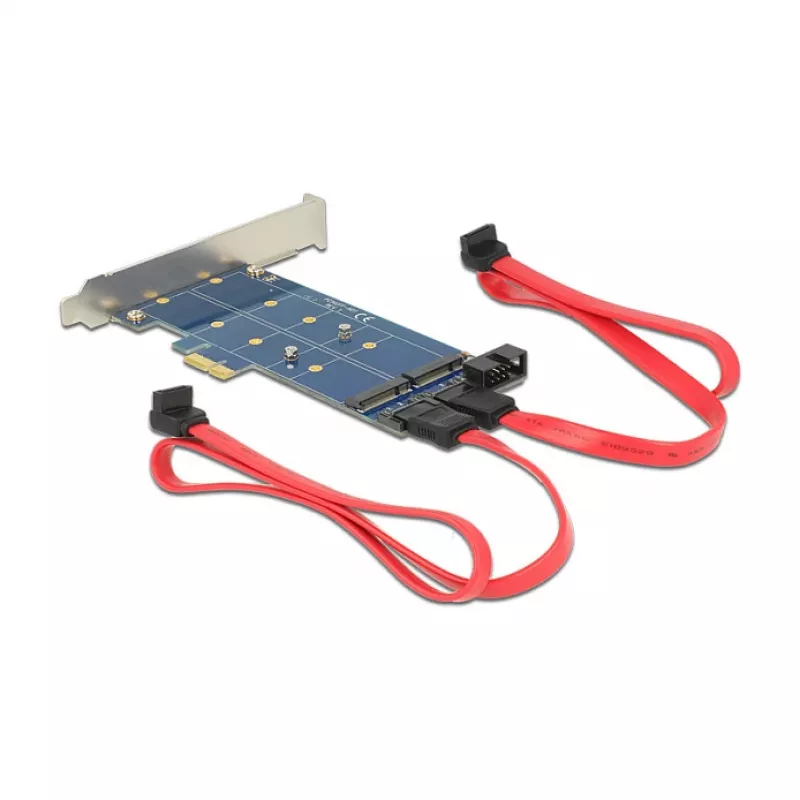

Install the adapter into an available PCI Express slot in your computer following standard anti-static and installation procedures. Mount one or two M.2 NGFF modules into the provided slots and secure them. Connect the module to the motherboard using the supplied internal SATA or USB cable according to the module type (SATA-based modules must use the SATA cable; USB-based modules must use the USB cable). Ensure the motherboard has the corresponding internal headers and enable any required BIOS settings for added storage devices.

Recommendations

Use compatible M.2 modules in the supported sizes and connect the correct cable type to the motherboard. Verify motherboard header availability and BIOS/UEFI configuration before installation to ensure the adapter and connected modules function correctly.
