Interface Card DeLOCK 62848 Internal M.2 Mini PCI Express

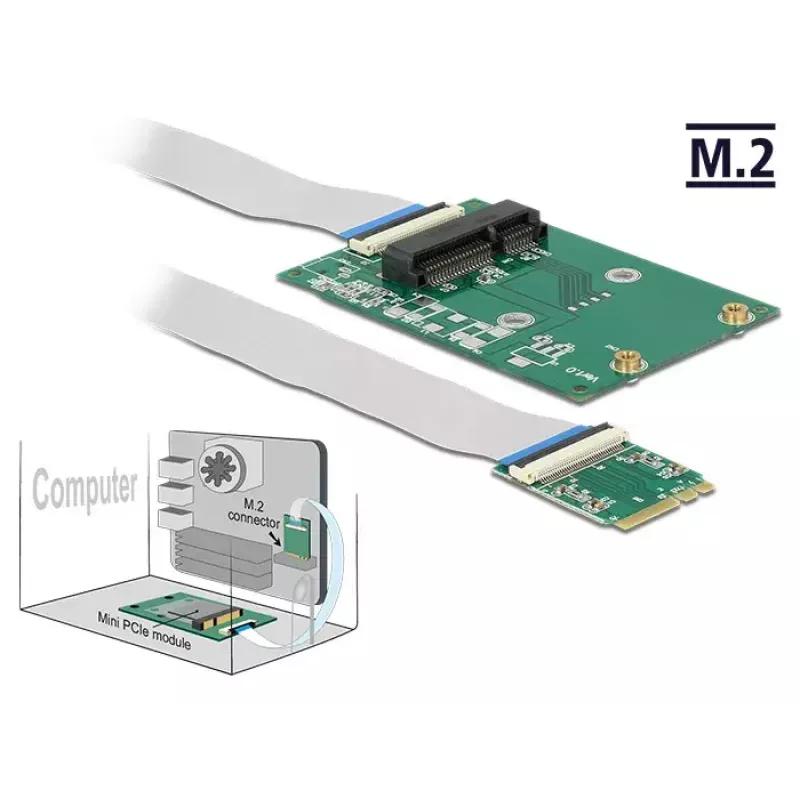

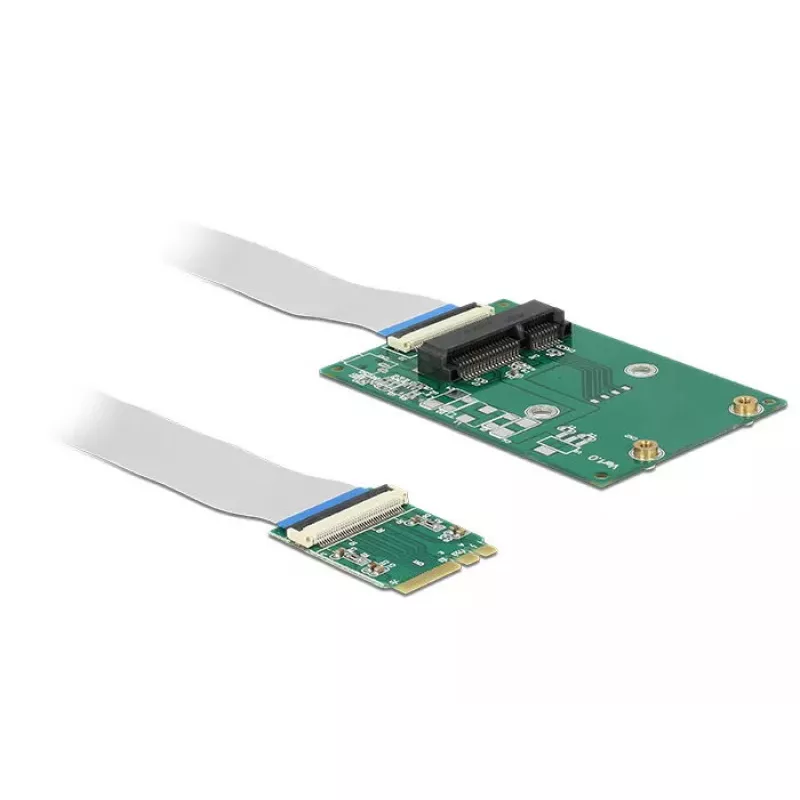

The DeLOCK 62848 converts an M.2 Key A or Key E interface into a Mini PCIe interface, enabling installation of Mini PCIe modules that provide USB and PCIe signals. It supports inserting modules such as WLAN, Bluetooth, GNSS, 3G, HSPA and NFC on the M.2 Key A/E connector and allows using dual-function modules (for example WLAN with Bluetooth) with both functions active.

Advantages

This internal adapter provides compatibility between M.2 Key A/E cards and Mini PCI Express slots, enabling reuse of M.2 wireless and GNSS modules in systems that only offer Mini PCIe. The product is compact and delivered in a box package suitable for safe transport and storage.

Suitable for

• Integrating M.2 Key A or Key E wireless modules into Mini PCIe systems
• Upgrading devices to add WLAN, Bluetooth or GNSS functionality
• Testing or evaluating M.2 modules using a Mini PCIe slot

Key specifications

• Brand: DELOCK
• Model / MPN: 62848
• EAN: 4043619628483
• Host interface: Mini PCI Express
• Output interface: M.2 (Key A / Key E)
• Internal installation: Yes

How to use

Install the DeLOCK 62848 into an available Mini PCIe slot on the host motherboard. Insert the M.2 Key A or Key E module into the M.2 connector on the adapter, secure it according to the module manufacturer’s instructions, and connect any required antennas or cables. Ensure drivers for the inserted module are installed in the host system so the module functions correctly.

Recommendations

Use only compatible M.2 Key A or Key E modules that present USB and/or PCIe signals. Verify antenna connections and driver compatibility before deployment. Handle the card and modules in an ESD-safe environment to avoid damage.
