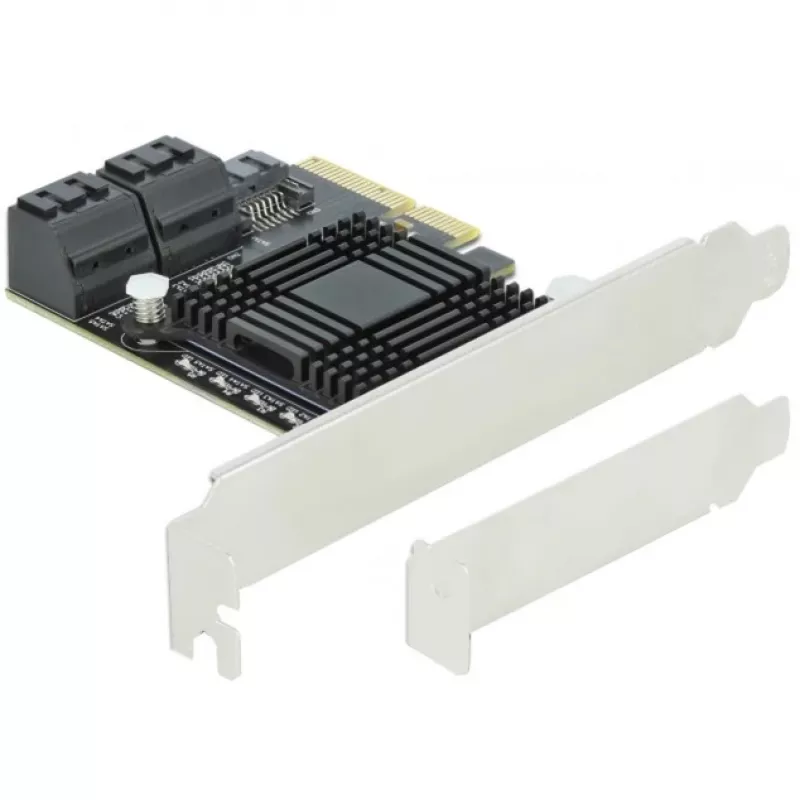

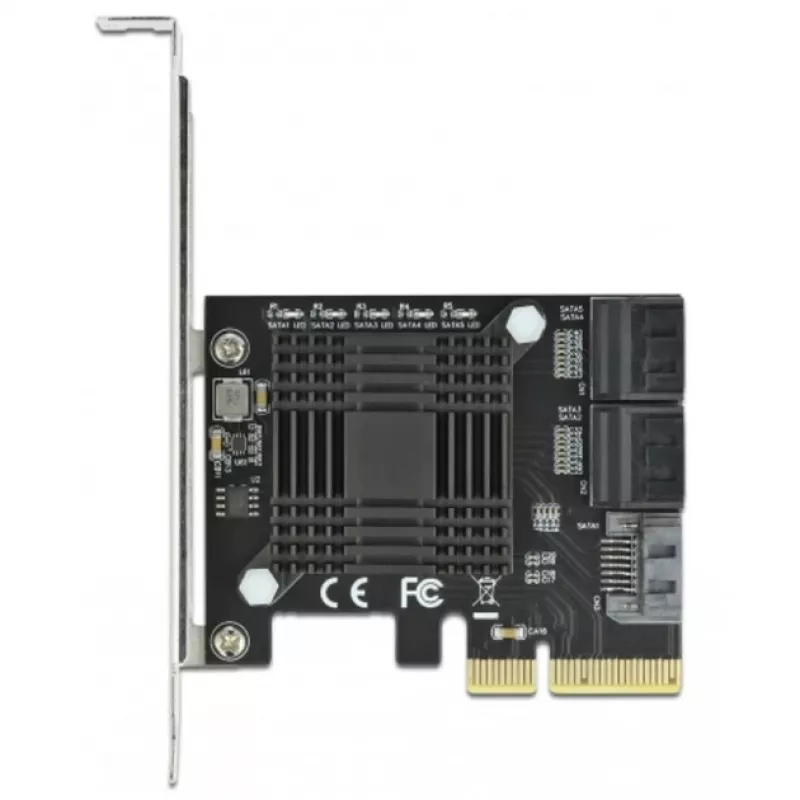

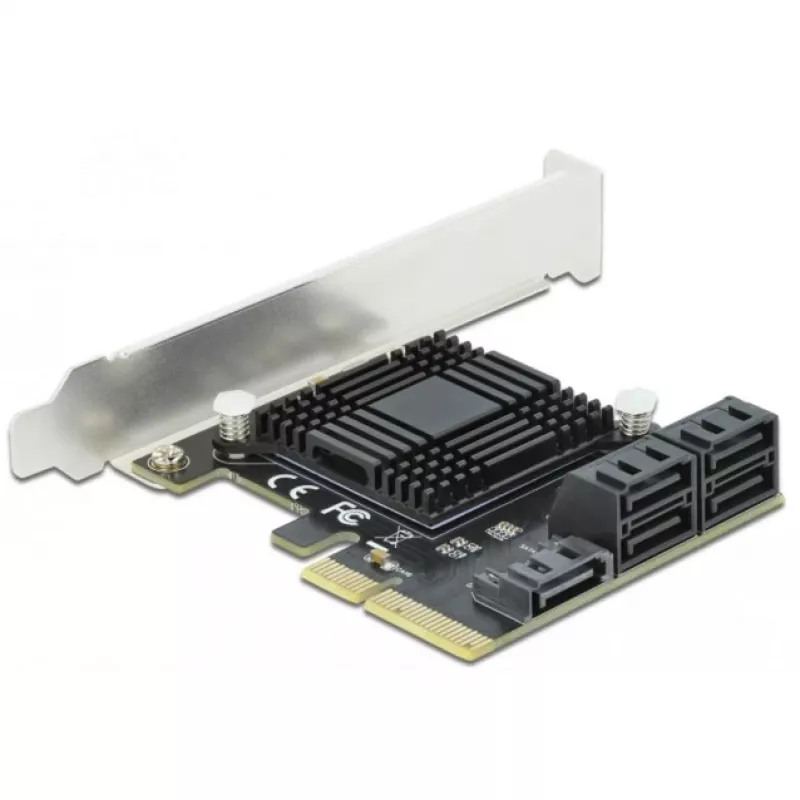

SATA PCI Express x4 Card DeLOCK 5 port Low Profile Form Factor

The DeLOCK SATA PCI Express x4 card adds five internal SATA ports to a PC, enabling connection of storage and optical devices such as SSDs, hard drives and DVD drives. The card uses a PCIe x4 host interface and comes in a low profile form factor suitable for compact cases. It supports SATA transfer rates up to 6 Gbit/s and includes SATA cables for immediate connection.

Advantages

This low profile PCIe card provides five internal SATA ports in a single expansion slot, supports SATA III speeds up to 6 Gbit/s for fast data transfer, and is supplied with SATA cables to simplify installation. The compact design fits small-form-factor systems while maintaining compatibility with standard SATA devices.

Suitable for

• Adding additional internal hard drives or SSDs to a desktop PC
• Expanding storage capacity in small-form-factor and compact cases
• Connecting internal optical drives such as DVD drives

Key specifications

• Brand: DELOCK
• Model / MPN: 90498
• EAN: 4043619904983
• Host interface: PCIe x4
• Number of internal SATA ports: 5
• SATA version / max transfer rate: up to 6 Gbit/s (SATA III)
• Form factor: Low profile
• Includes: SATA cables

How to use

Power down the PC and disconnect power. Install the card into an available PCI Express x4 (or higher) slot on the motherboard, secure it in the case using the bracket screw, and connect internal SATA drives to the card's SATA ports using the supplied SATA cables. Reconnect power and boot the system; drives should be recognized by the BIOS/operating system for partitioning and use.

Recommendations

Use the card in a PCIe x4 or higher slot for full bandwidth. Ensure your power supply can support additional drives and follow anti-static precautions during installation. For optimal performance, connect SATA III capable drives to utilize the full 6 Gbit/s transfer rate.
