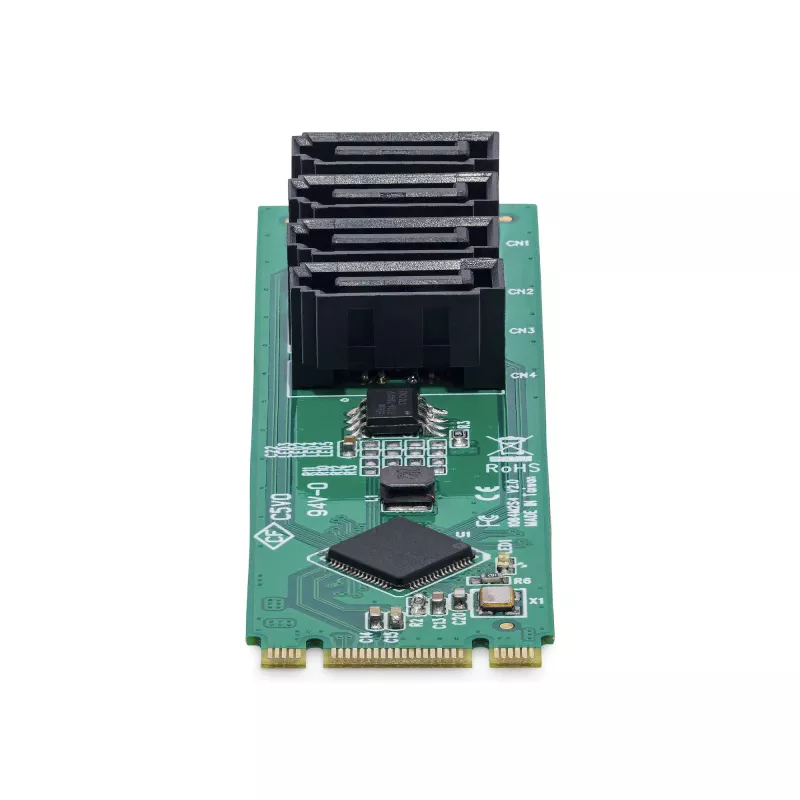

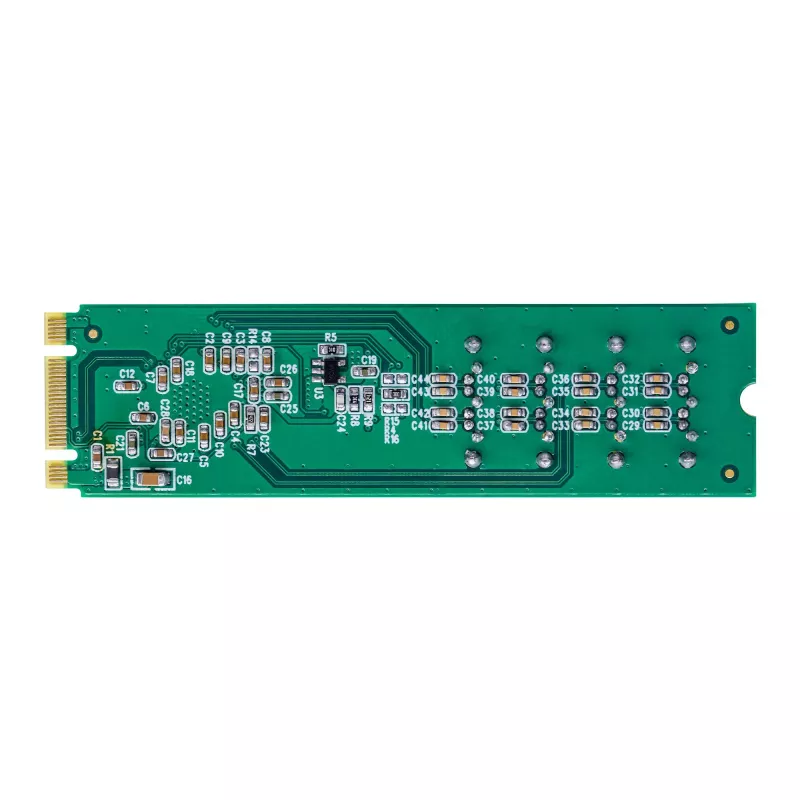

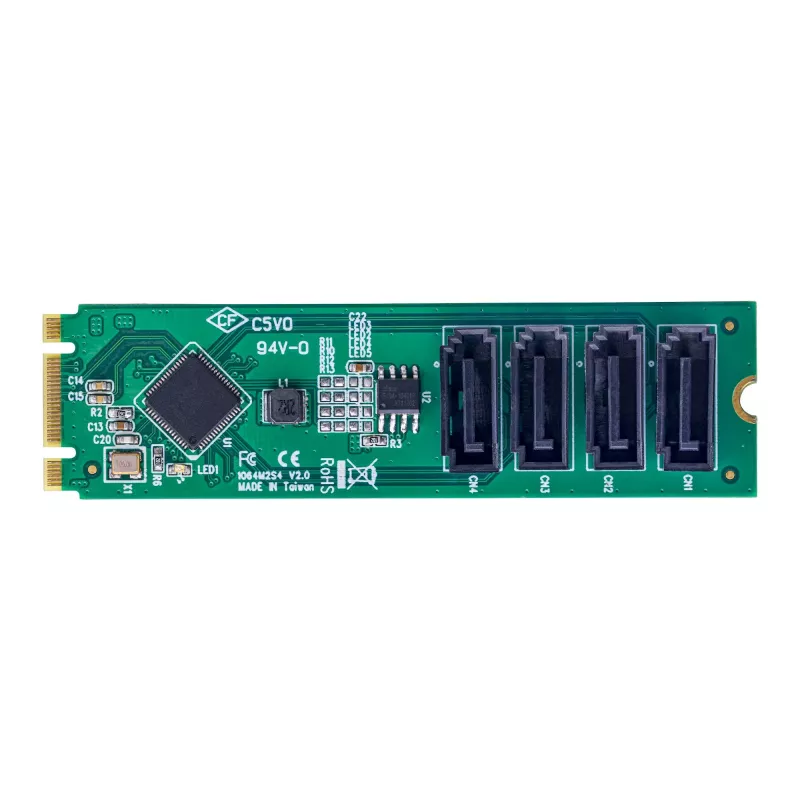

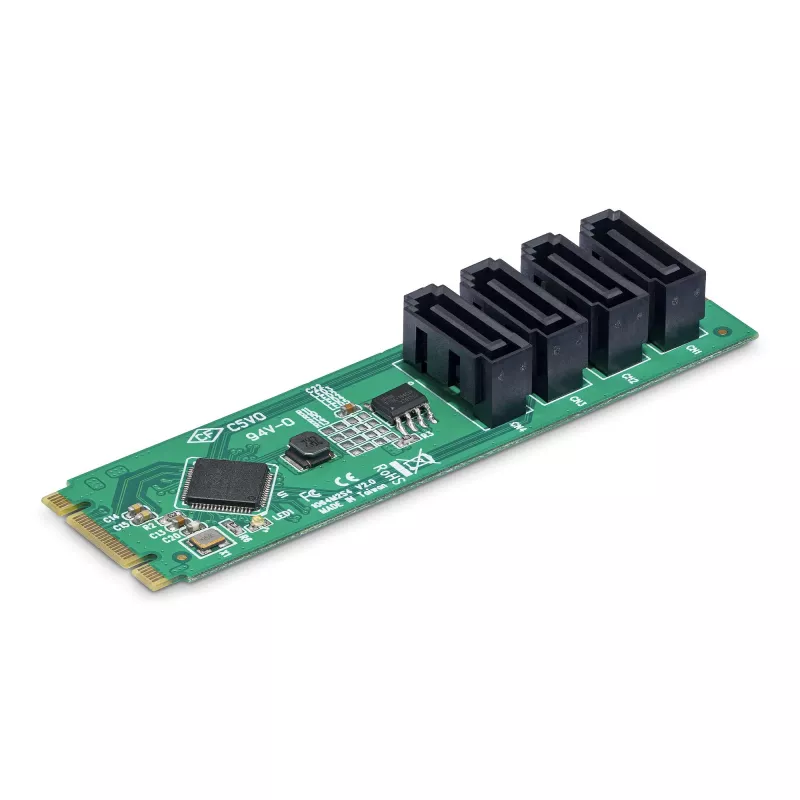

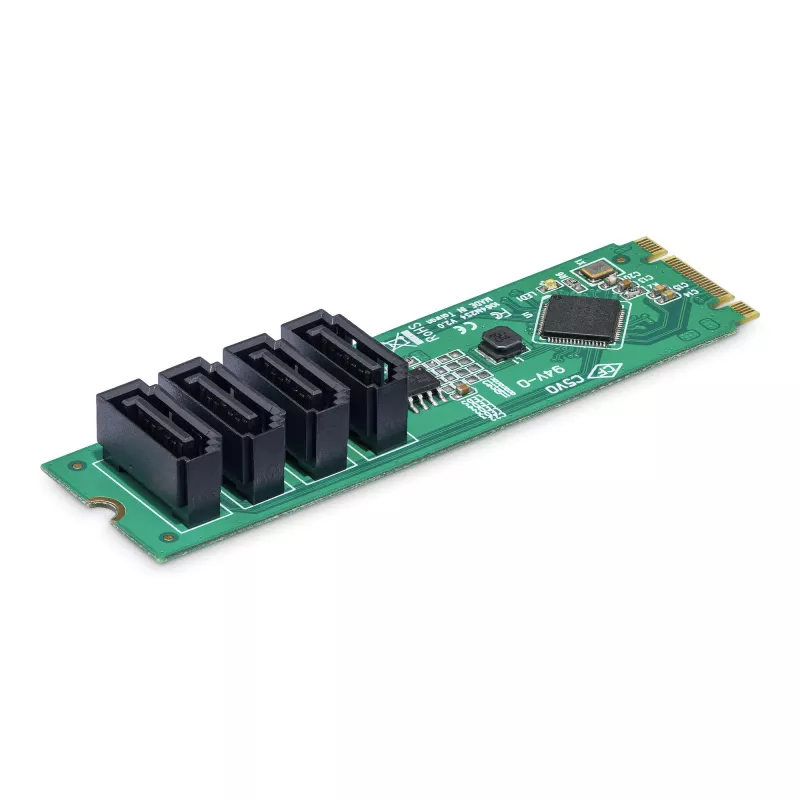

StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux

StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux
R1,133
Install four SATA drives via one M.2 slot for a high-density storage solutionAdd up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive.Cost-Effective Storage ExpansionThis setup can be used with modern motherboards or ext... Read More
Stock 6 Code 879789 Brand StarTech Model 4P-SATA-M2-ADAPTER Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Install four SATA drives via one M.2 slot for a high-density storage solution

Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive.

Cost-Effective Storage Expansion

This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation.

Compatibility

The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's Storage Spaces.

Applications

This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability is required.

ASMedia ASM1064 Chipset

The 4-Port M.2 NVMe to SATA Adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0.

Note: Only compatible with PCIe-based B-key or M-key M.2 drive slots

Note: Not compatible with SATA-based M.2 drive slots

The StarTech.com Advantage

StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux. Host interface: M.2, Output interface: SATA, Expansion card standard: PCI 3.0. Product colour: Green, LED indicators: Power, Mean time between failures (MTBF): 68555579 h. Chipset: ASMedia ASM1064. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma. Width: 22 mm, Depth: 80 mm, Height: 11 mm

Key Highlights
  • INCREASE STORAGE: Expand storage capacity and flexibility using minimal connections and the small M.2 footprint; Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot while maintaining SATA 6Gbps read/write speeds per drive
  • UNIVERSAL COMPATIBILITY: Drivers auto-install in most major operating systems including Windows 8 & up, macOS, and Linux; Compatible with all hardware platforms such as Intel/AMD; Supports software storage management including Storage Spaces (Microsoft)
  • APPLICATIONS: Use with modern motherboards or external enclosures that feature an M.2 slot to cost-effectively expand storage capabilities; Ideal for data storage, backups, NAS setups, photographers, videographers, and content creation
  • TECH SPECS: ASMedia ASM1064 chip supports TRIM, SMART data, SATA I/II/III, and PCI Express 3.0; Includes 4x 19.6in (50cm) SATA cables to connect the HDDs/SSDs; Compatible with PCIe-based B or M-key M.2 slots; NOTE: Not compatible with SATA M.2 drive slots
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 4-port M.2 to SATA Adapter Card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
  • Internal
  • Host interface: M.2
  • Output interface: SATA
  • S.M.A.R.T. support TRIM support
  • Green
Specifications
Cables included
SATA
Chipset
ASMedia ASM1064
Compliance certificates
RoHS
Depth
80 mm
Expansion card standard
PCI 3.0
Height
11 mm
Host interface
M.2
Hot-swap
Yes
Internal
Yes
Internal SATA ports quantity
4
LED indicators
Power
Linux operating systems supported
Yes
Mac operating systems supported
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Mean time between failures (MTBF)
68555579 h
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 70 °C
Output interface
SATA
Package depth
170 mm
Package height
30 mm
Package weight
142 g
Package width
142 mm
Port multiplier
Yes
Product colour
Green
S.M.A.R.T. support
Yes
Storage temperature (T-T)
-20 - 80 °C
TRIM support
Yes
User guide
Yes
Weight
8 g
Width
22 mm
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Leaflet

Open Leaflet

Manual

Open Manual
