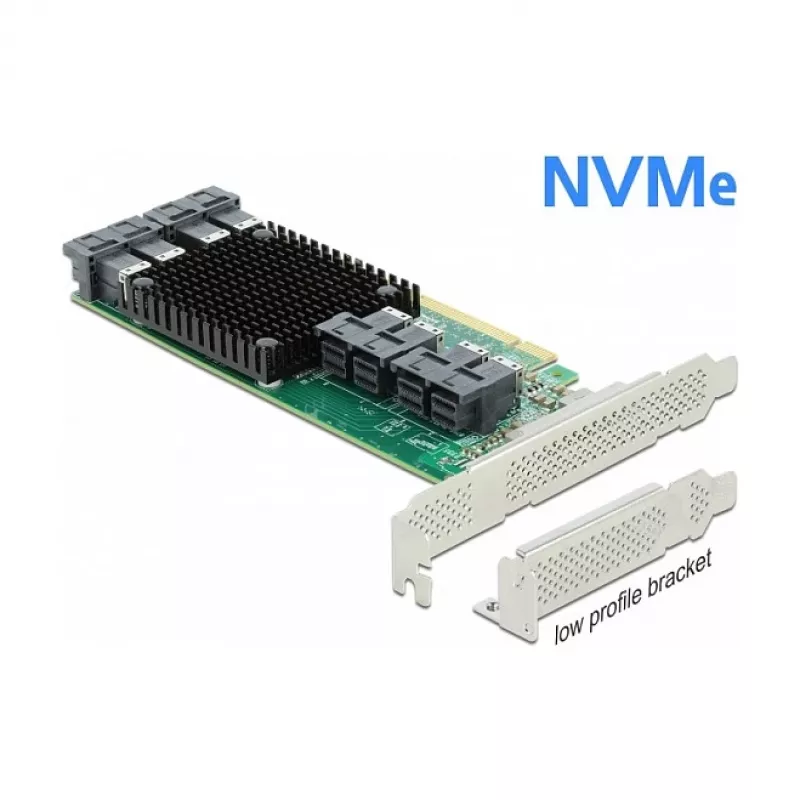

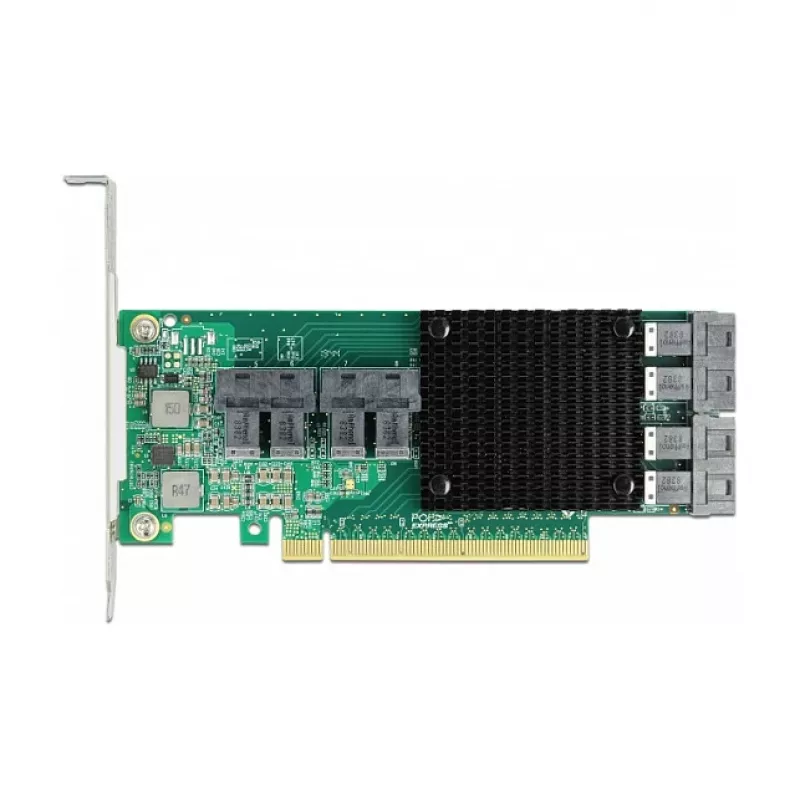

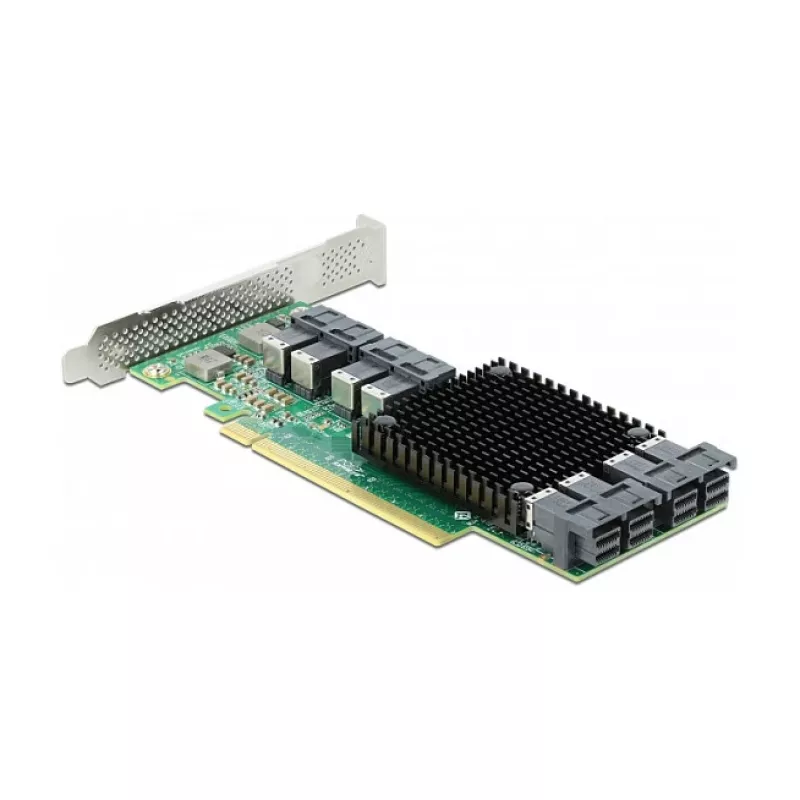

Internal Mini-SAS Adapter DeLOCK 90504

This Delock PCI Express card expands a computer with eight SFF-8643 ports, enabling connection of U.2 SSDs and other devices that use the SFF-8643 interface when used with appropriate cables. The card installs into a PCI Express slot and provides high-density internal connectivity for storage expansion.

Advantages

The card offers eight internal SFF-8643 interfaces on a single PCIe expansion card, simplifying connection of multiple U.2/mini-SAS devices. It supports standard PCI Express installation for compatibility with common desktop and server motherboards, and allows centralized management of several drive connections without occupying multiple controller ports.

Key specifications

How to use

Install the card into a free PCIe slot on the motherboard following standard anti-static and installation procedures. Connect each SFF-8643 port to a compatible U.2 SSD or other device using the appropriate cable (sold separately). Ensure the system BIOS/firmware and operating system recognise the connected drives and install any required drivers or controller software if needed.

Recommendations

Use compatible SFF-8643 to U.2 cables and verify motherboard PCIe lane availability for optimal performance. Check power and cooling requirements for multiple SSDs in the system and consult the SSD and motherboard documentation for configuration details.
