Interface adapter InLine 76619G — PCI/USB/serial connectivity module

Flexible storage expansion via PCIe x16 slot:Adds up to five SATA ports via M.2 Key B adapter cards – ideal for compact storage solutions.
High compatibility with M.2 SATA SSDs:Supports M.2 B-key and B+M-key SSDs in 2230, 2242, 2260, and 2280 form factors.
Modern SATA functionality:Support for AHCI, NCQ, port multiplier (Command/FIS), staggered boot, and power-saving modes.
Reliable data transfer:Up to 6 Gb/s per port according to SATA Revision 3.2 – ideal for performance-critical applications.

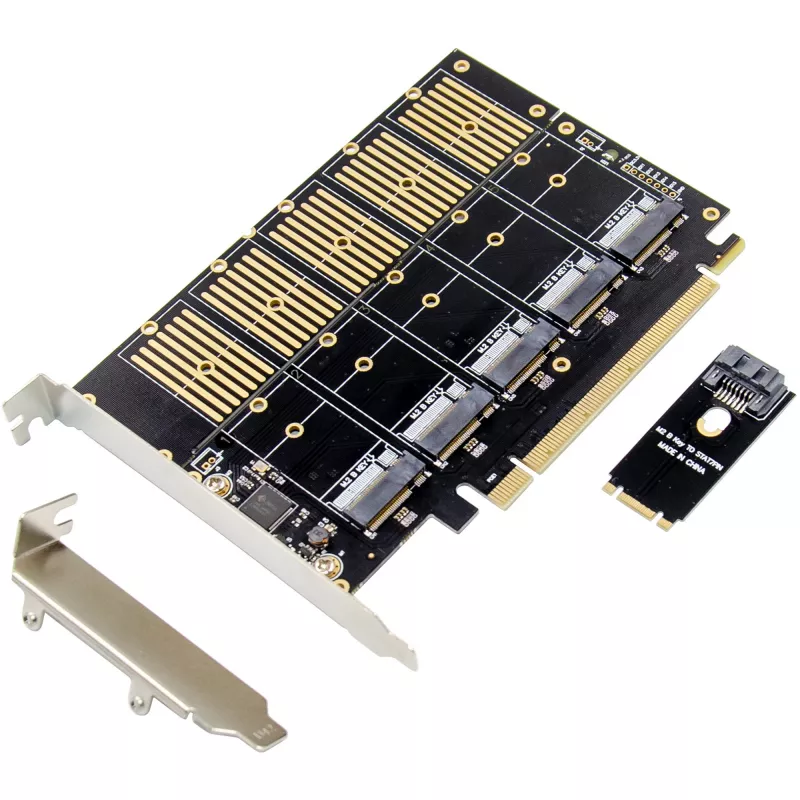

Includes accessories for immediate use:Supplied with five M.2-to-SATA adapters, heat sinks, cables, and low-profile metal plate – for versatile installation scenarios.

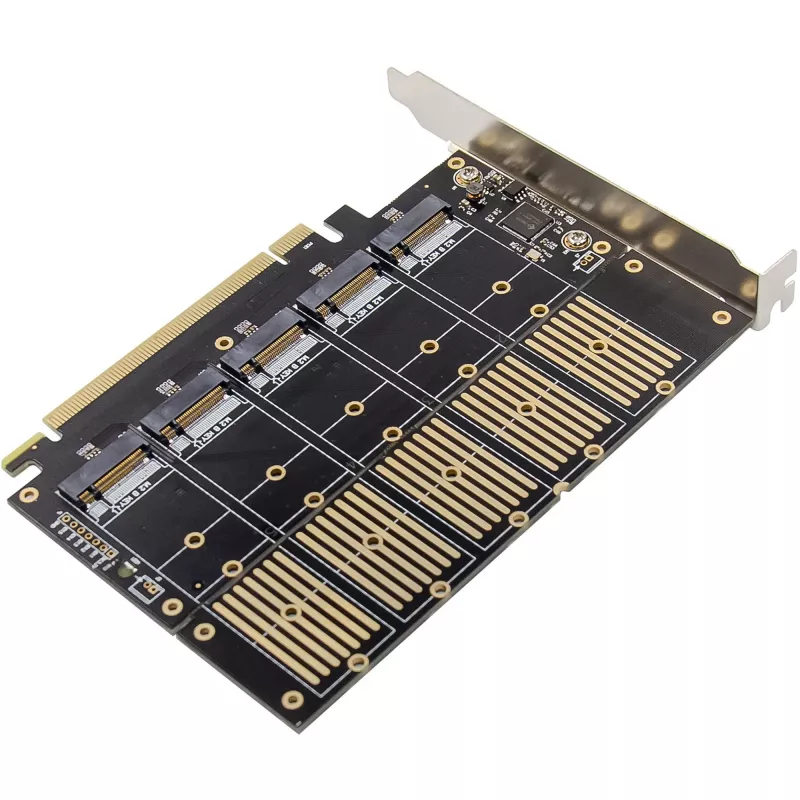

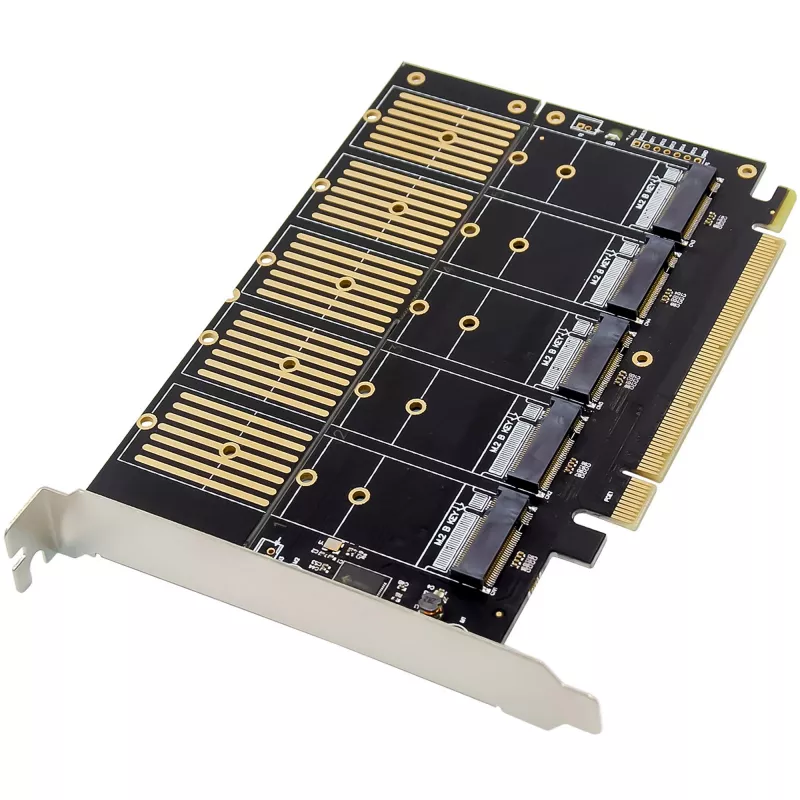

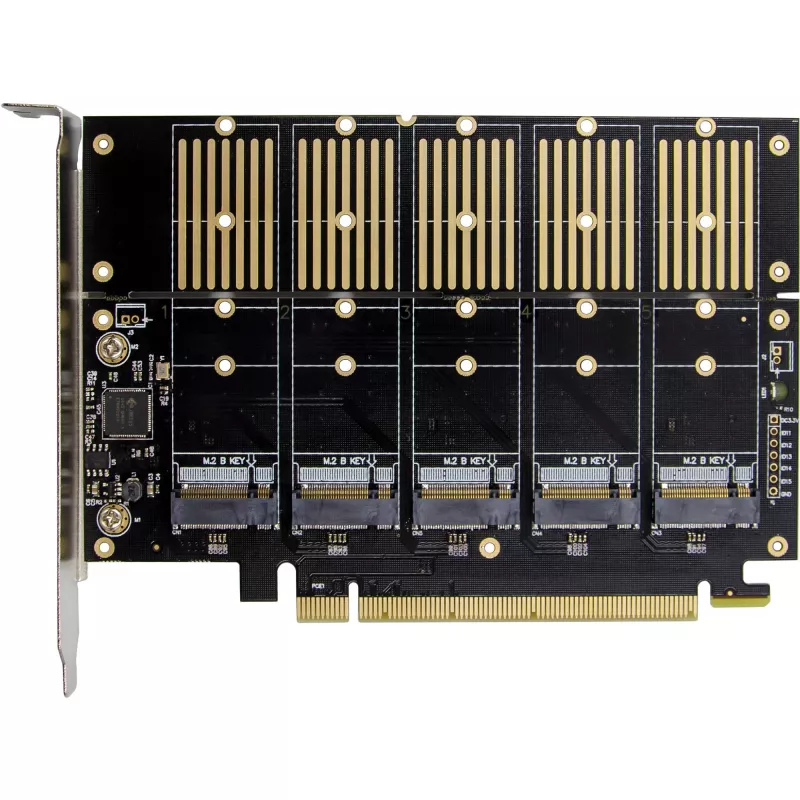

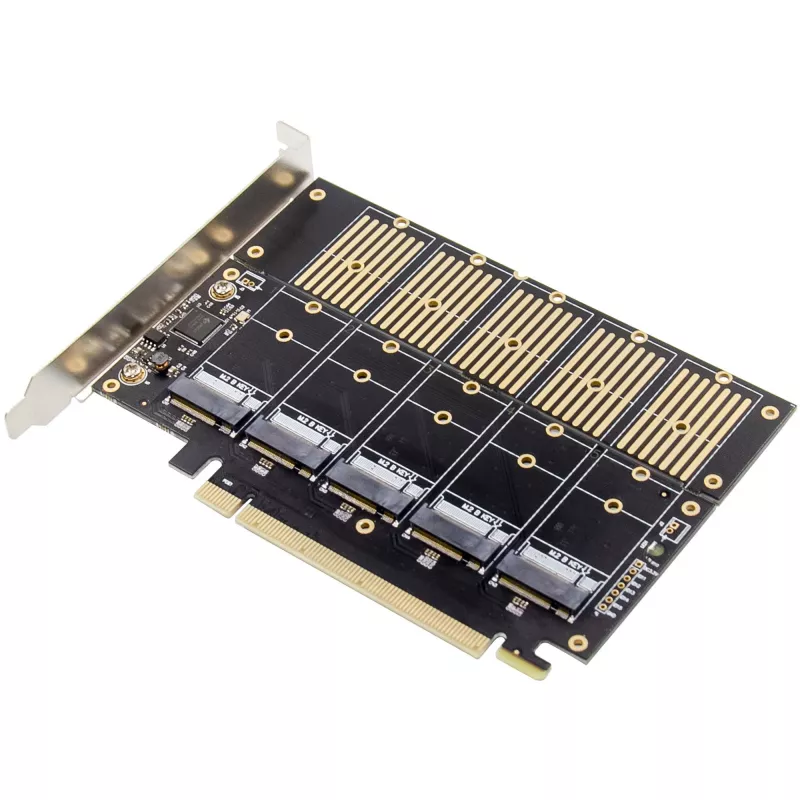

The InLine PCIe interface card with JMB585 controller is the ideal solution for expanding your system with up to five additional SATA ports. The card uses a PCIe x16 interface, with two PCIe lanes available according to standard 3.1a for maximum bandwidth. The included adapter cards allow M.2 SATA SSDs with Key B or B+M to be securely and efficiently integrated into existing storage systems.
All common form factors such as 2230, 2242, 2260, and 2280 are supported – perfect for compact and powerful storage solutions. Each of the five interfaces delivers up to 6 Gb/s according to SATA 3.2. In addition, important functions such as AHCI, Native Command Queue (NCQ), port multiplication, and power-saving modes (slumber/partial) are supported.
The card is ideal for servers, workstations, or powerful desktop systems that require additional storage space or special RAID setups. Thanks to staggered boot-up and supported command structure, the system remains stable even with multiple drives. Installation is simple: just plug in the PCIe card and connect the adapters to M.2 SSDs. The scope of delivery includes all necessary cables, heat sinks, a low-profile bracket, and a screwdriver – for immediate and flexible use.

PCIe standard: PCIe v3.1a, up to 2 PCIe lanes usable
Interface: PCIe x16 lane
SATA standard: SATA 6 Gb/s, SATA Revision 3.2
Connections: 5x M.2 Key B ports (via expansion cards)
Compatible SSD types: M.2 B-Key and B+M-Key (2230 / 2242 / 2260 / 2280)
Transfer rate: up to 6 Gb/s per port
Chipset: JMB585
Port multiplication: Supported (command and FIS-based)
AHCI mode: Supported (standard protocol for SATA SSDs/HDDs)
Native Command Queue (NCQ): Supported
SATA power-saving features: Supported (partial / slumber)
Staggered boot: Supported
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90%, non-condensing
Supported operating systems: Windows 7 / 8 / 8.1 / 10 / 11, Linux

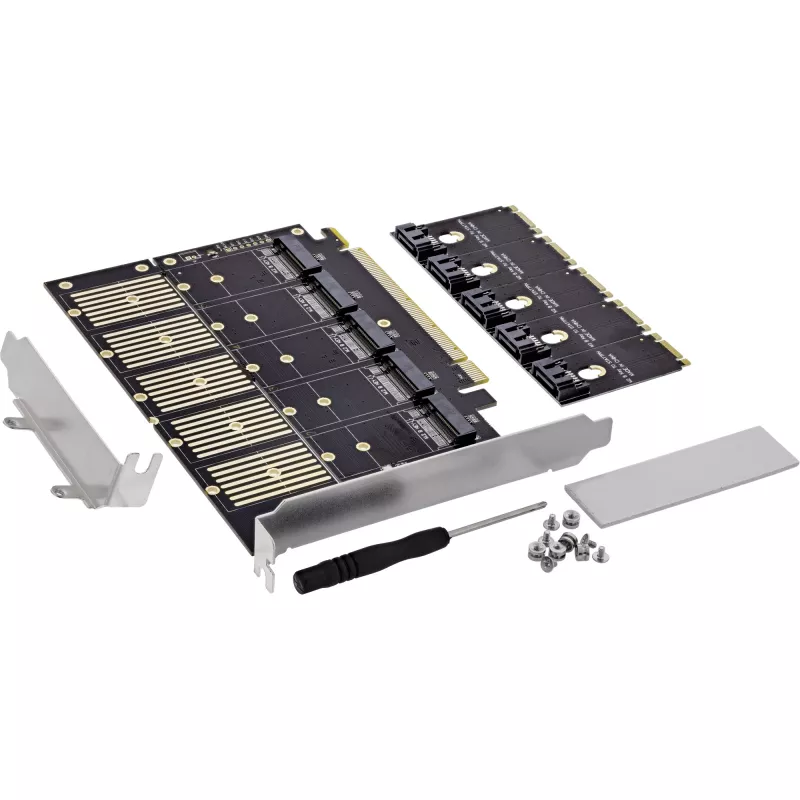

Scope of delivery:

1x InLine PCIe x16 interface card, 5x M.2 Key B SATA
1x low-profile slot bracket
5x M.2 Key B to SATA expansion card
5x SATA cables
5x heat sinks
5x screws
1x screwdriver
1x user manual in German/English

InLine 76619G. Host interface: PCIe, Output interface: M.2, SATA, Host interface gender: Male. Chipset: JMB585, Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1. Width: 165 mm, Height: 120 mm, Weight: 2 kg. Cables included: SATA, Package weight: 73 g, Package volume: 700 cm³

How to use

Power down the host system and insert the card into an available PCIe x16 slot. Attach the supplied M.2-to-SATA adapter cards to the M.2 SATA SSDs (B-key or B+M-key) in the appropriate form factor, secure heat sinks and fasten the adapters into the card. Connect each adapter to the card with the provided SATA cables, attach the low-profile bracket if needed, then power on the system. Install any required drivers or let the operating system detect the new AHCI-compatible storage devices.

Recommendations

Use compatible M.2 SATA SSDs (B-key or B+M-key) in supported sizes and ensure adequate cooling for multiple drives. For systems with many active ports, verify power and airflow in the chassis and use supported operating systems for optimal stability when using port multiplication or RAID configurations.
