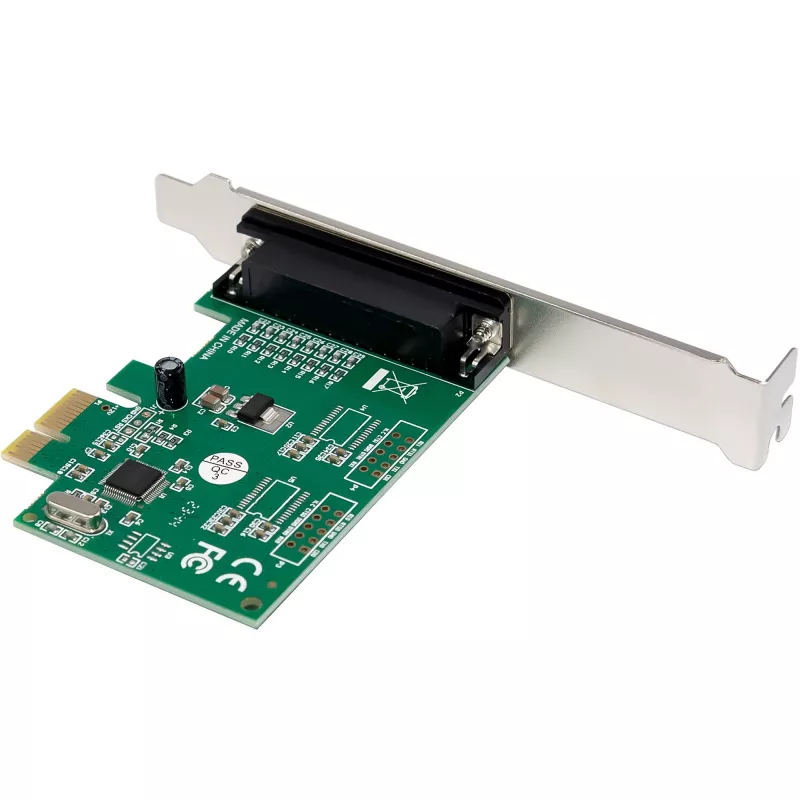

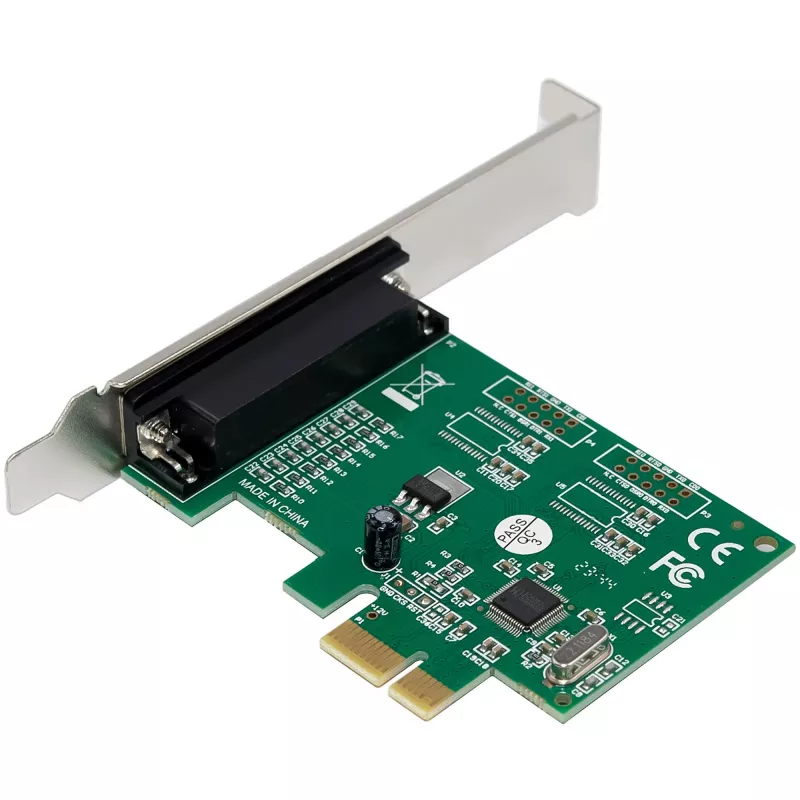

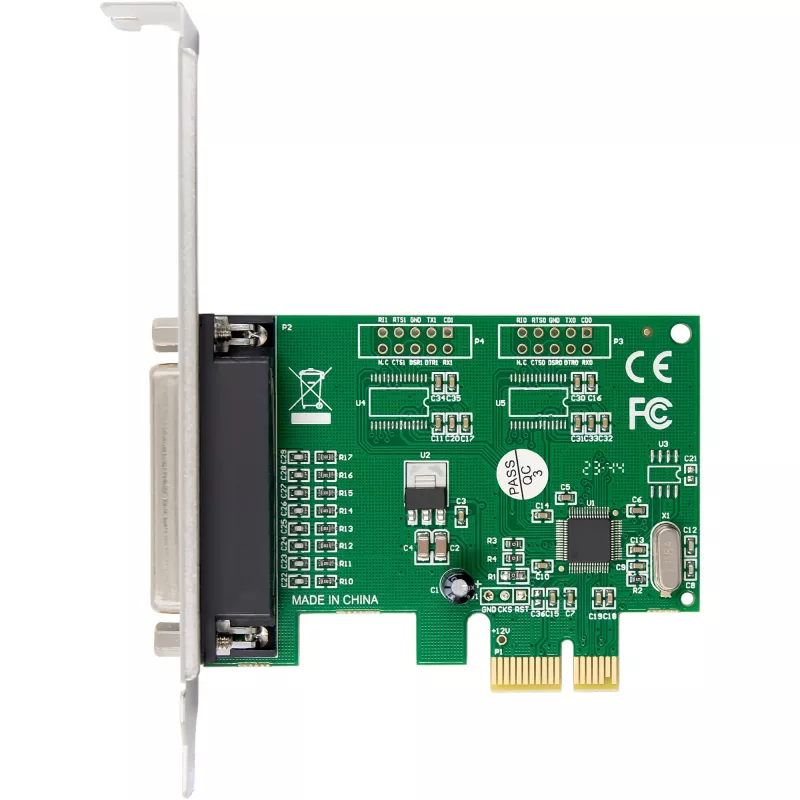

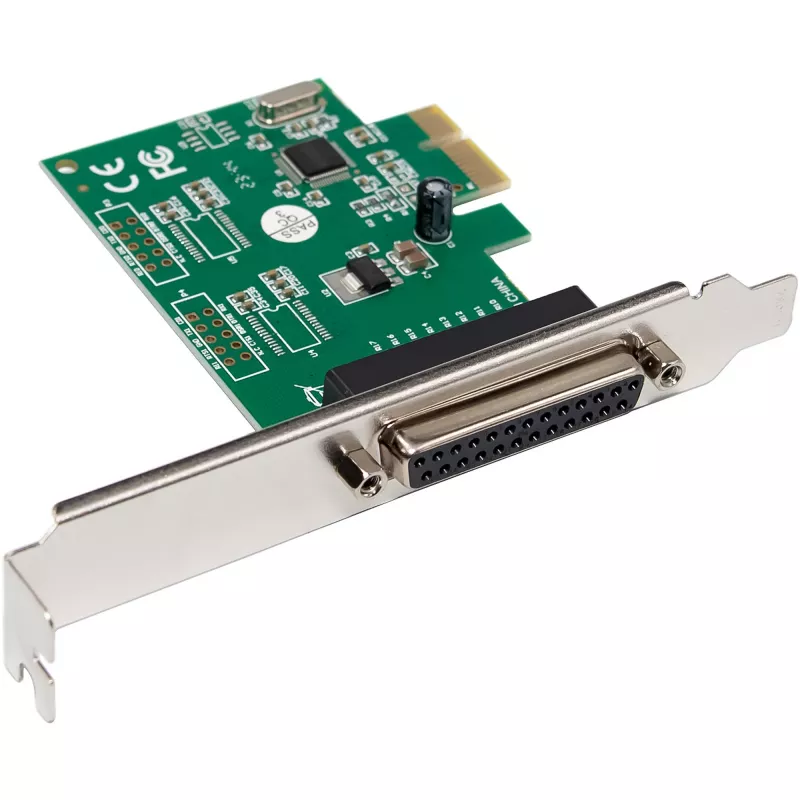

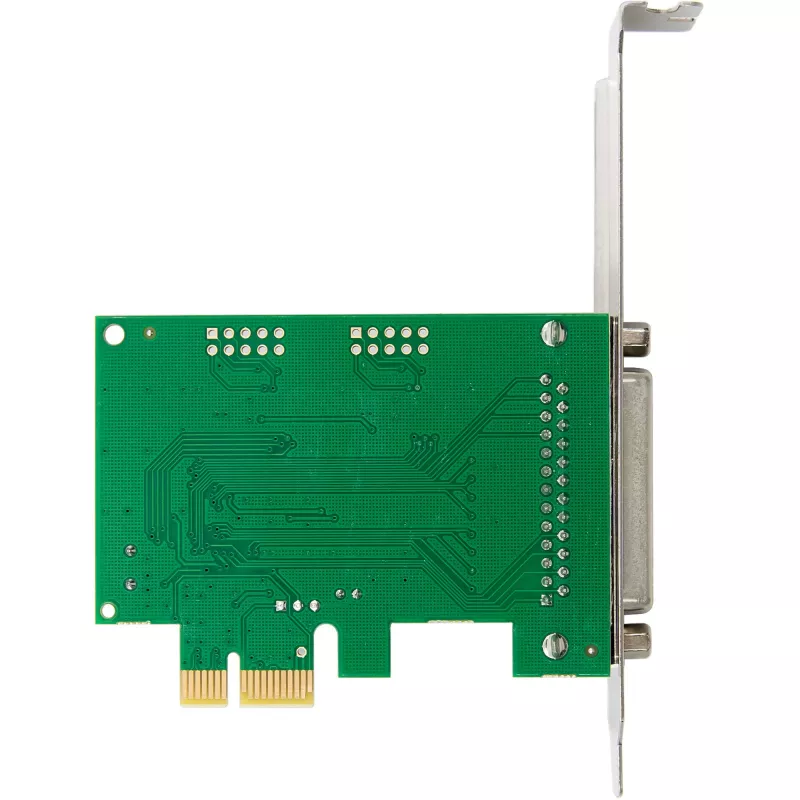

Internal Parallel Adapter InLine 76625E PCIe Male WCH CH382L

Addition of a parallel DB25 portfor connecting printers, scanners and other peripheral devices
PCIe x1 interface(compatible with x1, x4, x8 and x16 slots)
Bidirectional data transferfor efficient communication between devices
Supports SPP, EPP and ECP(IEEE 1284-compliant)

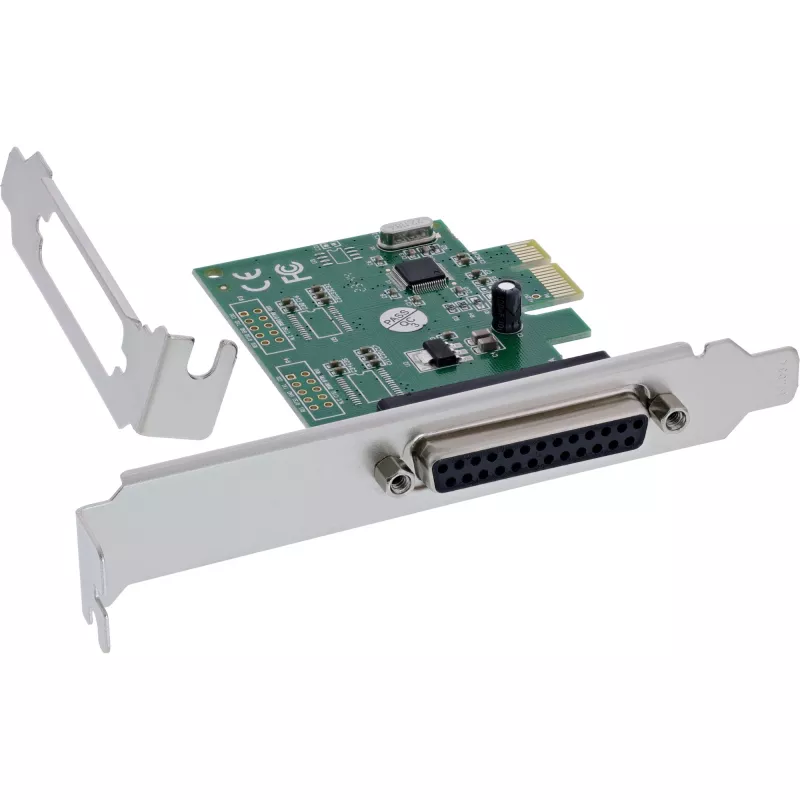

Low-profile formatwith low-profile slot bracket for compact systems

The InLine® PCIe interface cardadds a powerful 25-pin parallel DB25 portto your PC. It enables reliable, bidirectional data transmissionand is ideal for connecting printers, scanners or other parallel port devices.
Thanks to the PCI Express x1 interface (v1.1), the card is compatible with x1, x4, x8 and x16 slotsand can be easily integrated into modern computer systems. The 256-byte FIFO bufferensures smooth and fast transfer with a data transfer rate of up to 1.5 MB/s.
Technical data:

Bus type & PCIe: PCIe v1.1 (2.5 GT/s) x1 lane (compatible with x1, x4, x8, x16 slots)
Connector: 1 x 25-pin parallel connector (DB25)
Chip set: WCH CH382L
Duplex mode: Bidirectional transmission
FIFO buffer: 256 bytes
Form factor: Low Profile
Dimensions: 85 mm x 60 mm (PCIe board)

Supported protocols & compatibility:

IEEE 1284 compliant, supports SPP, EPP and ECP

Data transfer rate:

Up to 1.5 MB/s - efficient, bidirectional LPT data transfer

Operating system support:

Windows: 11, 10, 8, 7, Vista, XP
Windows Server: 2003, 2008
Linux: from kernel version 2.4

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %

Scope of delivery:

1x InLine® interface card, 1x parallel 25-pin, PCIe
1x low-profile slot bracket
1x driver CD
1x user manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76625E. Host interface: PCIe, Output interface: Parallel, Host interface gender: Male. Country of origin: Taiwan. Chipset: WCH CH382L, Data transfer rate (max): 0.0015 Gbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2003, Windows Server 2008. Width: 85 mm, Depth: 60 mm

How to use

Power off the PC and insert the card into an available PCIe x1 (or compatible) slot. Secure the low-profile bracket if required for a small form-factor case. Boot the system and install drivers from the included CD or obtain up-to-date drivers from the manufacturer's site. Connect the parallel peripheral to the DB25 port and configure the device in the operating system’s device manager or printer/scanner settings as needed.

Recommendations

Use shielded parallel cables and ensure firm connector seating for reliable data transfer. For best results with legacy printers and industrial equipment, install the most recent drivers compatible with your operating system and verify IEEE 1284 mode settings (SPP/EPP/ECP) according to the peripheral’s requirements.
