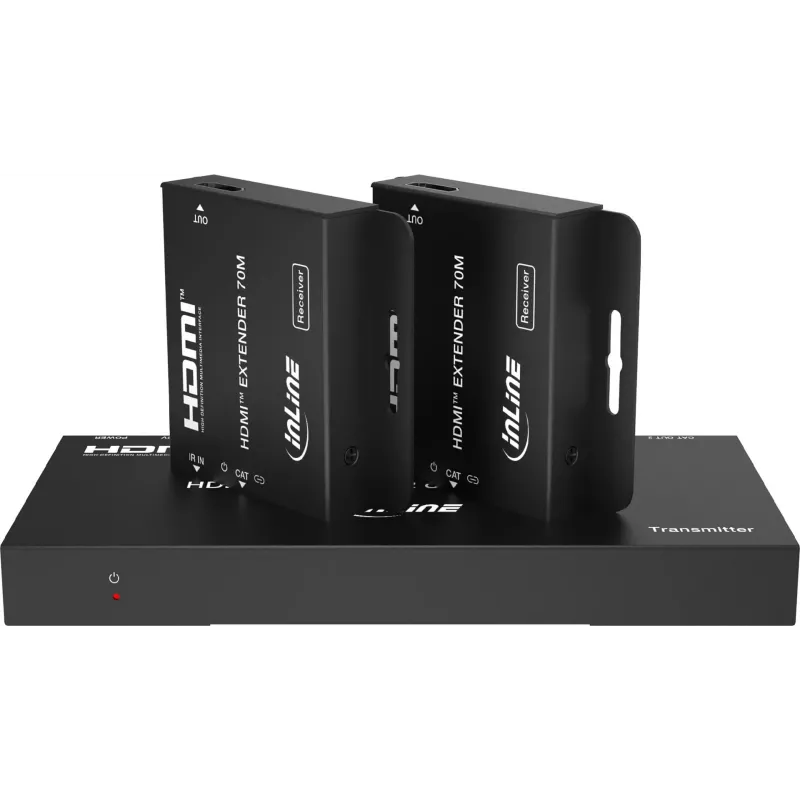

InLine® Video Splitter/Extender 1x2 Cat.6 HDMI 4K/30Hz Set

Distribute a single 4K HDMI source to two remote displays up to 30 metres away over cost-effective Cat.6 cabling, with zero signal degradation and full HDCP 1.4 compliance. The InLine® 57886A splitter/extender set includes one transmitter and two receivers, each powered by its own 5V adapter, making it a complete solution for digital signage, conference rooms, and home theatre installations.

Overview

This HDMI extender splitter accepts one HDMI input and simultaneously outputs the signal to two remote locations via standard Cat.6 UTP/STP network cables. The transmitter also features a local HDMI loop-out for monitoring or connecting a nearby display. With support for 4K Ultra HD resolution at 30Hz and a 10.2 Gbps video bandwidth, it delivers crisp, detailed images even over long distances. The automatic EDID management ensures seamless compatibility between source and displays, while the metal housings provide durability and efficient heat dissipation.

What stands out

• Extends and splits one HDMI signal to two displays up to 30m over Cat.6 cable
• Supports 4K@30Hz resolution with HDMI 1.4 and HDCP 1.4
• Includes local HDMI loop-out on transmitter for monitoring
• Complete set: 1 transmitter, 2 receivers, 3 power adapters
• Supports LPCM, DTS Digital, and Dolby Digital audio formats
• Metal housing with LED indicators for power and link status

Technical details

• Input: 1x HDMI Type A female
• Transmitter outputs: 1x HDMI Type A female (loop-out), 2x RJ45 female
• Receiver output: 1x HDMI Type A female per receiver
• Maximum resolution: 3840x2160 @ 30Hz
• Maximum transmission distance: 30m (100ft)
• Transmission medium: Cat.6 UTP/STP Ethernet cable
• HDMI version: 1.4
• HDCP version: 1.4
• Video bandwidth: 10.2 Gbps
• Color depth: 8-bit
• Audio formats: LPCM, DTS Digital, Dolby Digital
• EDID management: Automatic
• Power supply: DC 5V/1A for each unit
• Housing material: Metal
• LED indicators: Power, Link
• Operating temperature: 0°C to 40°C
• Set contents: 1x transmitter, 2x receivers, 3x power adapters, user manual

Our verdict

The InLine® 57886A is a reliable and cost-efficient way to extend and duplicate 4K HDMI signals over long distances using existing network infrastructure. Its plug-and-play design and complete accessory set make it an excellent choice for professional AV installations.
