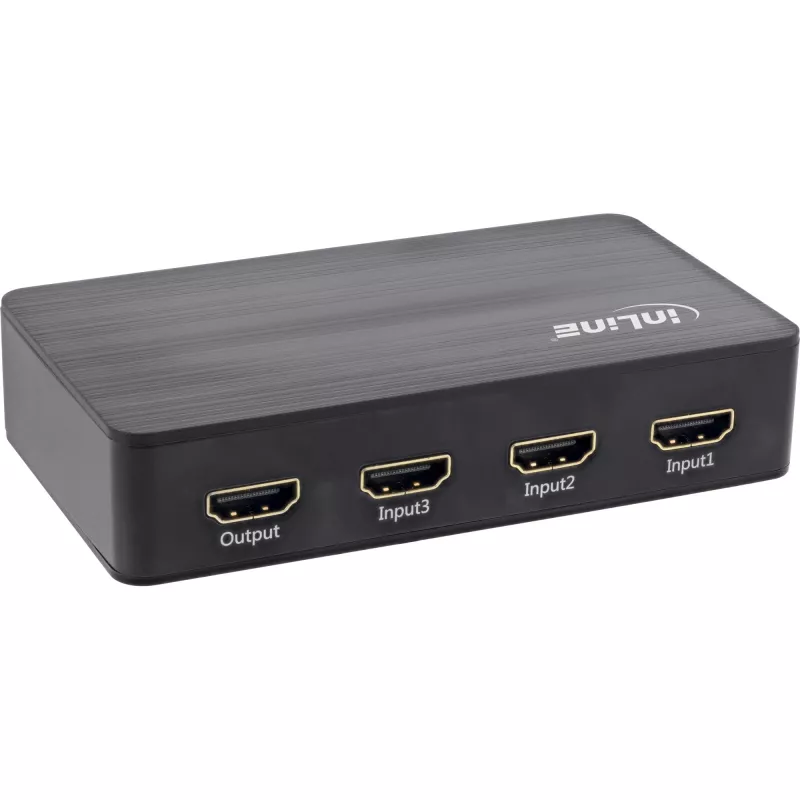

InLine HDMI Switch, 3 port, 4K2K@60Hz, HDCP 2.2

The InLine HDMI Switch 3 port 4K2K@60Hz HDCP 2.2 lets you connect up to three HDMI sources (for example DVD player, Blu‑Ray player, game consoles) to a single display such as a TV, monitor or beamer. The switch supports 4K resolution at 60 Hz with HDCP 2.2 compliance and a 6 Gbit/s bandwidth in a compact black housing, allowing straightforward integration into home or office AV setups.

Advantages

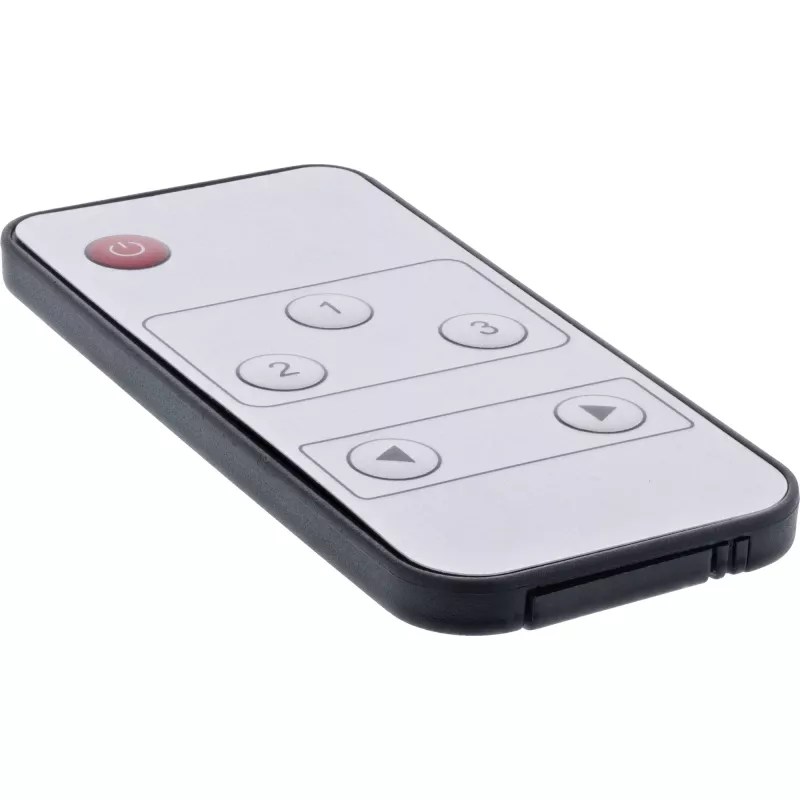

This HDMI switch provides three HDMI inputs with one HDMI output, supports 4K@60Hz video and HDCP 2.2 for protected content playback, and offers a 6 Gbit/s bandwidth for smooth video transmission. Device selection can be made via the front-panel button or the included remote control, simplifying source switching without reconnecting cables. The compact black design fits easily into media cabinets or desktop arrangements.

Suitable for (tasks / use cases)

• Connecting multiple media players to a single TV or monitor
• Switching between game consoles and streaming devices
• Use in small meeting rooms or classrooms with one projector

Key specifications

• Ports: 3× HDMI input, 1× HDMI output
• Resolution support: up to 4K2K @ 60 Hz
• HDCP: 2.2 compliant
• Bandwidth: 6 Gbit/s
• Colour: Black

How to use

Connect up to three HDMI source devices to the HDMI input ports and connect the HDMI output port to your display device. Power the switch if a separate power adapter is required (check the device for a power input). Select the active source using the front-panel button or the supplied remote control. The switch will route audio and video from the selected input to the connected display.

Recommendations

For reliable 4K@60Hz performance use high-speed HDMI cables rated for 18 Gbit/s or higher and ensure source devices and the display support HDCP 2.2. Place the switch in a ventilated location and avoid bending HDMI cables sharply to maintain signal integrity.
