InLine HDMI Switch 5 port 4K2K@60Hz HDCP 2.2 Black

The InLine HDMI Switch 5 port 4K2K@60Hz HDCP 2.2 Black allows connecting up to five HDMI source devices (for example DVD or Blu‑Ray players, game consoles, set‑top boxes) to a single HDMI display such as a TV, monitor or projector. The compact switch supports 4K2K resolution at 60 Hz with HDCP 2.2 compatibility and a maximum bandwidth of 6 Gbit/s, providing a simple way to consolidate multiple HDMI inputs into one output.

Advantages

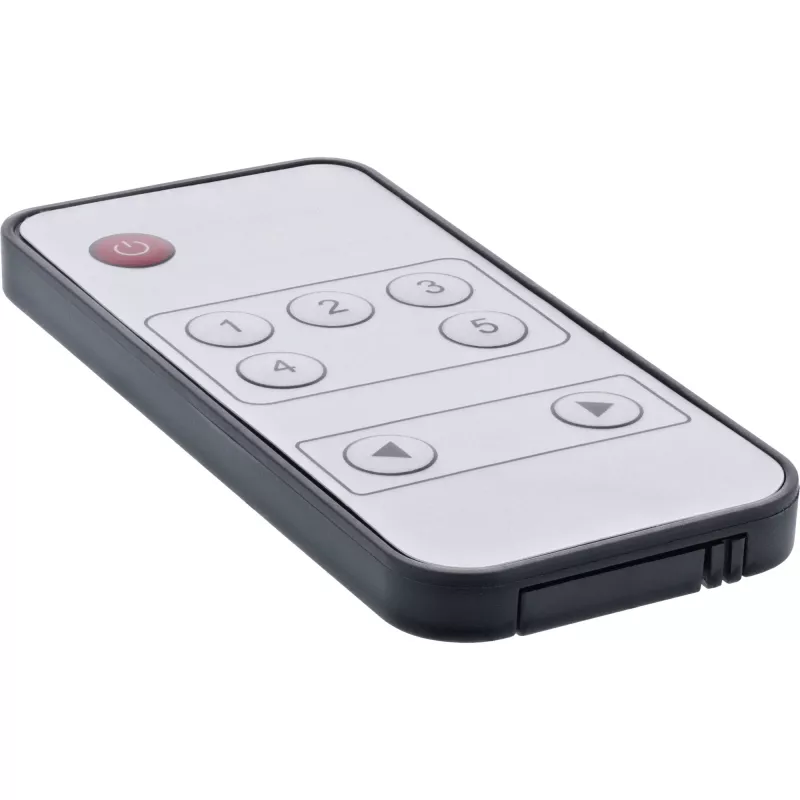

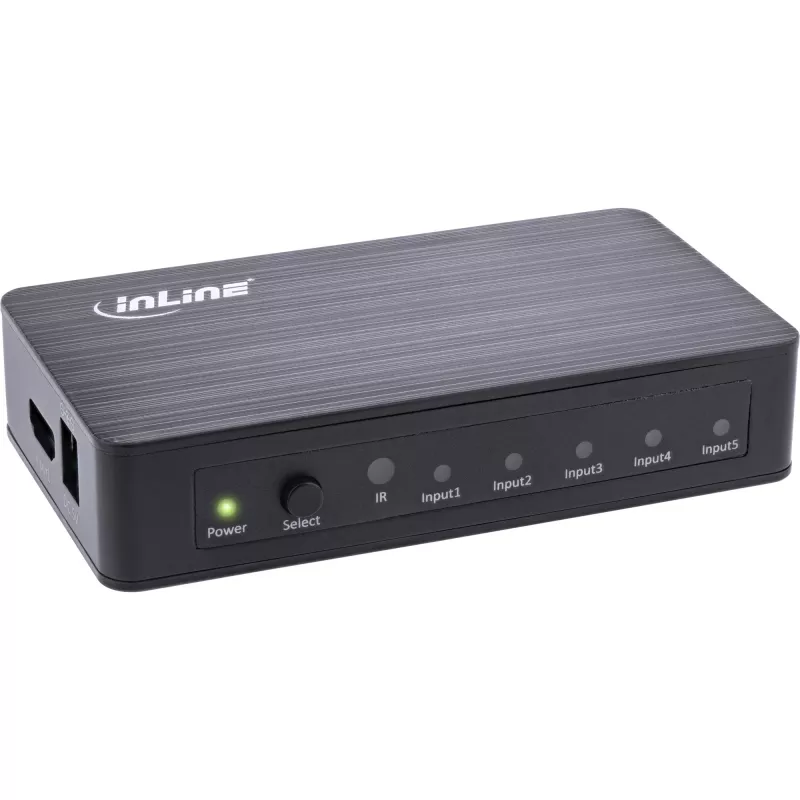

This 5‑port HDMI switch supports 4K2K@60Hz and HDCP 2.2 for compatibility with modern UHD sources and displays. Its compact black housing (117 mm x 65 mm x 28 mm) fits into small AV setups. Input selection can be performed via the front panel button or the supplied remote control, enabling convenient switching between connected HDMI devices. The product is designed for straightforward installation and operation.

Suitable for

• Connecting multiple media players to a single TV or monitor
• Home entertainment systems with game consoles and Blu‑Ray/DVD players
• Small office or meeting-room setups with one projector or display

Key specifications

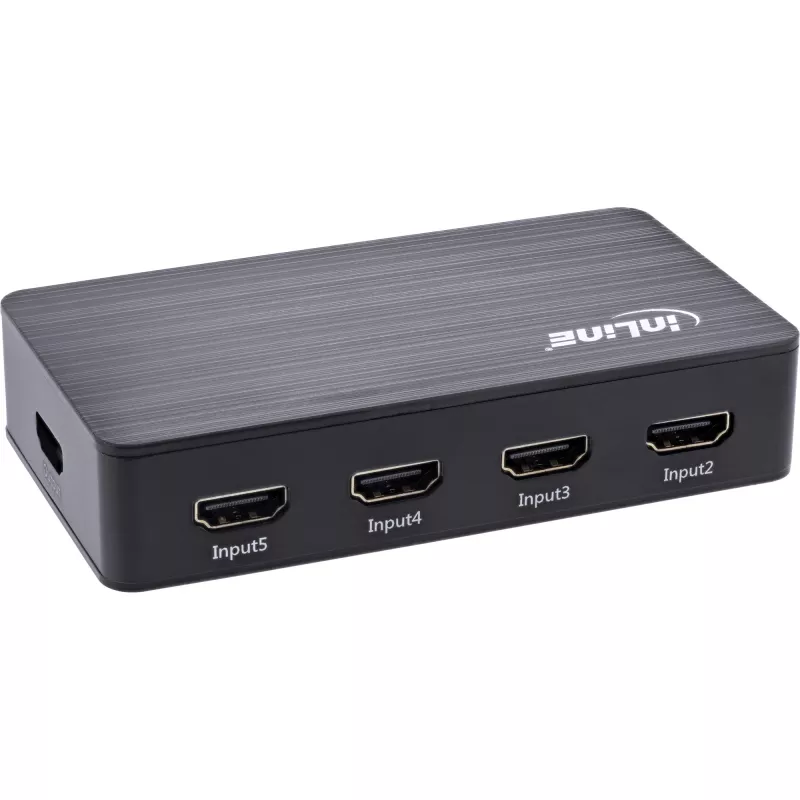

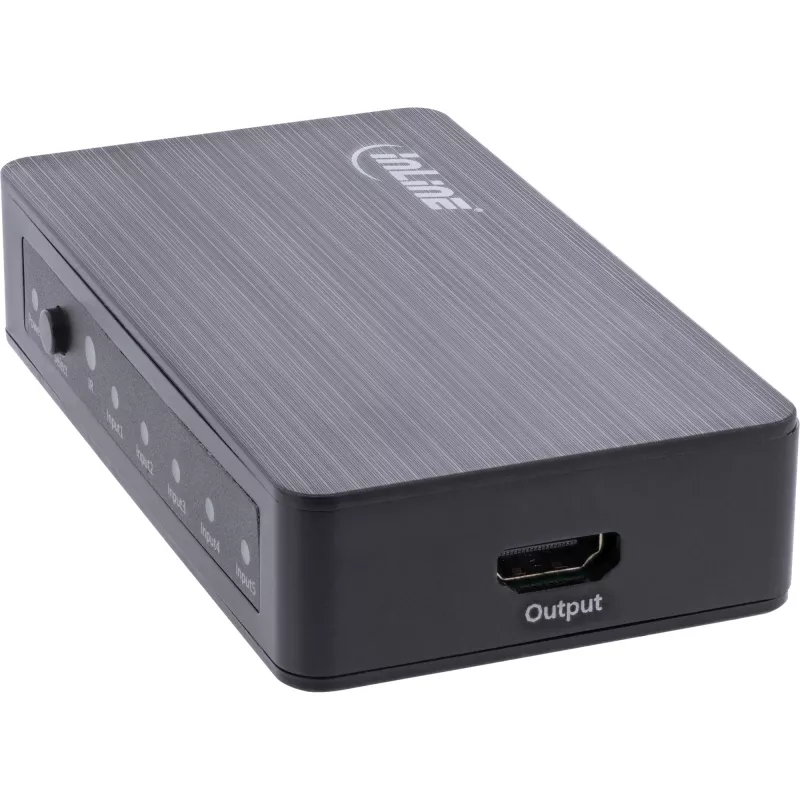

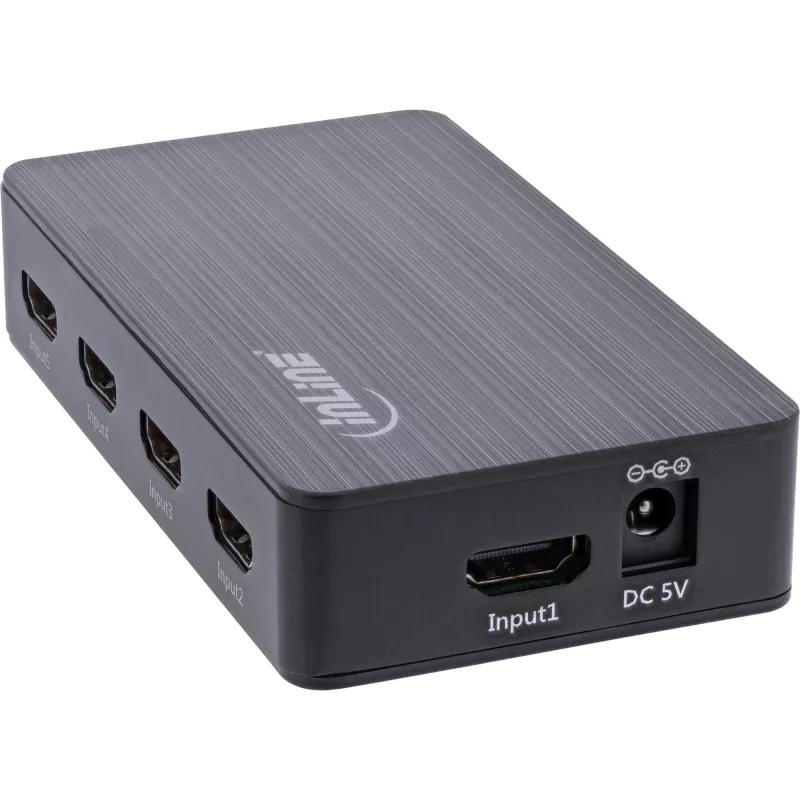

• Ports: 5 HDMI inputs, 1 HDMI output
• Supported resolution: up to 4K2K @ 60 Hz
• HDCP version: 2.2
• Bandwidth: 6 Gbit/s
• Colour: Black
• Dimensions: 117 mm x 65 mm x 28 mm
• Brand: InLine, MPN: 65019, EAN: 4043718303045

How to use

Connect each HDMI source device to one of the five HDMI input ports and connect the HDMI output port to your display device. Power on the sources and the display. Use the front‑panel button or the included remote control to select the active input. The switch handles HDCP authentication and transmits the selected source to the connected output at the supported resolution and refresh rate.

Recommendations

For reliable operation at 4K@60Hz with HDCP 2.2, use high‑quality HDMI cables rated for the required bandwidth and ensure source and display devices also support the targeted resolution and HDCP version.
