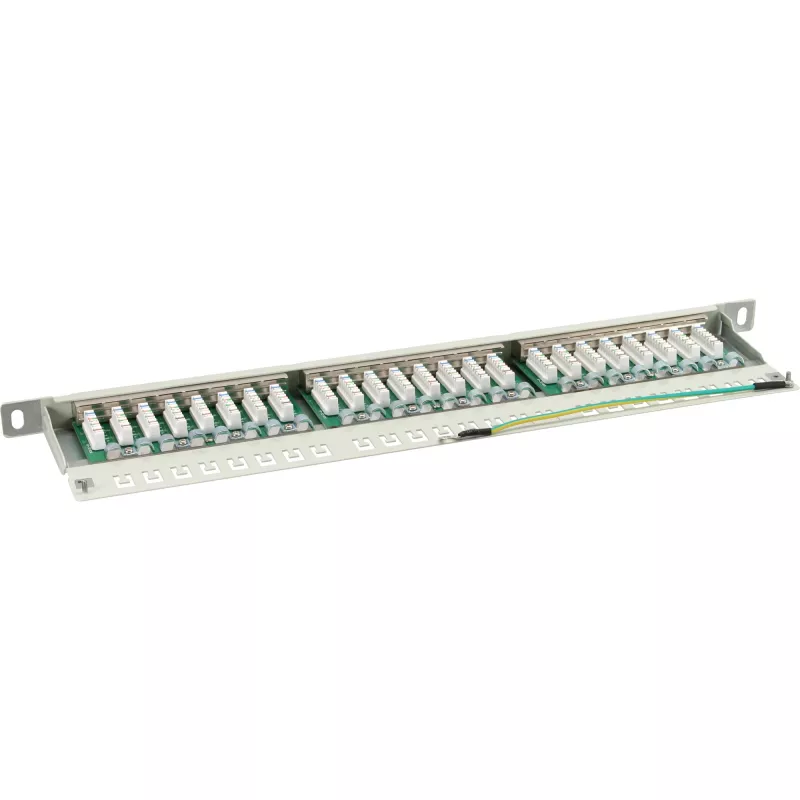

InLine Patch Panel Cat.6 24 Port 19 inch 0.5U light grey RAL7035

The InLine Patch Panel Cat.6 24 Port 19" 0.5U Light Grey RAL7035 provides 24 RJ45 ports arranged on a half-height (0.5U) 19" panel. It supports up to Category 6 cabling, features fully shielded construction and LSA insulation displacement connectors for connecting up to 24 installation cables. Numbered RJ45 ports and a housing with rear knurled screws allow straightforward access and organized rack installation.

Advantages

The patch panel is fully shielded and rated for Cat.6, offering reliable performance for structured cabling. Its 0.5U half-height design lets you double port density by installing two panels in a single 1U space, saving rack space. LSA insulation displacement connectors simplify termination without soldering, and consecutively numbered RJ45 ports improve cable identification and management.

Suitable for

• Rack-mounted network installations in server rooms and data centers
• Structured cabling for Cat6 Ethernet networks
• Cable management where space-saving 0.5U solutions are required

Key specifications

• Brand: InLine
• Model / MPN: 76224A
• EAN: 4043718197576
• Ports: 24 RJ45 (numbered)
• Standard: Up to Cat.6
• Connector type: LSA insulation displacement
• Shielding: Fully shielded
• Rack size: 19" half height (0.5U)
• Color: Light Grey (RAL7035)

How to use

Mount the patch panel into a 19" rack using suitable rack screws. Terminate each Cat6 installation cable into the LSA insulation displacement connectors following the panel numbering for consistent port assignment. Close the housing and secure it with the rear knurled screws; reopen when necessary for maintenance or cable reconfiguration.

Recommendations

For optimal performance, use Cat6-rated cables and maintain correct cable pair untwisting lengths during termination. Install two 0.5U panels to achieve 48 ports in 1U when higher port density is required. Ensure proper grounding of the shielded panel within the rack.
