InLine Patch Panel Cat.6 16 Port 19 inch 1HE light grey RAL7035

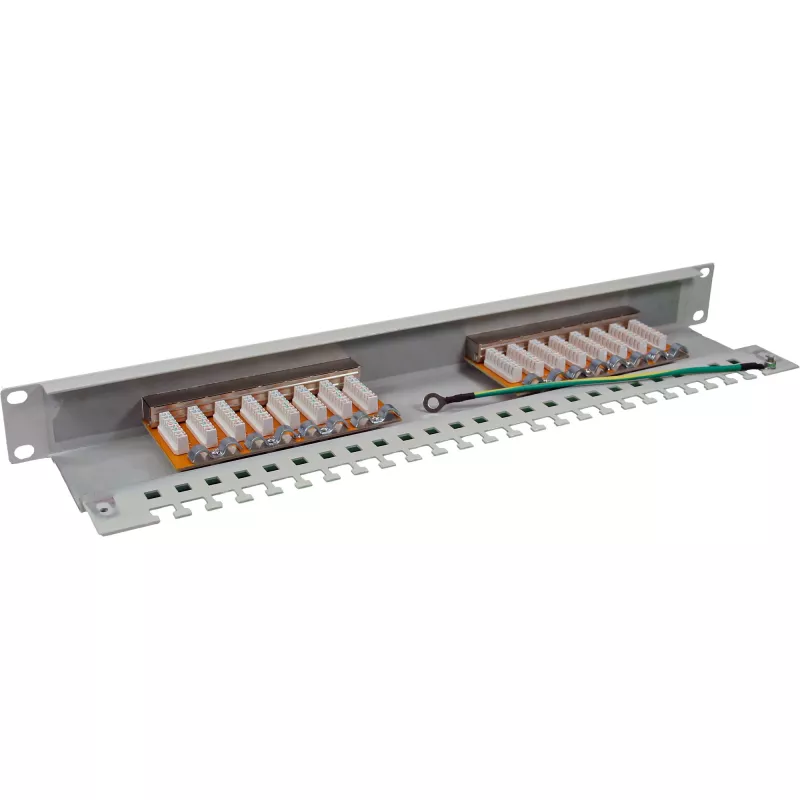

The InLine Patch Panel Cat.6 16 Port 19" 1HE in light grey RAL7035 is a 1U rack-mounted patch panel that provides 16 numbered RJ45 ports and LSA clamping plates for terminating up to 16 installation cables. The panel is fully shielded and designed for Cat.6 installations, offering a compact solution for organizing Ethernet connections in server rooms, racks and data cabinets.

Advantages

Fully shielded construction reduces electromagnetic interference and helps maintain signal integrity in structured cabling. Numbered RJ45 ports simplify cable identification and management. LSA clamping plates allow secure, tool-assisted termination of installation cables. The 1HE (1U) 19" form factor fits standard racks and cabinets for tidy, space-efficient installation.

Suitable for

Key specifications

How to use

Mount the patch panel into a 19" rack occupying 1U of rack space. Terminate each incoming installation cable using the LSA clamping plates according to the Cat.6 wiring scheme and secure connections. Plug patch cables into the numbered RJ45 ports to connect network devices, switches or patch panels. Use the knurled screws on the backside to open or close the panel case for access during installation or maintenance.

Recommendations

For optimal performance, follow Cat.6 cabling standards during termination, maintain proper cable shielding and grounding, and avoid sharp bends or excessive cable tension. Label both ends of each cable to match the numbered ports for easier maintenance.
