InLine B-76803R networking cable Red 3 m Cat6a S/FTP (S-STP)

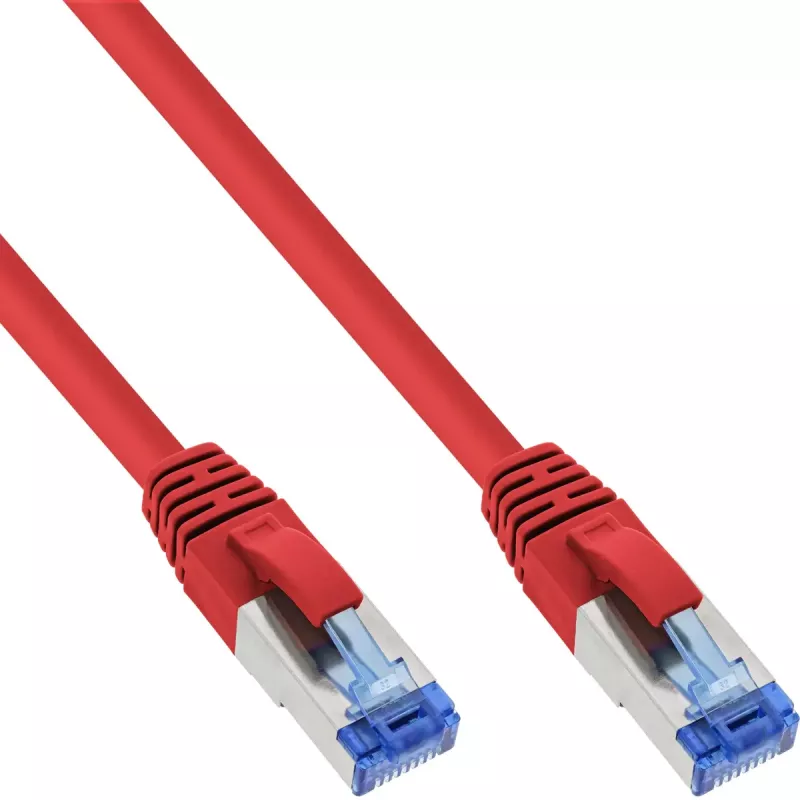

InLine B-76803R networking cable: 25 pieces of item 76803R packed in a moisture-protective PE bag and an outer carton. The cable is manufactured to TIA/EIA 568B.2-1 assignment with S/FTP (PiMf) construction: four screened pairs, each pair foil-shielded, overall braided shield, solid AWG26/7 copper conductors. The jacket is halogen-free LSZH and meets IEC 60332-1-2, IEC 60754-1, IEC 60754-2 and IEC 61034 standards. Each cable is fitted with an RJ45 connector featuring 50 µ" gold-plated contacts, a special design with snap-in protection and a blue-coloured connector for easy differentiation. The cable supports Gigabit and 10 Gigabit applications and is rated up to 500 MHz; an enclosed test report is included.

Advantages

The InLine B-76803R combines pair-wise foil shielding and an overall braided shield to reduce crosstalk and external interference while providing reliable signal transmission for high-speed networks. The LSZH halogen-free jacket increases safety in confined spaces by limiting toxic gas and smoke in the event of fire. Bulk ecoPack packaging minimises individual packaging waste and reduces cost per unit by delivering items together in a PE bag and a standardized carton.

Suitable for

Key specifications

How to use

Unpack the bulk ecoPack and remove the required number of cables from the PE bag. Route the cables following standard installation practices for S/FTP cables, maintain proper bend radius and avoid excessive pulling force. Terminate at both ends with compatible RJ45 ports or patch panels, ensuring the TIA/EIA 568B.2-1 wiring scheme is followed. Verify connections and performance using appropriate network testers and refer to the enclosed test report for baseline measurements.

Recommendations

For optimal performance, install in environments with controlled electromagnetic interference, separate from power cabling where possible, and adhere to installation limits for bend radius and pull tension. Use the blue-coloured RJ45 connector to identify this cable type during deployment and label runs according to site standards.
