InLine 74901B networking cable Blue 10 m Cat6a S/FTP (S-STP)

InLine 74901B networking cable Blue 10 m Cat6a S/FTP (S-STP)

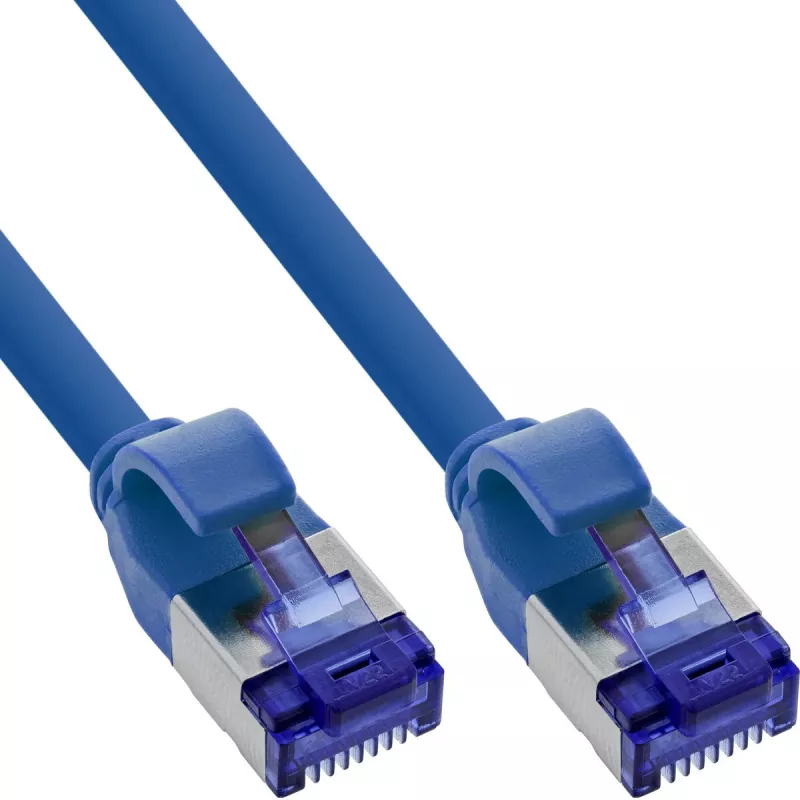

InLine 74901B networking cable in blue, 10 m, Cat6a S/FTP (S-STP). Part of the InLine Slim Cat.6A S/FTP patch cable range, this space-saving design uses AWG28 conductors and needs around 40% less space than conventional AWG26 patch cables, allowing higher port density and improved airflow in network cabinets and server rooms. It delivers full Cat.6A performance up to 10 Gbit/s and 500 MHz over lengths up to 30 m, and supports 4PPoE with up to 87 watts for IP cameras, access points and VoIP phones. The pure copper conductors minimise signal loss while the S/FTP double shielding protects against electromagnetic interference. The flexible TPE jacket is LSZH (low smoke, zero halogen), halogen-free and flame-retardant for safe installation in tight runs. Additional specifications: pure copper conductors, S/FTP construction (pair and overall shielding), AWG28 wire gauge, operating temperature -20 to +75 °C, outer diameter 4.5 mm, T568B 1:1 wiring, RJ-45 connectors with gold-plated contacts, 10000 Mbit/s data rate. To use, connect one RJ-45 plug to the network device and the other to the endpoint, follow T568B wiring, avoid sharp bends and verify PoE power budgets before deployment.

Specifications

• Depth: 1000 mm
• Height: 12 mm
• Operating temperature (T-T): -20 - 75 °C
• Package depth: 243 mm
• Package height: 15 mm
• Package weight: 36 g
• Package width: 173 mm
• Product colour: Blue
• Storage temperature (T-T): -20 - 75 °C
• Weight: 28 g
• Width: 15 mm
• Compliance certificates: CE, REACH, RoHS
• Package type: Polybag
• Sustainability compliance: Yes
• Quantity per pack: 1 pc(s)
• Package volume: 700 cm³
• Data transfer rate: 10000 Mbit/s
• Cable length: 10 m
• Connector contacts plating: Gold
• Power over Ethernet (PoE): Yes

Genuine Inline product — MPN: 74901B · EAN: 4043718335244.
