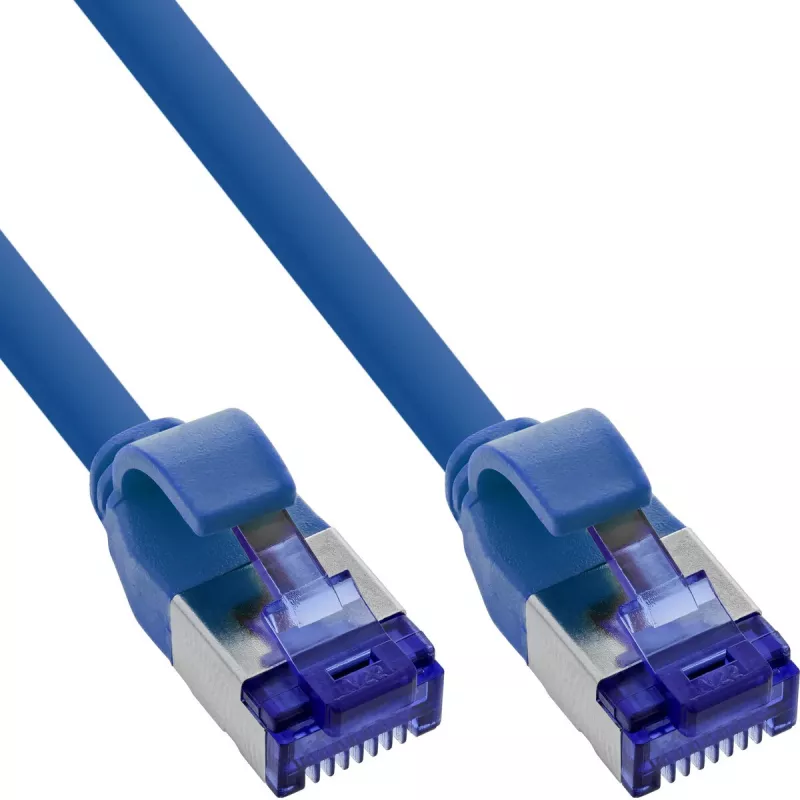

InLine 74955B networking cable Blue 0.5 m Cat6a S/FTP (S-STP) The InLine 74955B is a Cat6a S/FTP (S-STP) patch cable, 0.5 m long, in blue. Part of the InLine Slim Cat.6A range, its slim AWG28 design takes about 40% less space than conventional AWG26 patch cables, allowing higher port density in netw... Read More
Stock 228 Code 1431644 Brand INLINE Model 74955B Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

InLine 74955B networking cable Blue 0.5 m Cat6a S/FTP (S-STP)

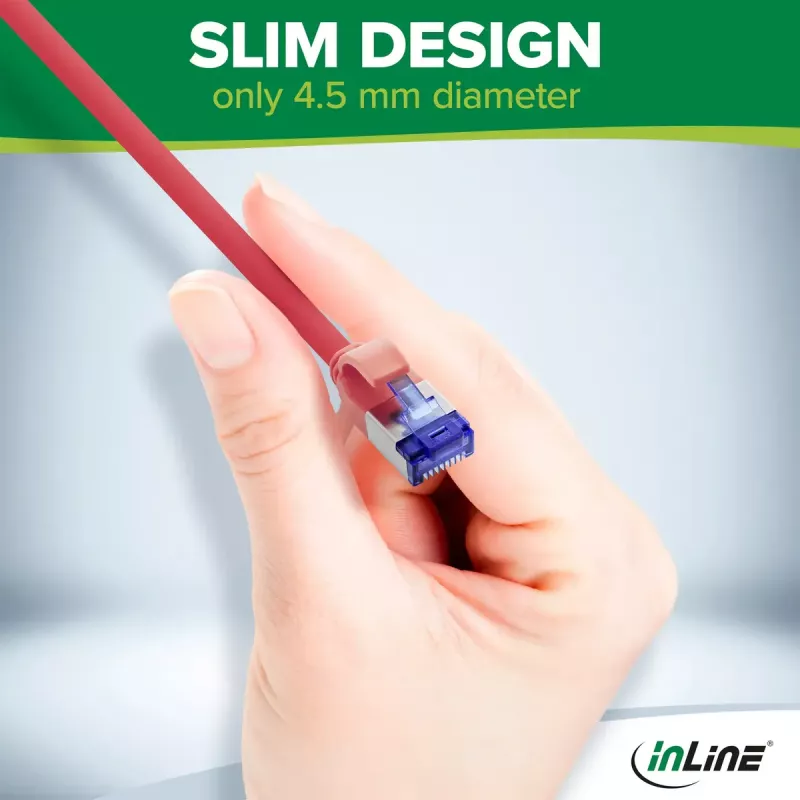

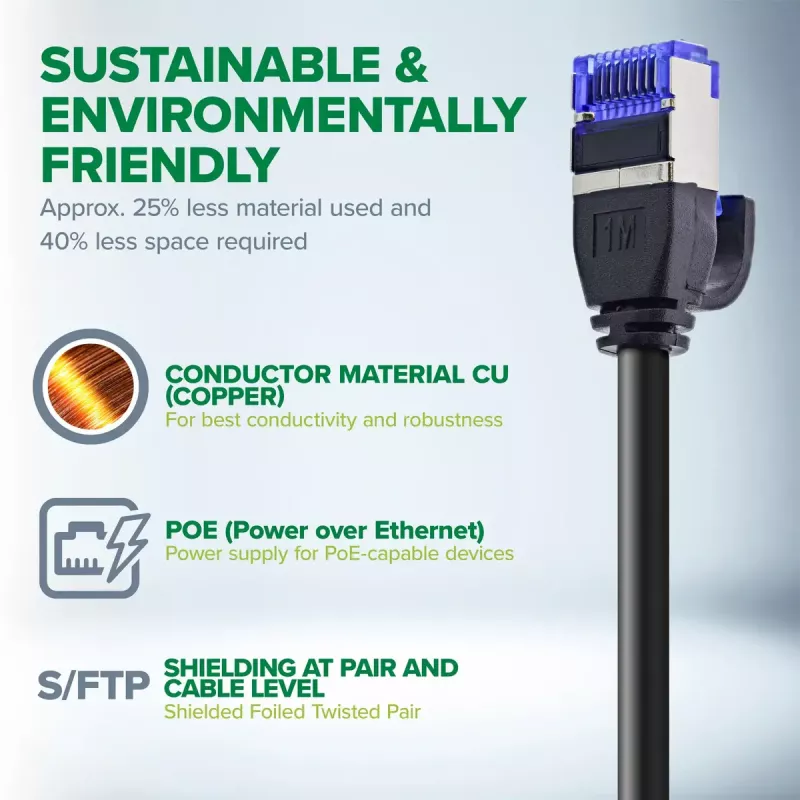

The InLine 74955B is a Cat6a S/FTP (S-STP) patch cable, 0.5 m long, in blue. Part of the InLine Slim Cat.6A range, its slim AWG28 design takes about 40% less space than conventional AWG26 patch cables, allowing higher port density in network cabinets and improving airflow and cooling. High-quality pure-copper conductors deliver full Cat.6A performance up to 500 MHz and up to 10 Gbit/s over lengths up to 30 m, and support 4PPoE (Power over Ethernet) up to 87 W for IP cameras, access points or VoIP phones. The S/FTP double shielding (pair and overall) protects reliably against electromagnetic interference. The flexible TPE (LSZH) jacket is halogen-free, flame-retardant and low-smoke, suited to tight cable routes and safety-critical installations, and uses about 25% less material. Both connectors are gold-plated RJ-45, wired 1:1 to T568B. Outer diameter 4.5 mm, operating temperature -20 to +75 degrees C, data rate 10000 Mbit/s. Intended for indoor use in cabinets, racks and patch panels; connect one RJ-45 plug to a switch, patch panel or device port and the other to the matching port, avoiding sharp bends.

Specifications

  • Country of origin: Taiwan
  • Depth: 500 mm
  • Height: 12 mm
  • Operating temperature (T-T): -20 - 75 °C
  • Package depth: 245 mm
  • Package height: 15 mm
  • Package weight: 24 g
  • Package width: 132 mm
  • Product colour: Blue
  • Storage temperature (T-T): -20 - 75 °C
  • Weight: 16 g
  • Width: 15 mm
  • Compliance certificates: CE, REACH, RoHS
  • Package type: Polybag
  • Quantity per pack: 1 pc(s)
  • Package volume: 500 cm³
  • Data transfer rate: 10000 Mbit/s
  • Cabling technology: 10GBase-T
  • Plug and Play: Yes
  • Cable length: 0.5 m

Genuine Inline product — MPN: 74955B · EAN: 4043718335237.

Key Highlights

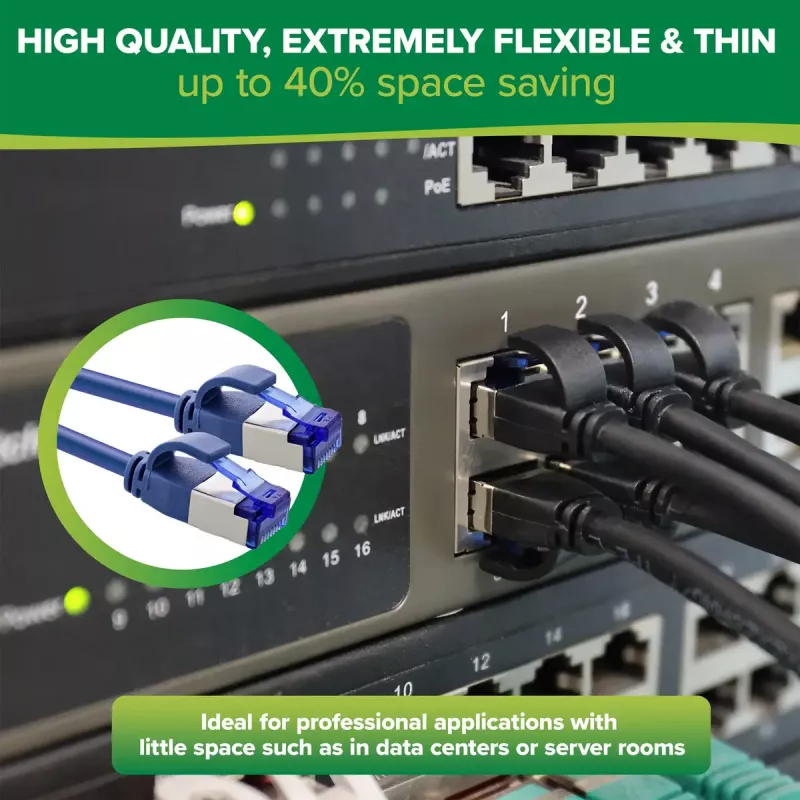

  • High-density network cabinets and server rooms
  • Connections between switches and patch panels in professional IT installations
  • PoE-powered devices such as IP cameras, access points and VoIP phones
  • Short-run 10 Gigabit Ethernet links up to 30 m
  • Product: InLine 74955B, Cat6a S/FTP patch cable, 0.5 m
  • Connectors: RJ-45 straight male – RJ-45 straight male, gold-plated contacts
  • Conductor material and gauge: Pure copper, AWG28
  • Shielding: S/FTP (pair foil + overall shield)

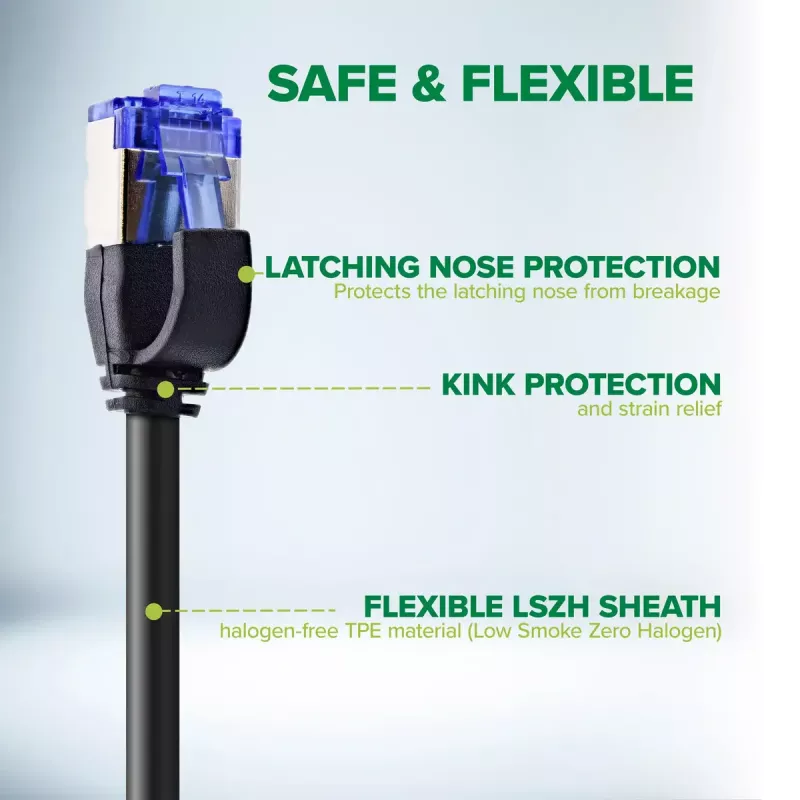

  • Sheath: TPE (LSZH) — halogen-free, flame-retardant

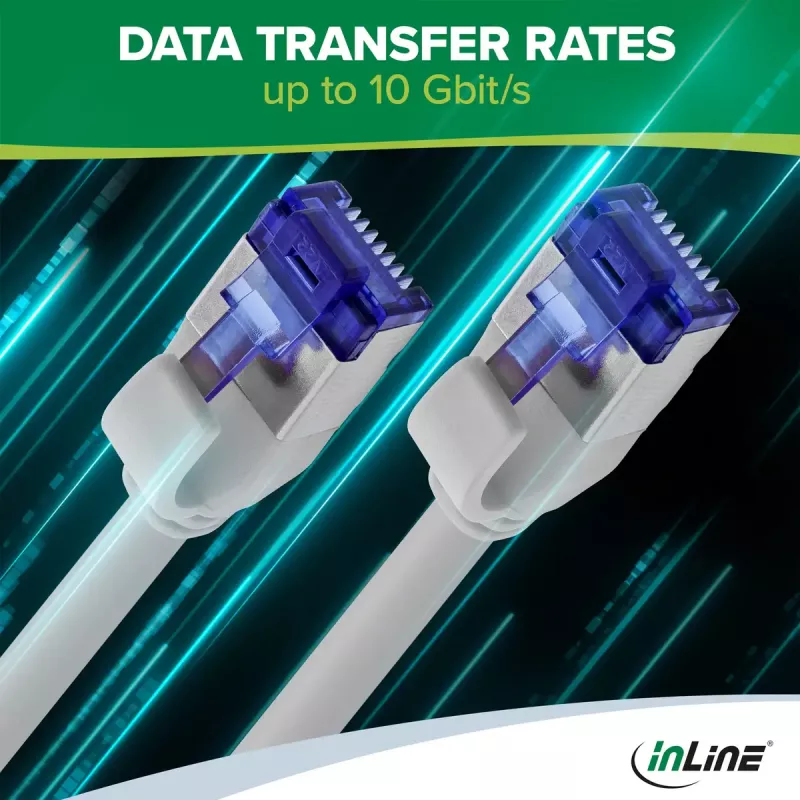

  • Performance: Cat.6A up to 500 MHz, 10 Gbit/s (10GBase-T)
  • PoE support: Yes — up to 87 W (4PPoE)
  • Operating temperature: -20 to +75 °C
  • Outer diameter: 4.1 mm
  • Wiring: T568B (1:1)
  • Colour: Blue
Specifications
AWG wire size
28
Cable length
0.5 m
Cable shape
Round
Cable shielding
S/FTP (S-STP)
Cable standard
Cat6a
Cabling technology
10GBase-T
Compliance certificates
CE, REACH, RoHS
Conductor material
Copper
Connector 1
RJ-45
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Gold
Country of origin
Taiwan
Data transfer rate
10000 Mbit/s
Depth
500 mm
Dimensions (WxDxH)
15 x 500 x 12 mm
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Height
12 mm
Jacket material
Low smoke zero halogen (LSZH), Thermoplastic elastomer (TPE)
Molded cable boot
Yes
Operating temperature (T-T)
-20 - 75 °C
Outer diameter
4.5 mm
Package depth
245 mm
Package height
15 mm
Package type
Polybag
Package volume
500 cm³
Package weight
24 g
Package width
132 mm
Plug and Play
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+, PoE++ (4PPoE)
Product colour
Blue
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-20 - 75 °C
Weight
16 g
Width
15 mm
