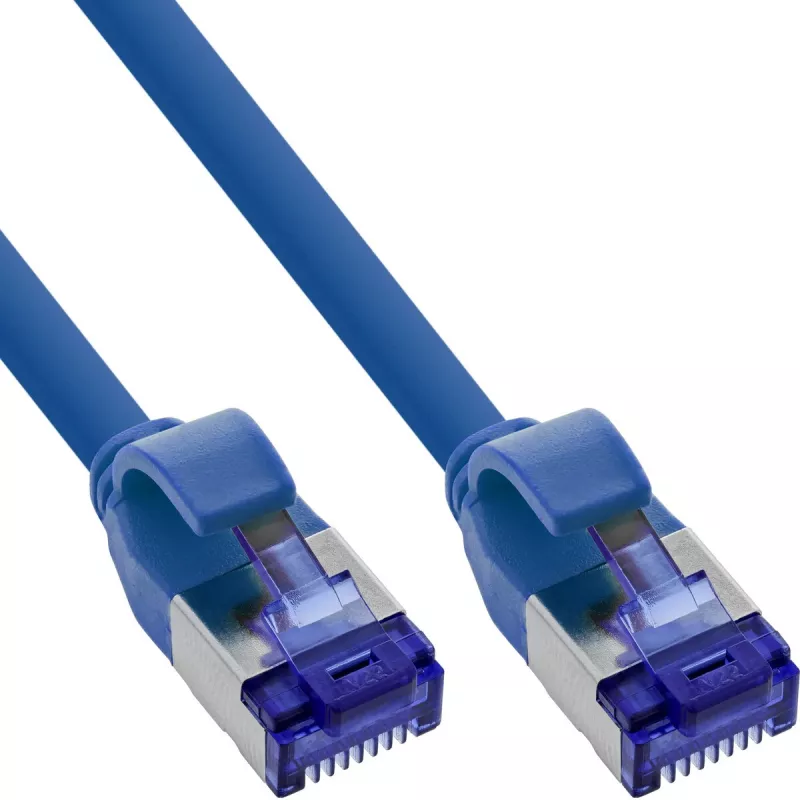

InLine 74915B networking cable Blue 15 m Cat6a S/FTP (S-STP)

InLine 74915B networking cable Blue 15 m Cat6a S/FTP (S-STP)

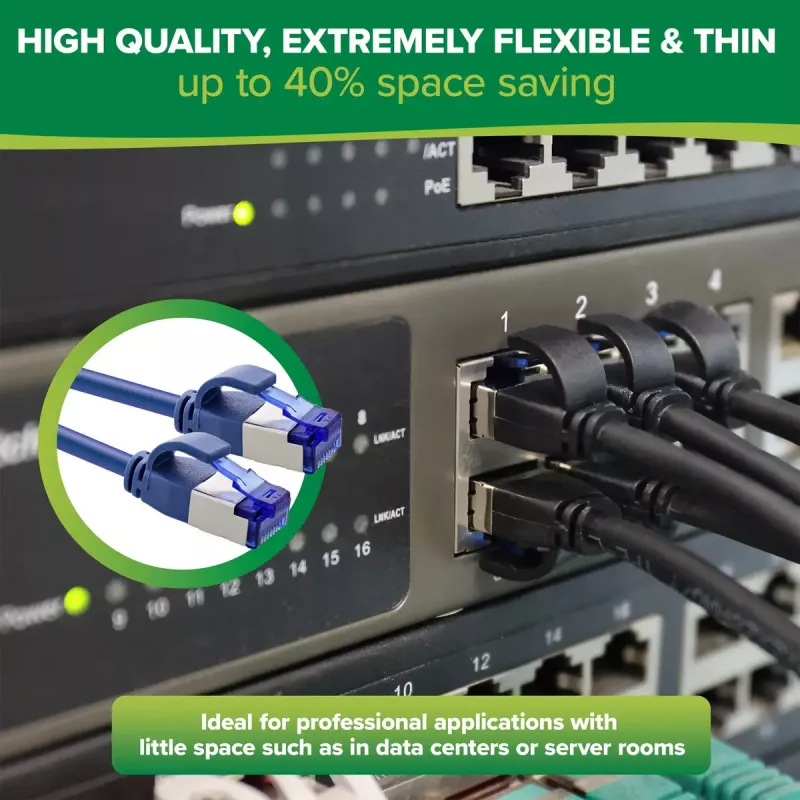

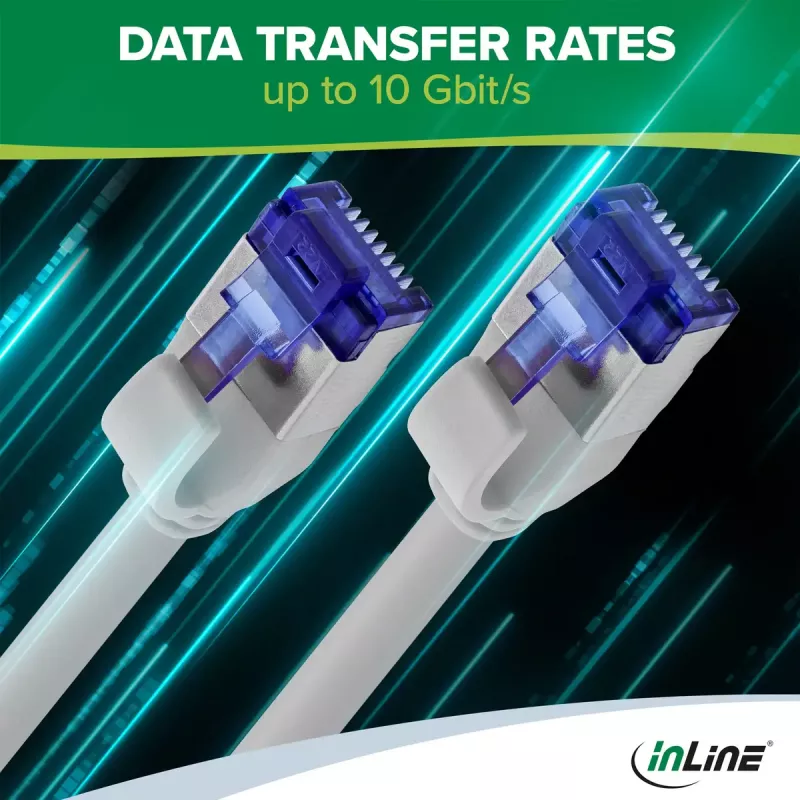

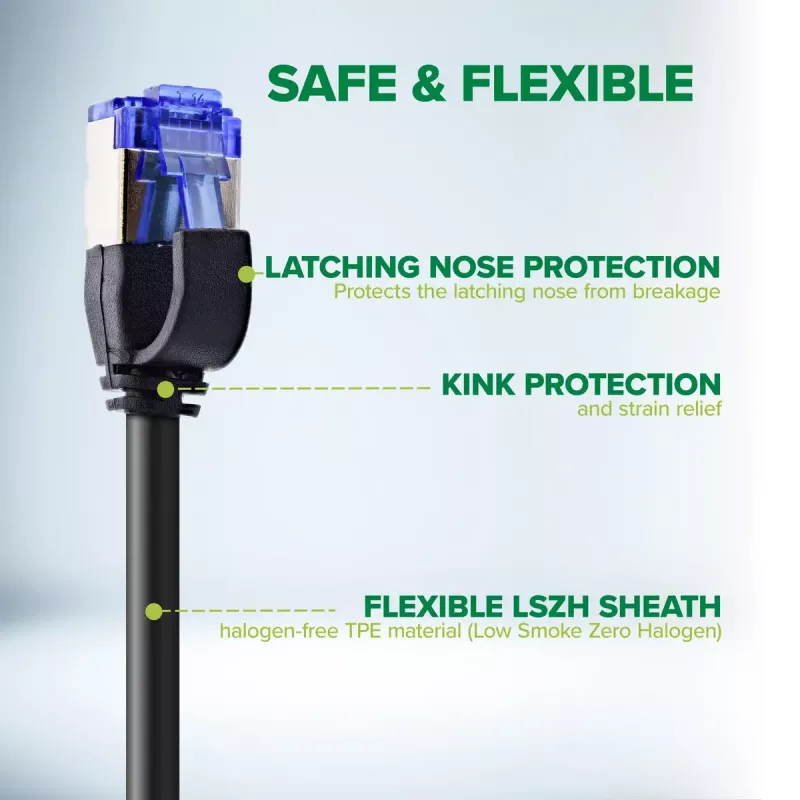

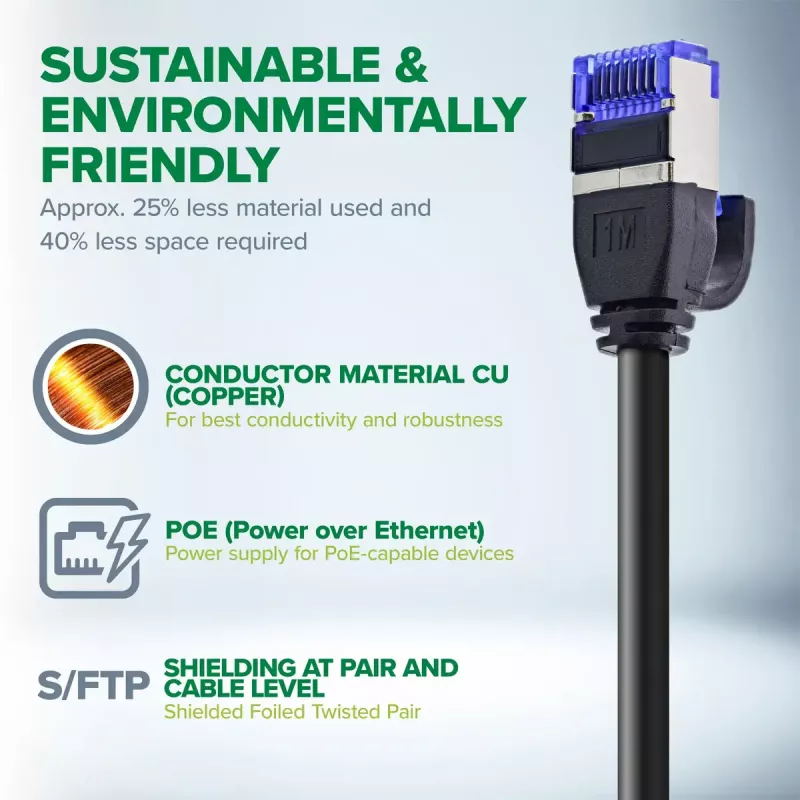

Space-saving design for maximum port density: about 40% less space than conventional AWG26 patch cables, ideal for network cabinets and server rooms. High-quality copper conductors deliver full Cat.6A performance with up to 10 Gbit/s over lengths of up to 30 metres. PoE support up to 87 W (4PPoE) allows energy-efficient operation of IP cameras, access points or VoIP phones without additional power supplies. Sustainable and economical: around 25% material saving reduces transport and manufacturing costs and improves the carbon footprint. The flexible, safe TPE (LSZH) jacket is flame-retardant, halogen-free and especially flexible for tight routing paths. The InLine Slim Cat.6A S/FTP patch cable series combines top network performance with maximum space and energy efficiency; the slim AWG28 conductors allow higher port density in cabinets and improve airflow, cooling and efficiency. Unlike conventional thinner AWG32 cables, this cable supports full Cat.6A quality at up to 500 MHz and 4PPoE up to 87 W. High-quality copper conductors minimise signal loss and ensure a reliable connection even over lengths up to 30 metres, while the S/FTP double shielding protects against electromagnetic interference. The TPE (LSZH) jacket combines flexibility with fire safety: halogen-free, flame-retardant and low-smoke. Additional specifications: conductor material pure copper; construction S/FTP (pair and overall shielding); jacket TPE (LSZH); wire gauge AWG28; operating temperature -20 to +75 C; outer diameter 4.5 mm; wiring 1:1 to T568B; PoE support yes, up to 87 W (4PPoE). InLine 74915B. Cable length: 15 m. Standard: Cat6a. Shielding: S/FTP (S-STP). Connector 1: RJ-45. Connector 2: RJ-45. Contact plating: gold. Data transfer rate: 10000 Mbit/s. Colour: blue. How to use: connect the cable between RJ-45 ports on switches, patch panels, routers or end devices, ensuring both ends click into place; it is pre-wired 1:1 to T568B for plug-and-play and supports PoE devices without extra power supplies when the connected equipment provides 4PPoE.

Specifications

• Country of origin: Taiwan
• Depth: 15000 mm
• Height: 12 mm
• Operating temperature (T-T): -20 - 75 °C
• Package depth: 345 mm
• Package height: 52 mm
• Package weight: 371 g
• Package width: 260 mm
• Product colour: Blue
• Storage temperature (T-T): -20 - 75 °C
• Weight: 351 g
• Width: 15 mm
• Compliance certificates: CE, REACH, RoHS

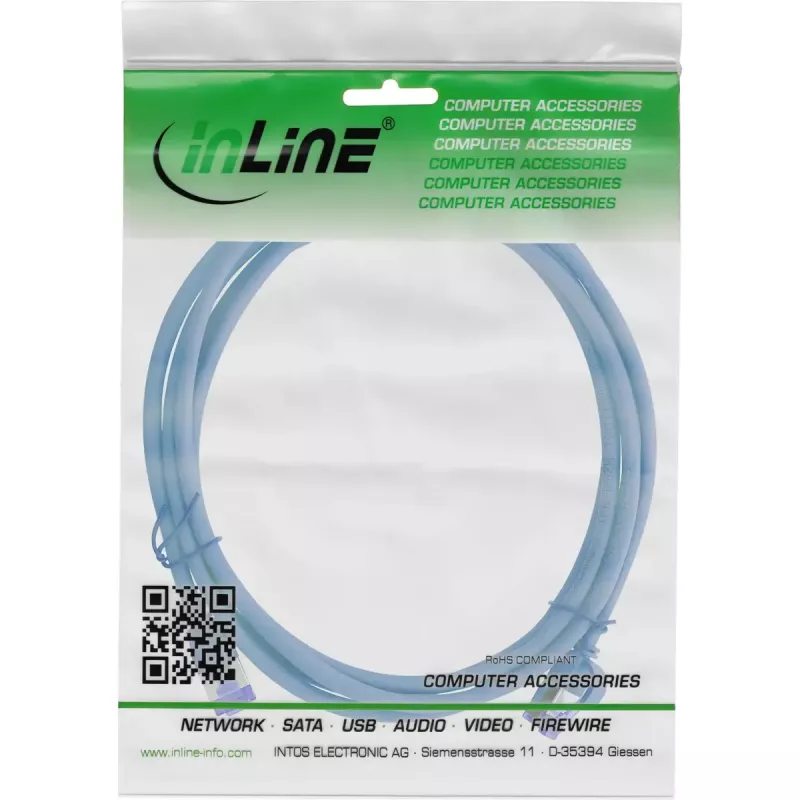

• Package type: Polybag
• Quantity per pack: 1 pc(s)
• Package volume: 4700 cm³
• Data transfer rate: 10000 Mbit/s
• Cabling technology: 10GBase-T
• Plug and Play: Yes
• Cable length: 15 m

Genuine Inline product — MPN: 74915B · EAN: 4043718335312.
