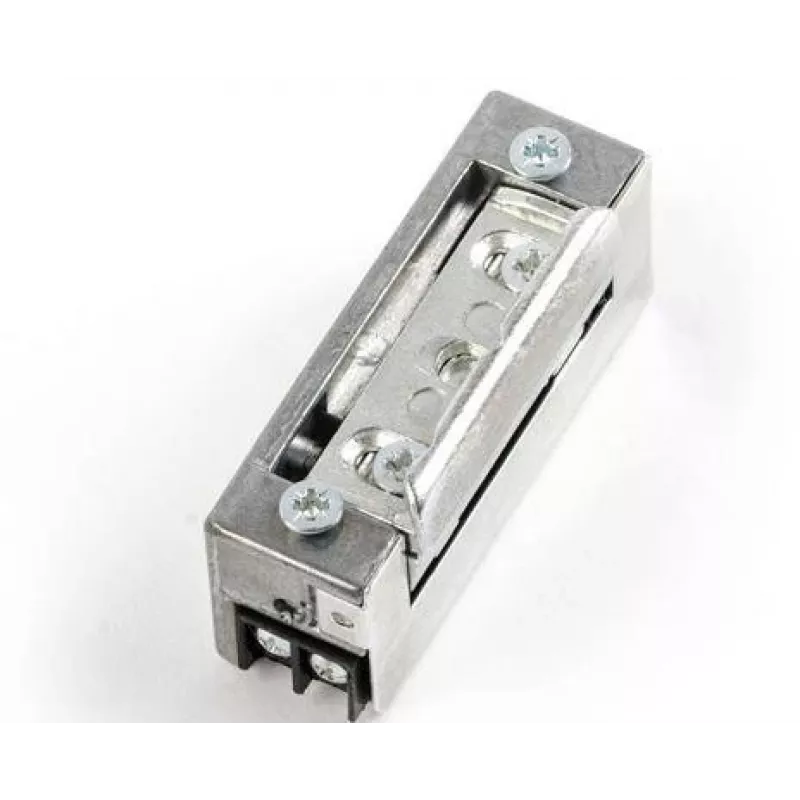

ELEKTRA-PLUS R4-24.13 Electric Strike 24V Fail-Secure Reversible

The ELEKTRA-PLUS R4-24.13 is a high-quality electric strike designed for access control systems, intercoms, and door entry systems. This fail-secure unit operates at 24V AC/DC and features a reversible mechanism for left or right-hand doors. With a holding force of 3000 N and durable zinc alloy construction, it ensures reliable security in commercial and residential applications.

Advantages

Fail-secure operation ensures door remains locked during power loss. Reversible design allows easy installation on both left and right-hand doors. High holding force of 3000 N provides robust security. Durable zinc alloy body and steel faceplate withstand frequent use. Flush mount installation for a clean, professional look.

Suitable for

• Access control systems
• Intercoms and door entry systems
• Commercial and residential security

Key specifications

• Product Type: Electric Strike
• Operating Voltage: 24V AC/DC
• Current Consumption: 250 mA (AC), 200 mA (DC)
• Operation Mode: Fail-Secure
• Reversibility: Yes (Left/Right Hand Doors)
• Holding Force: 3000 N
• Body Material: Zinc Alloy
• Faceplate Material: Steel
• Faceplate Dimensions: 160 x 25 x 3 mm
• Operating Temperature: -20°C to +50°C
• Durability: >200,000 cycles
• Installation: Flush Mount

Recommendations

For optimal performance, ensure proper wiring and voltage supply. Suitable for indoor use only. Professional installation recommended.
