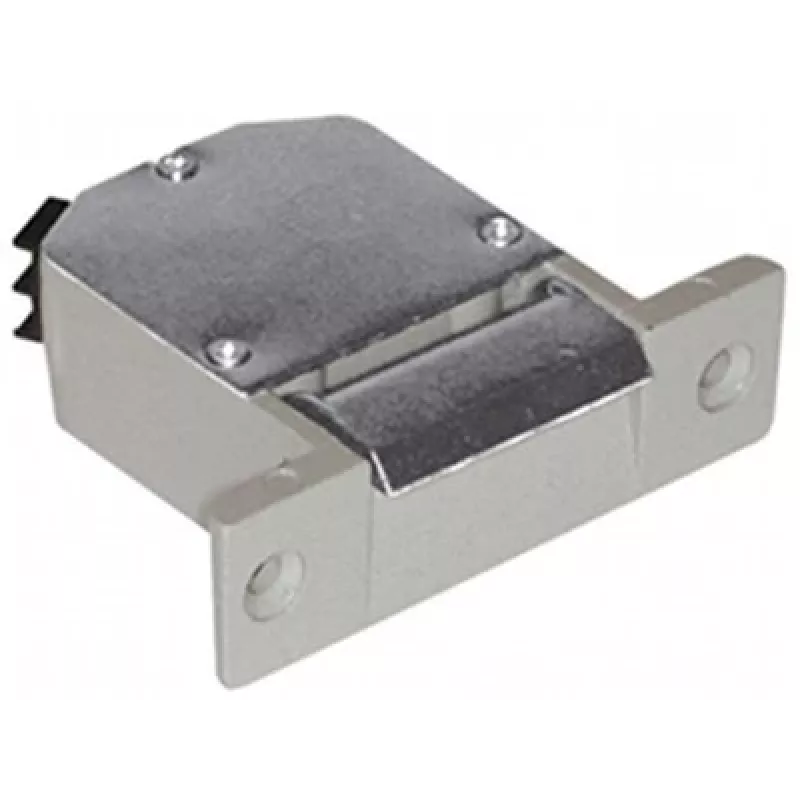

ELEKTRA-PLUS R1 Wide Electric Strike 12V AC/DC 3000N

The ELEKTRA-PLUS R1-12.10 is a professional-grade wide electric strike designed for high-security access control applications. Engineered with a robust zinc alloy body and stainless steel faceplate, this fail-secure (normally closed) strike delivers a holding force of 3000 N (approx. 300 kg) and is suitable for both left and right-hand doors. Its wide faceplate (160 x 25 x 3 mm) ensures compatibility with a variety of locking mechanisms, while the memory (latch) and hold-open (block) functions provide versatile operation. Operating at 12V AC/DC with a low current consumption of 280 mA, it is ideal for integration with access control systems, intercoms, and time attendance solutions.

Advantages

High holding force of 3000 N ensures reliable door security. Fail-secure mode guarantees safety in power loss. Reversible for left or right-hand doors. Durable construction with 200,000 cycle lifespan. Low power consumption reduces operational costs.

Suitable for

• Access control systems in commercial buildings
• Office doors, server rooms, and secure areas
• Integration with intercoms and keypads
• Retrofit installations with standard 12V power supplies

Key specifications

• Product Type: Electric Strike
• Functionality: With Memory (Latch) and Hold-Open (Block)
• Faceplate Type: Wide
• Operating Voltage: 12V AC/DC
• Current Consumption: 280 mA (at 12V)
• Holding Force: 3000 N (approx. 300 kg)
• Operating Mode: Fail-Secure (Normally Closed - NC)
• Reversibility: Reversible (Left/Right Hand)
• Body Material: Zinc Alloy
• Faceplate Material: Stainless Steel
• Faceplate Dimensions: 160 x 25 x 3 mm (L x W x T)
• Body Dimensions: 67 x 21 x 28 mm (L x W x H)
• Mounting Type: Flush Mount
• Operating Temperature: -20°C to +50°C
• Durability: 200,000 cycles

Recommendations

For optimal performance, pair with a regulated 12V DC power supply and ensure proper alignment with the door frame. Suitable for indoor use only. Always follow local electrical codes during installation.
