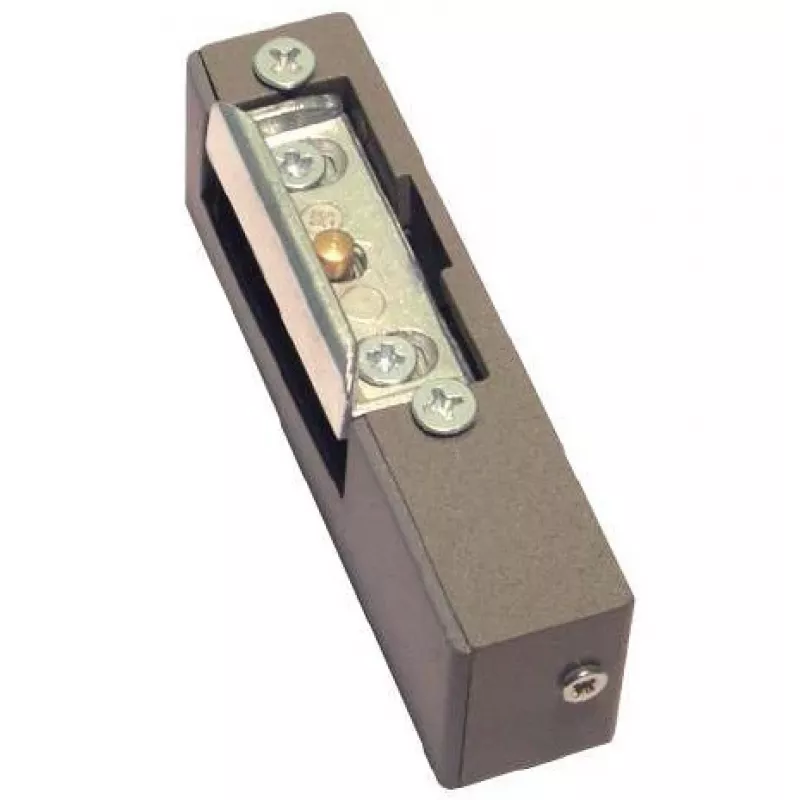

ELEKTRA-PLUS Electric Door Strike R3 with Memory, Without Mechanical Blocking, Left Hand, 12V AC/DC, Fail-Secure

The ELEKTRA-PLUS R3-12.30L is a high-quality electric door strike designed for light and medium duty doors. It features a memory (latching) function and is configured for left-hand doors. The fail-secure (normally closed) operating mode ensures security during power loss. This model does not include mechanical blocking, making it suitable for applications where a simple electric release is required.

Advantages

Reliable 12V AC/DC operation with low power consumption (500mA AC / 250mA DC). Durable construction with zinc alloy housing and stainless steel faceplate. Adjustable latch (3mm) for precise alignment. Tested for 300,000 cycles, ensuring long service life.

Suitable for

• Light and medium duty commercial doors
• Access control systems requiring fail-secure operation
• Left-hand door installations
• Applications needing a latching (memory) electric strike

Key specifications

• Product Type: Electric Door Strike
• Functionality: With Memory (Latching)
• Mechanical Hold: No (Without Mechanical Blocking)
• Handing: Left Hand
• Operating Mode: Fail-Secure (Normally Closed)
• Operating Voltage: 12V AC/DC
• Current Consumption: 500mA (12V AC), 250mA (12V DC)
• Housing Material: Zinc Alloy
• Faceplate Material: Stainless Steel

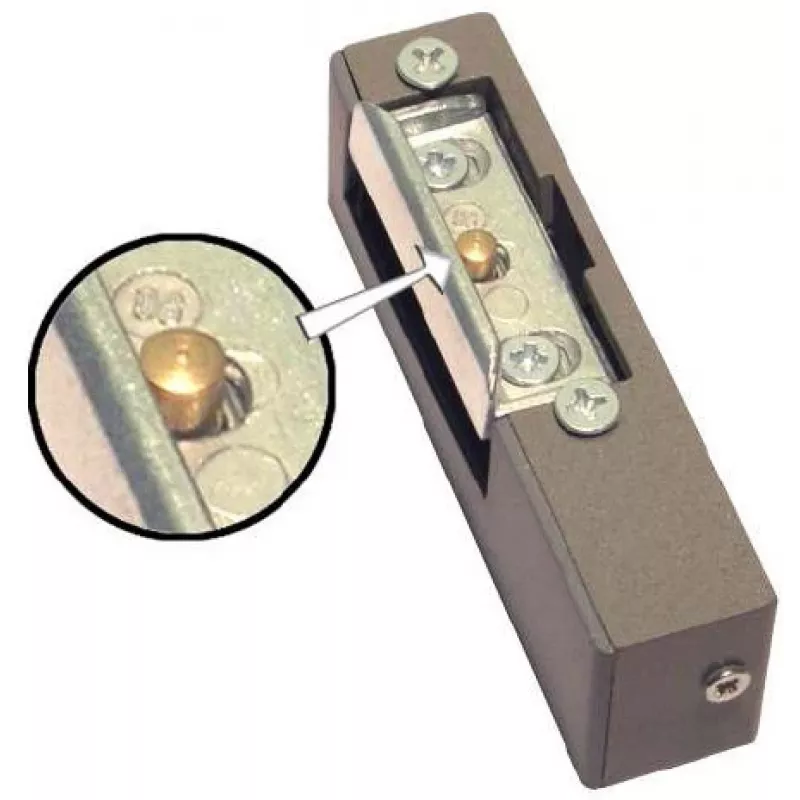

• Adjustable Latch: Yes (3mm)
• Durability: 300,000 cycles
• Mounting Type: Mortise / Flush Mount
• Operating Temperature: -10°C to +50°C
• Connection Type: 2-wire connection

Recommendations

For optimal performance, ensure proper voltage and current supply. Suitable for use with standard access control panels. Professional installation recommended.
