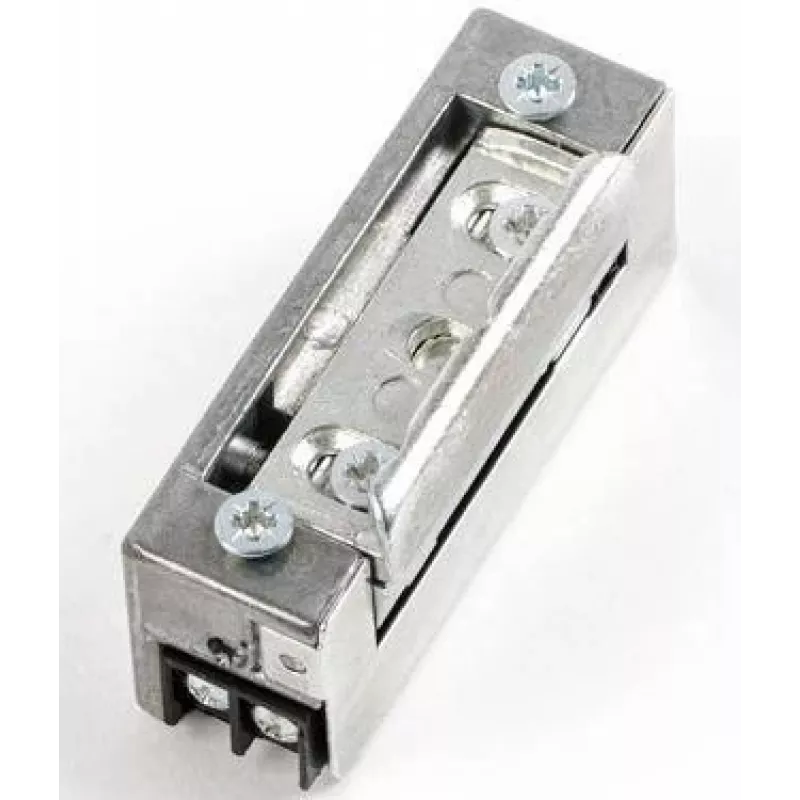

ELEKTRA-PLUS R4-12.10 Electric Strike Symmetrical Without Hold-Open 12V AC/DC 3000N

The ELEKTRA-PLUS R4-12.10 is a high-quality electric strike designed for access control systems, doors, and gates. This fail-secure (standard) symmetrical strike operates without a hold-open function, ensuring reliable locking when power is removed. With a holding force of 3000 N (300 kg) and durability of 200,000 cycles, it is built for long-lasting performance in demanding environments.

Advantages

Robust zinc alloy construction ensures durability and resistance to wear. The flush mount design allows for easy integration into standard door frames. Reversible operation provides flexibility for left or right-handed doors. Operating voltage of 12V AC/DC with low current consumption (280 mA DC / 250 mA AC) makes it energy-efficient and compatible with most access control systems.

Suitable for

• Access control systems for commercial and residential doors
• Gates and entry points requiring secure locking
• Integration with intercoms, keypads, and card readers

Key specifications

• Product Type: Electric Strike
• Operation Type: Fail-Secure (Standard)
• Design: Symmetrical
• Locking Mechanism: Without Hold-Open Function
• Operating Voltage: 12V AC/DC
• Current Consumption (DC): 280 mA
• Current Consumption (AC): 250 mA
• Holding Force: 3000 N (300 kg)
• Durability: 200,000 cycles
• Material: Zinc Alloy
• Mounting Type: Flush Mount
• Reversible: Yes
• Operating Temperature: -20°C to +50°C
• Application: Access Control Systems, Doors, Gates
• Adjustable Latch: No

Recommendations

For optimal performance, ensure proper alignment of the strike with the latch. Use with a compatible 12V AC/DC power supply. Suitable for indoor and outdoor use within the specified temperature range.
