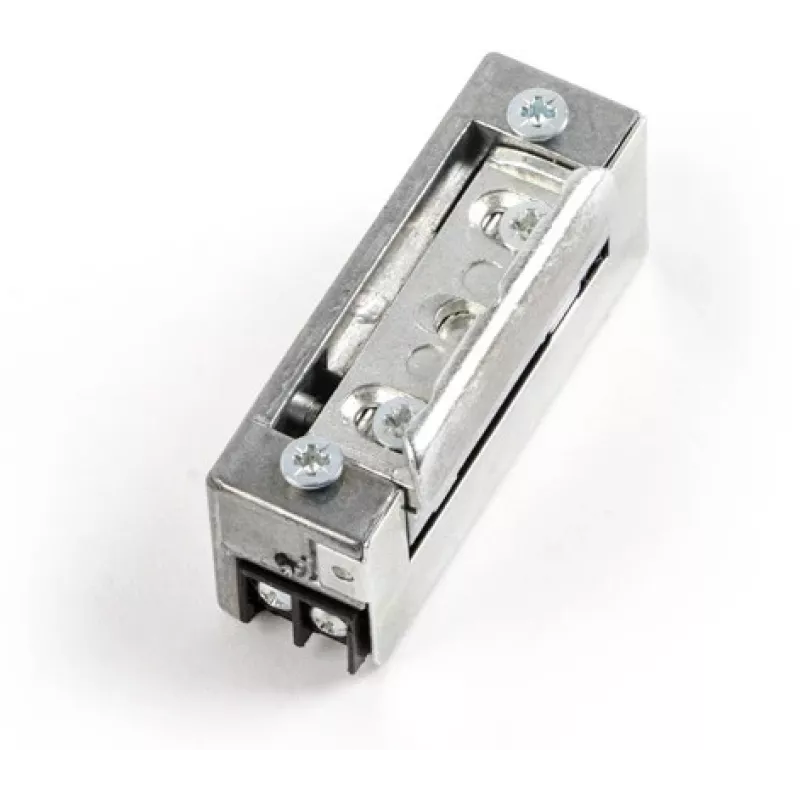

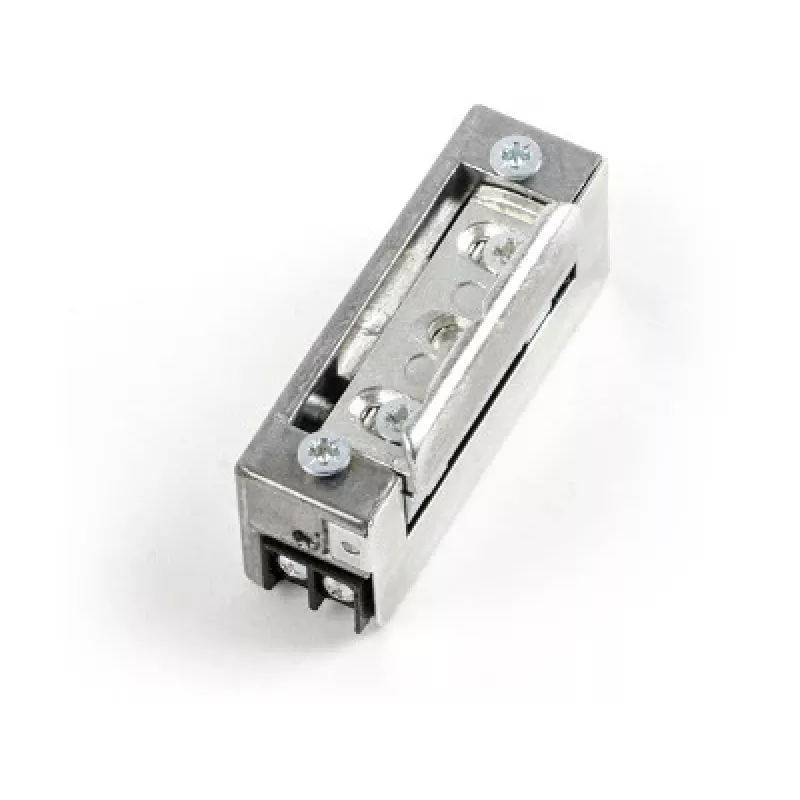

ELEKTRA-PLUS R4-24.10 Symmetrical Electromagnetic Door Holder 24V 3000N

The ELEKTRA-PLUS R4-24.10 is a high-quality electromagnetic door holder designed for reliable fail-secure operation. With a symmetrical (non-handed) design, it is suitable for wooden, metal, and PVC doors. The unit operates on 24V AC/DC and provides a holding force of 3000 N (approx. 300 kg), ensuring secure door control in commercial and residential applications.

Advantages

This electromagnetic door holder offers fail-secure functionality, meaning the door remains locked when power is lost, enhancing security. Its symmetrical design allows for easy installation on both left and right-handed doors without additional adjustments. The recessed installation provides a clean, professional finish. With a durability of 200,000 cycles, it ensures long-lasting performance.

Suitable for

• Wooden doors
• Metal doors
• PVC doors
• Access control systems
• Security entrances

Key specifications

• Operating Voltage: 24V AC/DC
• Current Consumption: 250 mA (AC), 180 mA (DC)
• Holding Force: 3000 N (approx. 300 kg)
• Function Type: Fail-Secure (Standard)
• Design: Symmetrical (Non-Handed)
• Installation: Recessed
• Material: Zinc Alloy / Steel
• Finish: Galvanized
• Durability: 200,000 cycles
• Operating Temperature: -20°C to +50°C
• Protection Class: IP20
• Certifications: CE Compliant

Recommendations

For optimal performance, ensure the power supply matches the required voltage and current. This product is ideal for integration with access control systems requiring fail-secure locking. Professional installation is recommended.
