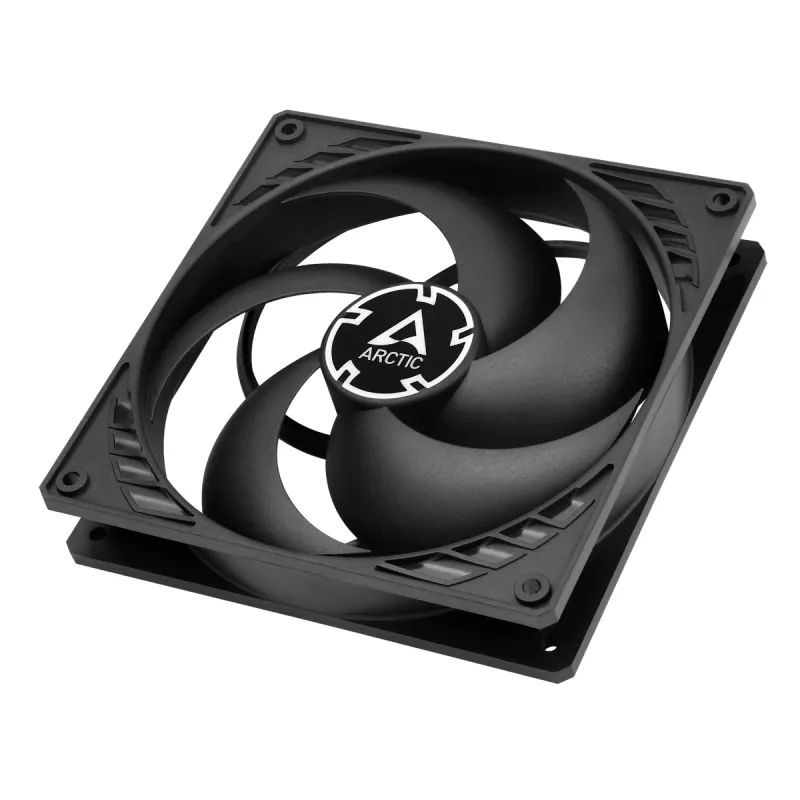

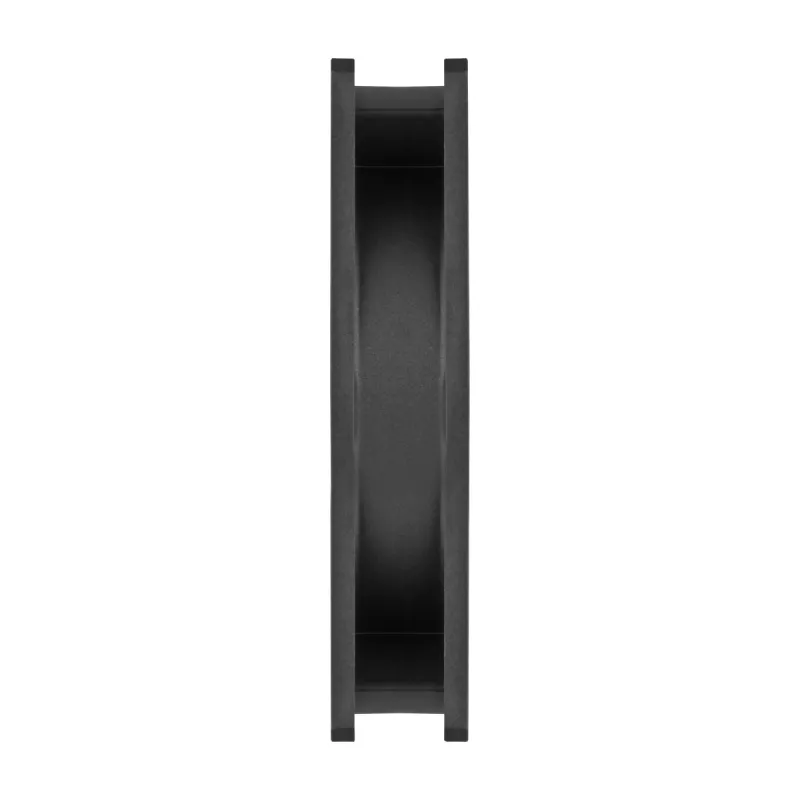

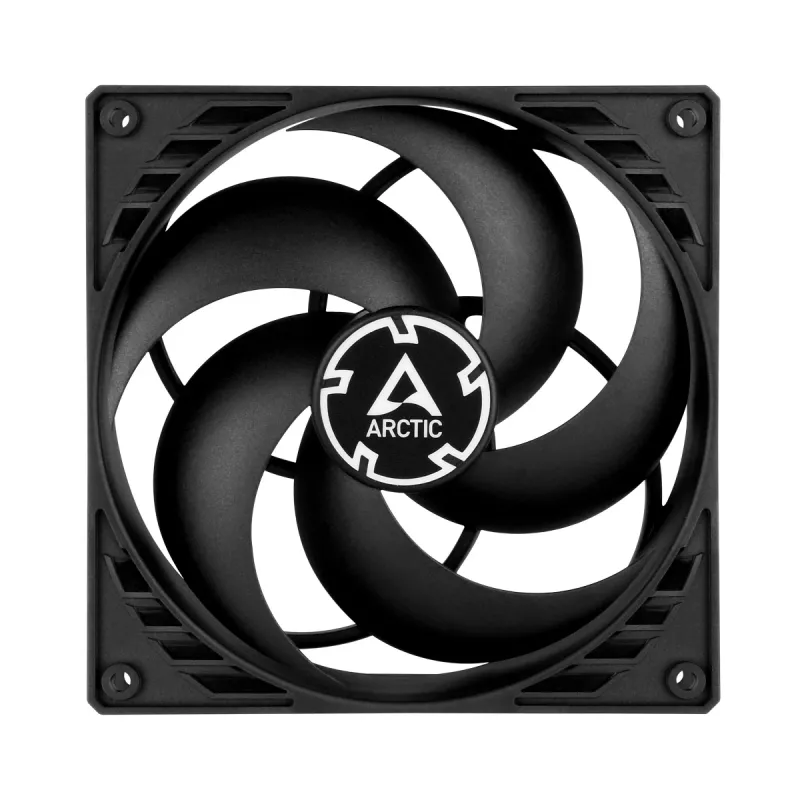

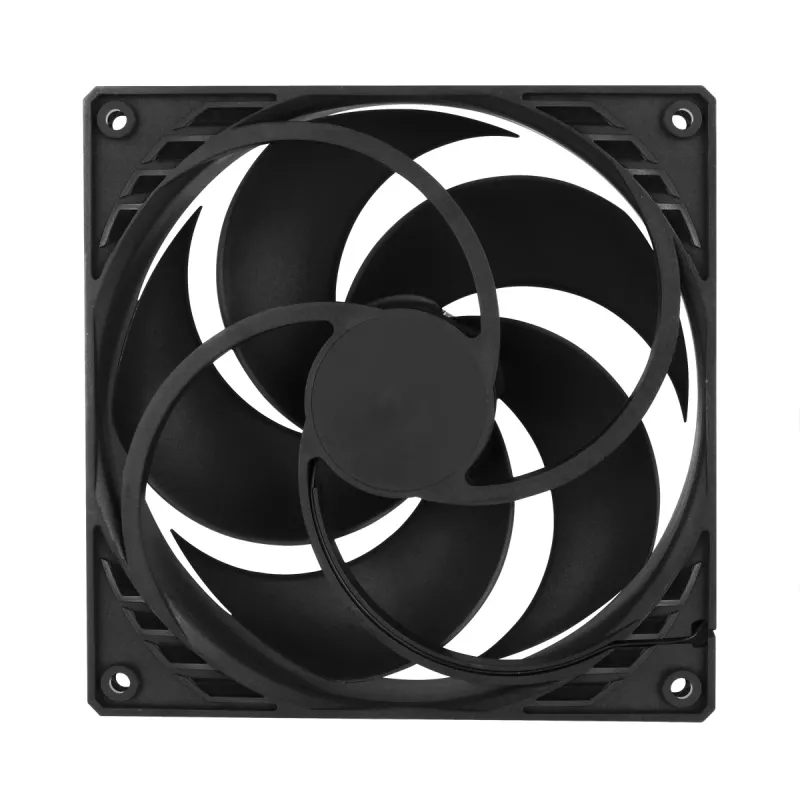

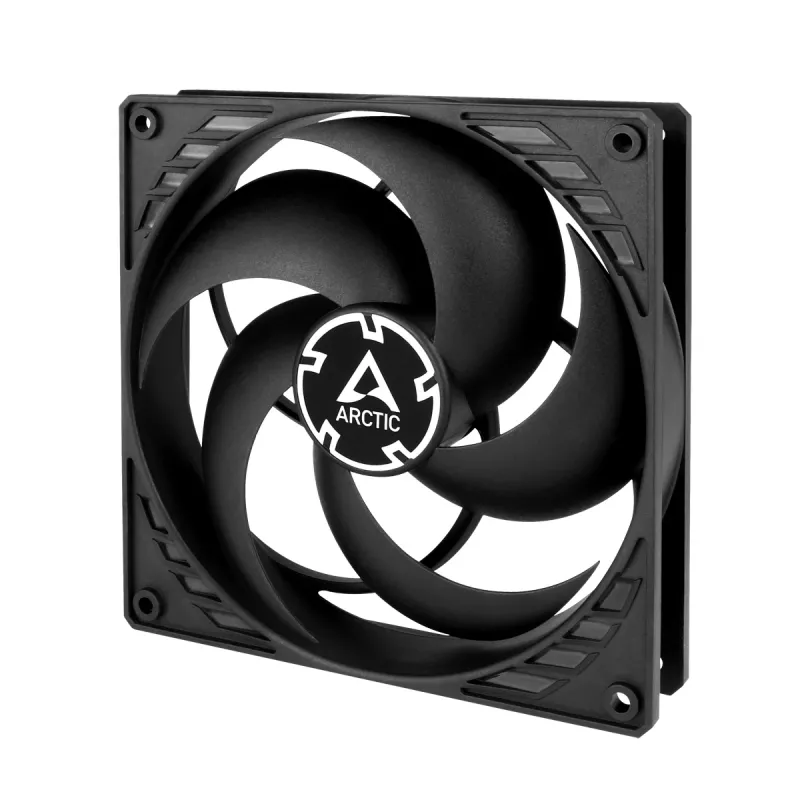

ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST

ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
R351
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and ... Read More
Stock 4 Code 25840 Brand ARCTIC Model ACFAN00125A Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 22
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Optimised for Static Pressure

Optimised for Static Pressure

During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.

More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
More Efficient Technology
Maximum Quietness, Minimum Vibration

Maximum Quietness, Minimum Vibration

Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.The new ARCTIC motor has a four times longer service life through its low coil temperature.Consequently, we have extended the warranty to 10 years.
Extended Life Span
200 to 1700 RPM regulated via PWM PST

200 to 1700 RPM regulated via PWM PST

With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
High Quality Bearing
Key Highlights
  • Optimised for static pressure
  • Ideal choice on heatsinks, radiators and (partly-) covered case vents
  • Push- or pull-configuration
  • PWM Sharing Technology (PST) regulates fan speed synchronously
  • Newly developed, very quiet motor
  • Extended life span
  • 0 dB mode: silent passive mode when PWM signal is below 5 %
  • Computer case Fan 14 cm 1700 RPM
  • 24.5 dB 72.8 cfm 2.4 mmH2O Fluid Dynamic Bearing (FDB)
  • Pulse-width modulation (PWM) support
  • Black
Specifications
Airflow
123.76 m³/h
Bearing type
Fluid Dynamic Bearing (FDB)
Cable length
0.4 m
Compatible processor series
Not supported
Country of origin
China
Depth
140 mm
Fan connector
4-pin + 4-pin
Fan diameter
14 cm
Harmonized System (HS) code
84733080
Height
27 mm
Maximum air pressure
2.4 mmH2O
Maximum airflow
72.8 cfm
Noise level
0.3 sone
Noise level (high speed)
24.5 dB
Number of fan blades
5
Number of fans
1 fan(s)
Number of screws
4
Package depth
143 mm
Package height
29 mm
Package type
Box
Package weight
234 g
Package width
143 mm
Power consumption (typical)
1.44 W
Product colour
Black
Pulse-width modulation (PWM) support
Yes
Rated current
0.12 A
Rotational speed (max)
1700 RPM
Rotational speed (min)
200 RPM
Screws included
Yes
Starting voltage
3.9 V
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Voltage
12 V
Weight
194 g
Width
140 mm
