Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack

Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
Fan ARCTIC S12038-4K 120 mm 4000 RPM Server Fan 3 Pack
R896
Workstation & Server CoolingEfficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards i... Read More
Stock 3 Code 1443519 Brand ARCTIC Model ACFAN00303A Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Workstation & Server Cooling
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.

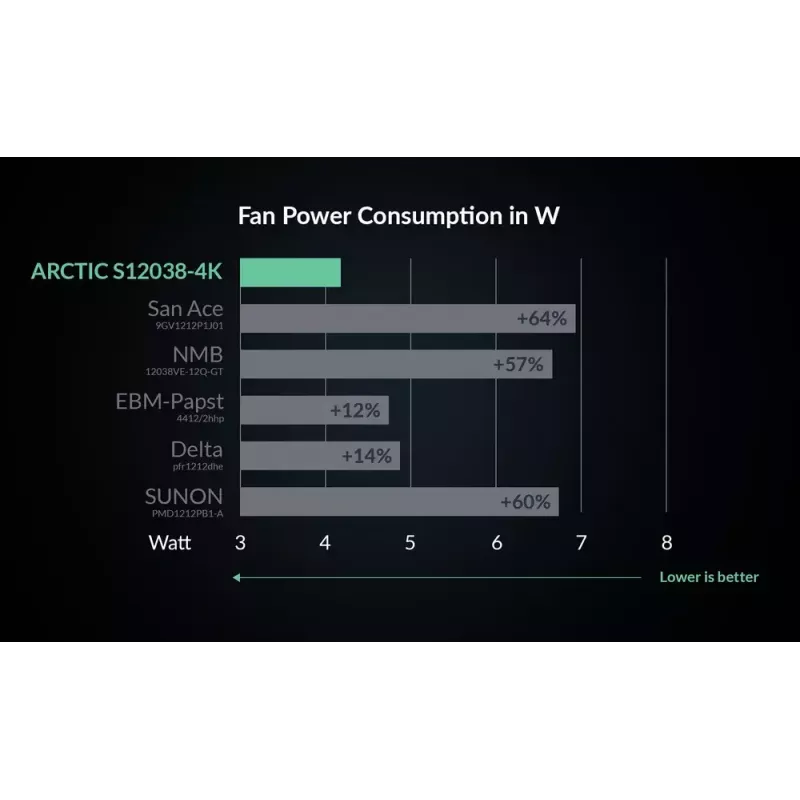

New Standard in Energy Efficiency

New Standard in Energy Efficiency

For the same performance, the S12038 consumes 12 % less than the next best competitor, improving the energy efficiency of your server. The reduction of the power consumption is the result of months of motor optimization by ARCTIC engineers with the aim to increase the IT equipment efficiency.Test SetupFan on Freezer 4U heat sink on 400 W heating element; fan speed set so that the temperature of the heating element is constantly 20 °C above the ambient temperature.

Wide Range of Speeds (600 to 4000 rpm)

The S12038-4K features a wide range of speeds from 600 to 4000 rpm, which can be controlled either via PWM or voltage regulation.. This wide range enables precise adjustment of the fan to the specific requirements of the server, ensuring efficient cooling performance under different operating conditions. The fan is equipped with a standard 4-pin connector, which also allows connection to 2-pin or 3-pin headers. The 30 cm long cable offers additional flexibility in fan placement.
Wide Range of Speeds (600 to 4000 rpm)

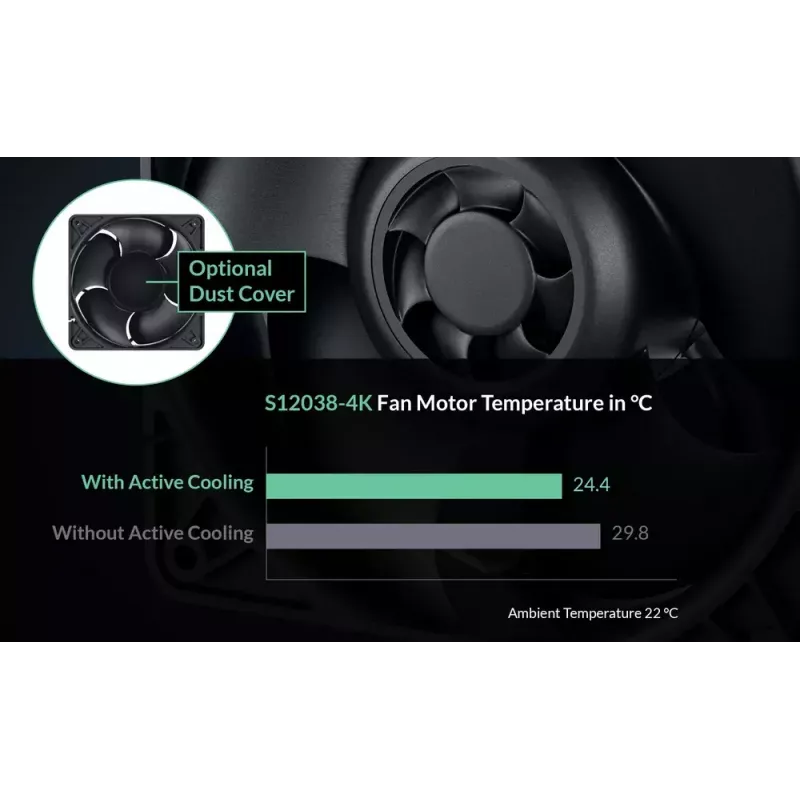

Active Cooling for Extended Motor Lifespan

Active Cooling for Extended Motor Lifespan

A 10 °C lower motor temperature roughly doubles the service life. The motor of the S12038-4K is not only particularly efficient, but is also actively cooled by an additional impeller in the fan hub.To ensure a long service life in particularly dusty environments, a sticker to cover the fan hub impeller is included in the packaging.

Ideal for Server Environments

Especially in server environments, fans with a high pressure are required to enable sufficient air circulation in the often tightly packed enclosures. The S12038-4K fits into server cases from 3U and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation.
Ideal for Server Environments
Ideal for Industrial Application

Ideal for Industrial Application

In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.

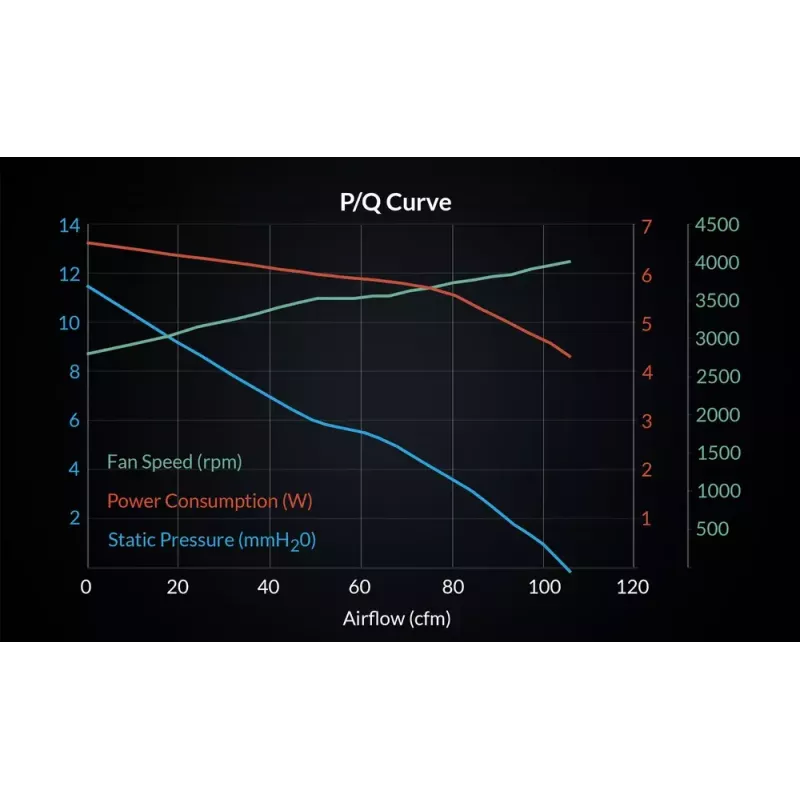

High Airflow and Static Pressure

Heat sinks and radiators benefit from fans with high static pressure. The S12038-4K has a static pressure of 11,45 mmH₂O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 180 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.
High Airflow and Static Pressure
Designed for Continuous Operation

Designed for Continuous Operation

The impeller of the S12038-4K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength and perpendicularity of the fan and minimises sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.

Quality You Can Rely On

70 °C ambient temperature, high dust exposure and changing humidity - we carry out our long-term tests under these extreme conditions to ensure the service life of our products. Some of these test fans have been running for over 15 years.This not only allows us to continuously improve our products, but the excellent test results also confirm our high manufacturing quality. We are happy to pass this assurance on to our customers and offer a 6-year manufacturer's warranty.
Quality You Can Rely On

How to use

Install the fans in compatible 120 mm mounting points in server or workstation chassis, ensuring correct airflow direction for system cooling. Connect to appropriate fan headers or power connectors following the server manufacturer's specifications. Secure mounting with screws and verify that the fans spin freely before powering the system. Monitor temperatures after installation to confirm effective airflow and cooling performance.

Recommendations

For optimal longevity and performance in continuous-operation environments, maintain regular dust management in the chassis, verify proper airflow paths, and replace fans if bearings exhibit increased noise or reduced RPM. Use in systems that support 120 mm fans and consult the server or chassis manual for connector and speed-control compatibility.

Key Highlights
  • Rack-mounted servers and server chassis
  • Workstations and rendering stations
  • Network equipment and storage enclosures
  • Replacement or upgrade of existing 120 mm server fans
  • Fan size: 120 mm
  • Maximum speed: 4000 RPM
  • Airflow: 180 m³/h
  • Bearing type: Dual ball bearing
  • Pack quantity: 3 fans
  • Brand: Arctic
  • Manufacturer part number (MPN): ACFAN00303A
  • EAN: 4895213704717
Specifications
Airflow
180 m³/h
Bearing type
Dual ball bearing
Cable length
0.3 m
Depth
120 mm
Fan connector
4-pin
Fan diameter
12 cm
Height
38 mm
Maximum air pressure
11.45 mmH2O
Maximum airflow
106 cfm
Maximum current
0.6 A
Number of screws
12
Operating temperature (T-T)
-10 - 70 °C
Package depth
137 mm
Package height
135 mm
Package weight
1.09 kg
Package width
135 mm
Product colour
Black
Pulse-width modulation (PWM) support
Yes
Quantity per pack
3 pc(s)
Rated current
0.33 A
Rated voltage
12 V
Rotational speed (max)
4000 RPM
Rotational speed (min)
600 RPM
Screws included
Yes
Starting voltage
3.1 V
Suitable location
Computer case
Type
Fan
Weight
320 g
Width
120 mm
