Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black

Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
Fan ARCTIC Freezer F12 PWM 120 mm 230-1350 RPM 0.3 sone Black
R634
The F12 PWM case fans are dedicated to outperform their counterparts in terms of cooling performance and noise level. Maximum Quietness, Minimum Vibration Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new ... Read More
Stock 5 Code 1432022 Brand ARCTIC Model ACFAN00145A Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The F12 PWM case fans are dedicated to outperform their counterparts in terms of cooling performance and noise level.

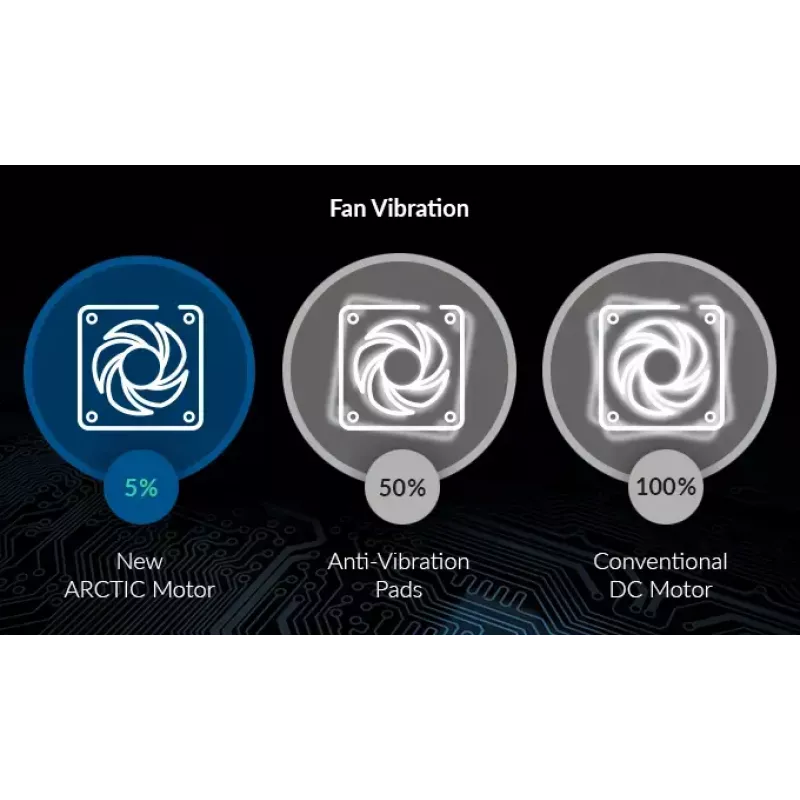

Maximum Quietness, Minimum Vibration

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.

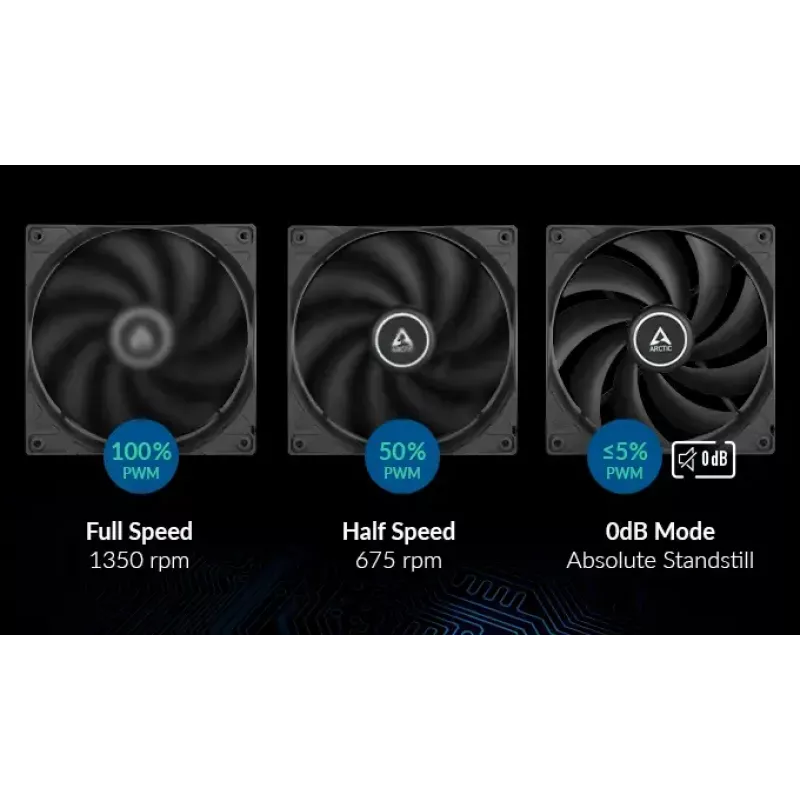

Perfect Case Fan Regulation with PWM

The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
Perfect Case Fan Regulation with PWM

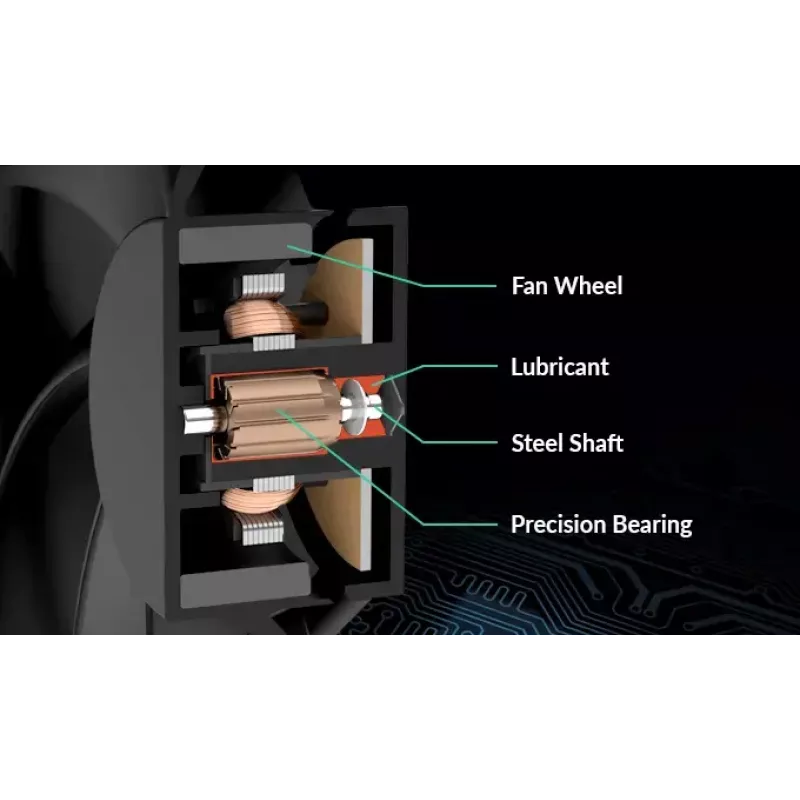

Long Service Life

Long Service Life

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

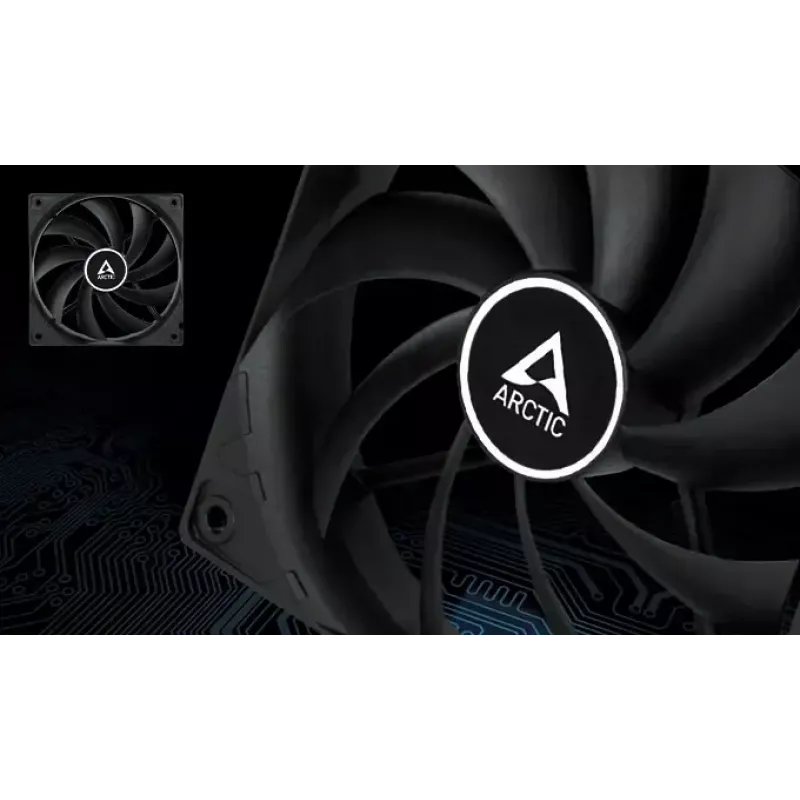

Innovative Design Enables Quiet and Efficient Ventilation

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Innovative Design Enables Quiet and Efficient Ventilation

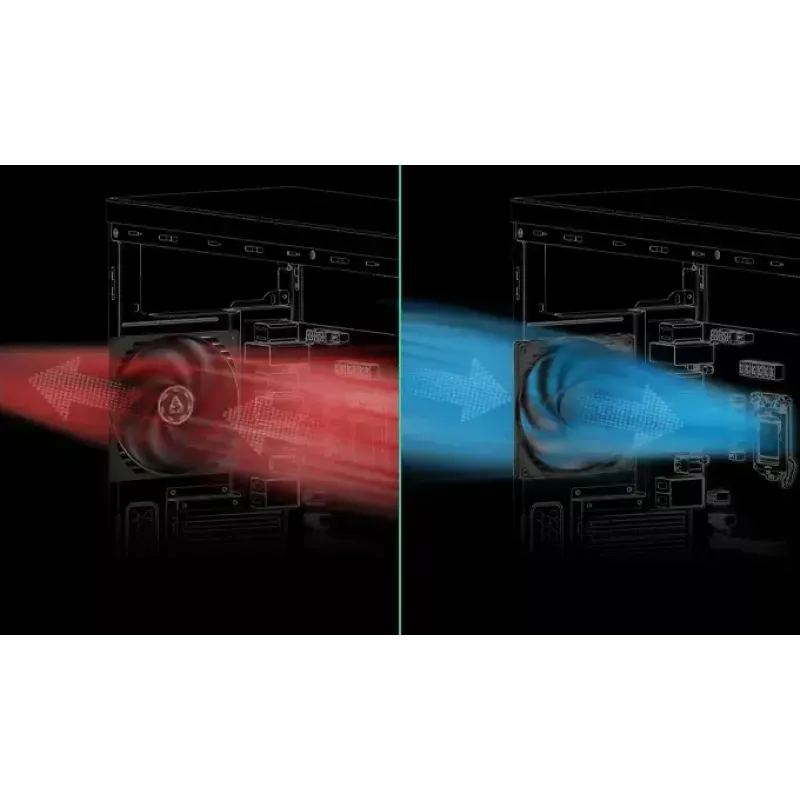

Two Way installation

Two Way installation

-Blow warm air out of the case-Draw cool air into your case

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the F12 PWM.
Quality You Can Rely On

How to use

Install the F12 PWM fan into a compatible case or radiator mount using standard fan screws. Connect the 4-pin PWM cable to a motherboard fan header that supports PWM control to enable automatic speed adjustment. Position the fan to ensure correct airflow direction for intake or exhaust as required by your system cooling configuration.

Key Highlights
  • Extremely quiet with low noise impeller
  • High airflow and static pressure
  • Fluid dynamic bearing ensures extended lifespan
  • PWM Plug
  • Computer case Fan 12 cm 1350 RPM
  • 53 cfm 1 mmH2O Fluid Dynamic Bearing (FDB)
  • Pulse-width modulation (PWM) support
  • Black
  • 5 pc(s)
Specifications
Airflow
90.1 m³/h
Bearing type
Fluid Dynamic Bearing (FDB)
Cable length
0.4 m
Compatible processor series
Not supported
Country of origin
China
Depth
120 mm
Fan connector
4-pin
Fan diameter
12 cm
Height
25 mm
Maximum air pressure
1 mmH2O
Maximum airflow
53 cfm
Noise level
0.3 sone
Number of screws
20
Operating temperature (T-T)
0 - 40 °C
Package depth
130 mm
Package height
123 mm
Package type
Box
Package weight
725 g
Package width
127 mm
Product colour
Black
Pulse-width modulation (PWM) support
Yes
Quantity per pack
5 pc(s)
Rated current
0.12 A
Rotational speed (max)
1350 RPM
Rotational speed (min)
230 RPM
Screws included
Yes
Starting voltage
5 V
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Voltage
12 V
Weight
105 g
Width
120 mm

Leaflet

Open Leaflet
