ARCTIC TP-3 Premium Performance Thermal Pad 120 x 20 mm, 1.5 mm
Shipping & Returns
-90x90h.webp "Build-Your-Own Gaming PC — Ryzen 7 7700 + RTX 5070, 32GB DDR5 | DistriNode")
-90x90w.webp "DistriNode Ryzen 5 8500G Office PC (Radeon Integrated Graphics) — Build Your Own")
R19,377
Ex Tax:R16,850
Ensure the lowest thermal resistance with our award-winning thermal interfaces. Well known for its outstanding quality, our high-performance MX thermal compound is a regular winner in performance tests. It offers a very low thermal resistance due to its minimum bond line thickness and is easy to apply, even for beginners. Thermal pads in various designs and sizes round out the product range.
High Performance - very soft
Based on silicone and a special filler, TP-3 also outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.

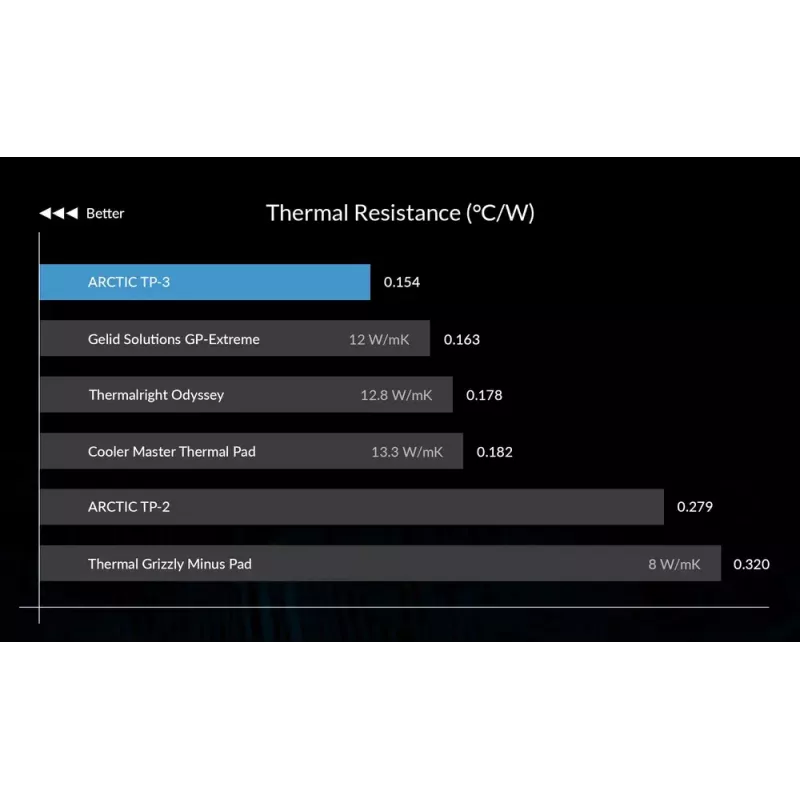

Minimization of thermal resistance
The thinner the pad, the lower the termal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.
Versatile Applications
Heat-conducting, vibration-damping, mouldable, electrically insulating - safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components and at the same time a good heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses, which can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets and ICs of all kinds, which are used in PCs, laptops, consoles, graphics cards and electronic devices in general.
Safe handling
The ARCTIC TP-3 is electrically insulating, non-adhesive and easy to handle. This means that optimal and safe heat transfer can be ensured in many application areas.
Bridging gaps
The TP-3 are softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility properties, the thermal pads act as the perfect gap filler and bridges uneven surface and air gaps without stressing sensitive and protruding components.
Available in different thicknesses and sizes
Our thermal pads are available in a choice of 0.5 mm, 1.0 mm and 1.5 mm. The 0.5 mm variant is ideally suited as an alternative to heat-conducting foil. The pads are available in different dimensions, depending on their thickness. If required, the pads can also be independently cut to any size.
How to use
Measure the area to be thermally connected and cut the thermal pad to the required shape and size if necessary. Remove protective liners from both sides of the pad and place it between the component and the heatsink, ensuring full contact without air gaps. Apply even pressure to seat the pad; no curing or special tools are required. If repositioning is needed, lift gently and reapply a new pad if the original shows deformation.
Recommendations
For optimal performance, choose the correct pad thickness for the gap you need to fill and avoid stretching the pad during installation. Store unused pads in a cool, dry place away from dust and direct sunlight. Do not use thermal pads as an electrical insulator unless the product specifications state dielectric properties.
