ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM

ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
R309
The P14 PWM features completely redesigned fan blades and is optimised for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.The wide RPM range from 200 to 1700 RPM can be regulated steplessly via PWM.The newly develo... Read More
Stock 10 Code 1469517 Brand ARCTIC Model ACFAN00222A Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The P14 PWM features completely redesigned fan blades and is optimised for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.The wide RPM range from 200 to 1700 RPM can be regulated steplessly via PWM.The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
Optimised for Static Pressure

Optimised for Static Pressure

During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators.

More Efficient Technology

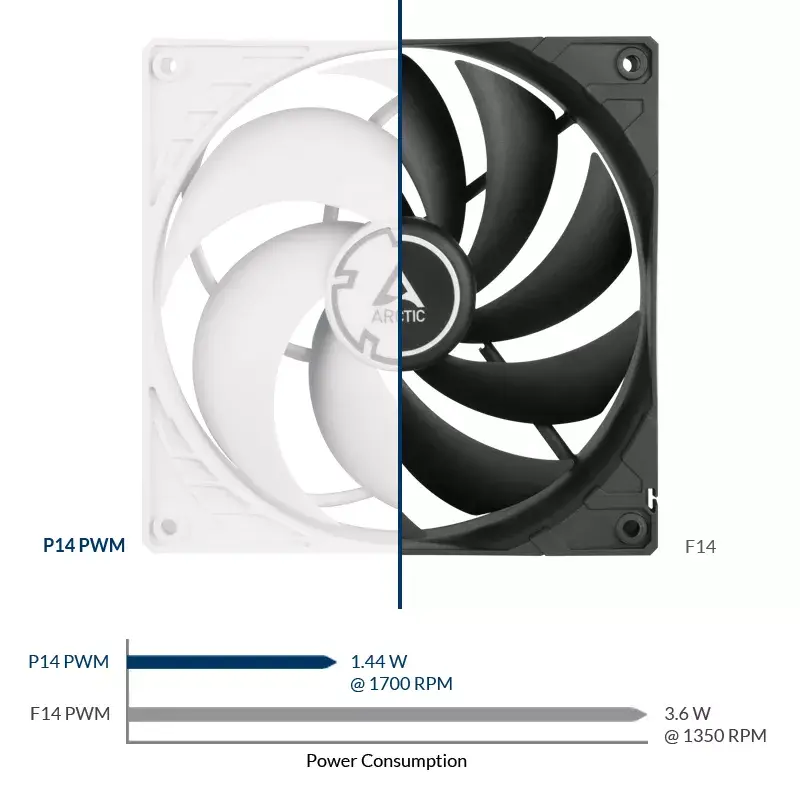

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
More Efficient Technology
Maximum Quietness, Minimum Vibration

Maximum Quietness, Minimum Vibration

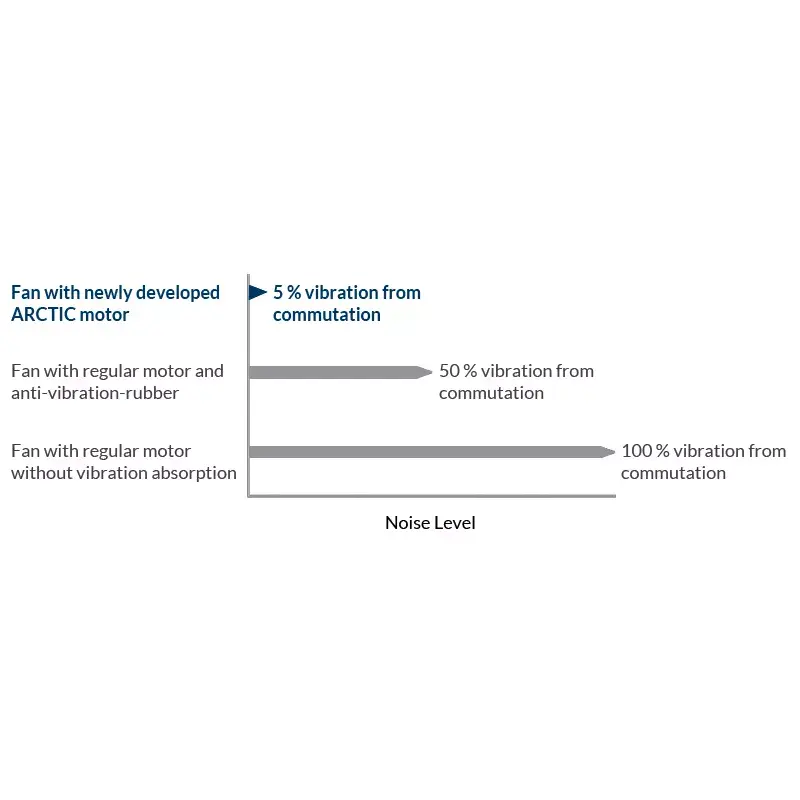

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

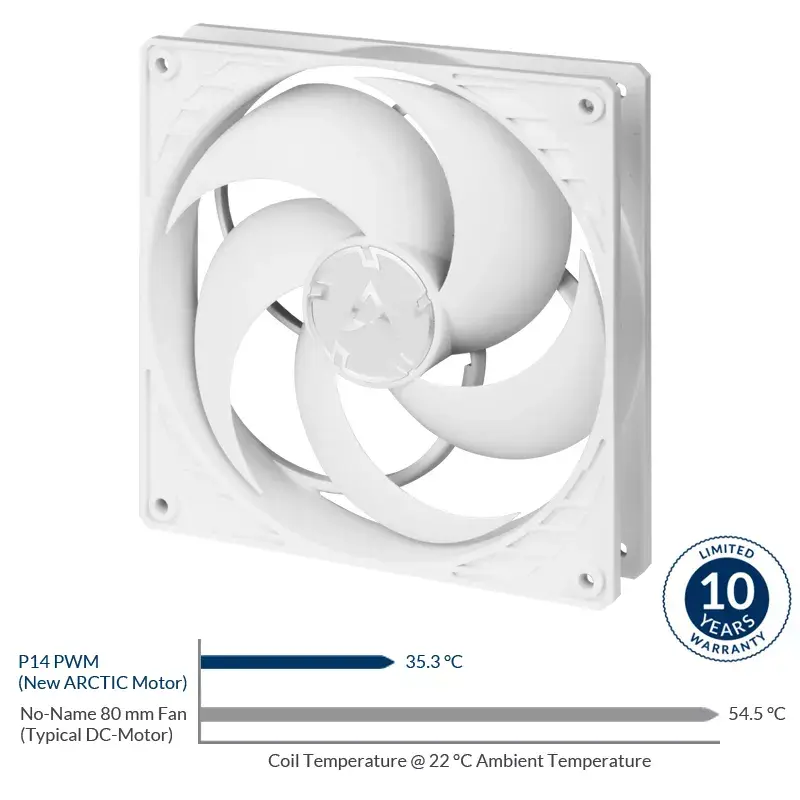

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
Extended Life Span
200 to 1700 RPM regulated via PWM

200 to 1700 RPM regulated via PWM

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

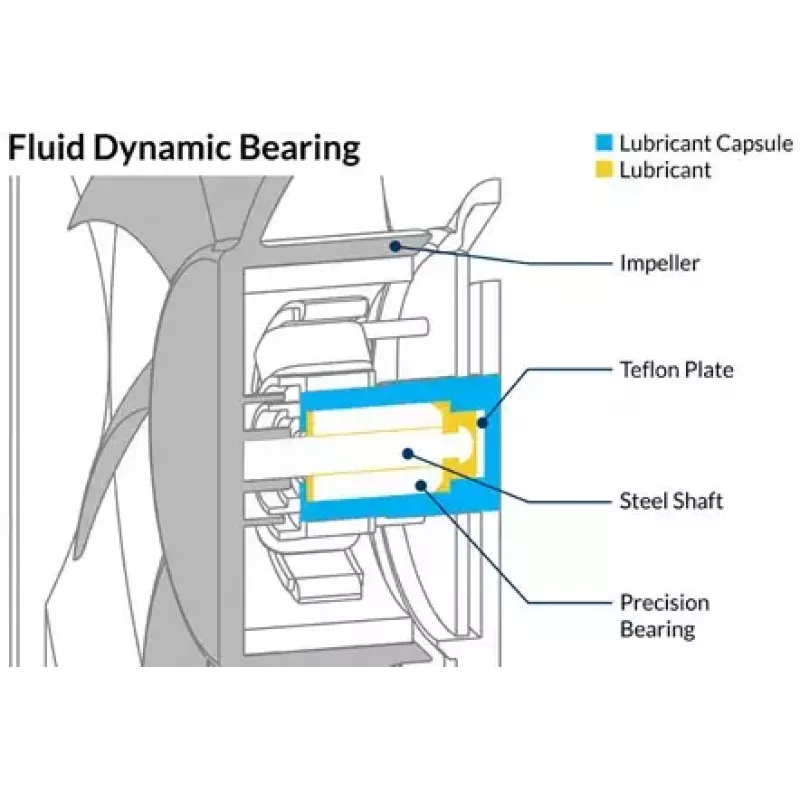

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
High Quality Bearing

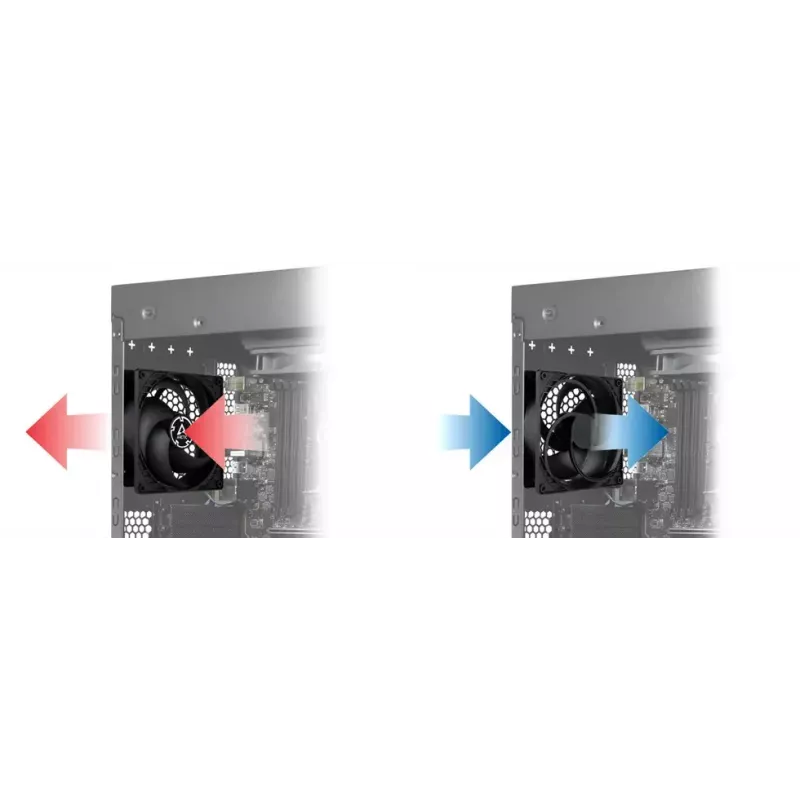

Two Way Installation

Two Way Installation

- Push warm air out of the case- Pull cool air into your case

How to use

Install the fan onto the case, radiator, or heatsink using the appropriate mounting holes and screws, ensuring correct airflow direction toward the component to be cooled. Connect the fan to a PWM-capable header on the motherboard or a compatible fan controller to enable stepless speed regulation between 200 and 1700 RPM. Verify secure power connection to the 12 V supply and avoid obstructing the blades during operation.

Recommendations

For optimal cooling on heatsinks and radiators, position the ARCTIC P14 PWM so that its pressure-optimised blades push air directly through fins or dense filters; use PWM control to balance noise and cooling according to workload, and maintain periodic cleaning to preserve airflow and prolong bearing life.

Key Highlights
  • Cooling CPU heatsinks and radiators where high static pressure is required
  • PC cases with restricted airflow or dust filters
  • Systems needing quiet, controllable fans for mixed-load operation
  • Fan diameter: 140 mm
  • Dimensions: 140 x 140 x 27 mm
  • Voltage: 12 V
  • Speed (PWM): 200–1700 RPM
  • Maximum airflow: 123.76 m³/h
  • Noise level: 0.3 sone
  • Bearing type: Fluid Dynamic Bearing
  • Color: White
  • Weight: 0.194 kg
  • Brand / MPN / EAN: ARCTIC / ACFAN00222A / 4895213703093
Specifications
Airflow
123.76 m³/h
Bearing type
Fluid Dynamic Bearing (FDB)
Cable length
0.4 m
Compatible processor series
Not supported
Depth
140 mm
Fan connector
4-pin
Fan diameter
14 cm
Harmonized System (HS) code
84733080
Height
27 mm
Maximum air pressure
2.4 mmH2O
Maximum airflow
72.8 cfm
Noise level
0.3 sone
Number of fan blades
5
Number of fans
1 fan(s)
Number of screws
4
Package depth
143 mm
Package height
29 mm
Package type
Box
Package weight
234 g
Package width
143 mm
Power consumption (typical)
1.44 W
Product colour
White
Pulse-width modulation (PWM) support
Yes
Quantity per pack
1 pc(s)
Rated current
0.12 A
Rotational speed (max)
1700 RPM
Rotational speed (min)
200 RPM
Screws included
Yes
Starting voltage
3.9 V
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Voltage
12 V
Weight
194 g
Width
140 mm

Leaflet

Open Leaflet
Price history over the last 6 months
ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
Current
R309
Lowest
R279
Highest
R349
Change 24H
+R27   +10%
Week
+R30   +11%
Month
-R15   -5%
