Arctic BioniX P12 A-RGB 120mm PWM Fan with Daisy Chain, 400-2300 RPM, 77.6 CFM, Black

When your PC components push performance, heat and noise are the enemies. The Arctic BioniX P12 A-RGB takes on both with a fluid dynamic bearing and precise PWM control, keeping your case cool without turning your system into a wind tunnel.

Who is it for

Designed for PC builders and enthusiasts who value a balance of quiet operation, strong airflow, and addressable RGB lighting. Whether upgrading case airflow or replacing a noisy stock fan, the BioniX P12 A-RGB fits 120mm radiators and case mounts.

Main features

• 120mm PWM-controlled fan with a wide speed range from 400 to 2300 RPM.
• Twelve addressable RGB LEDs create vibrant lighting effects that can be synchronized with your motherboard via the 3-pin A-RGB connector.

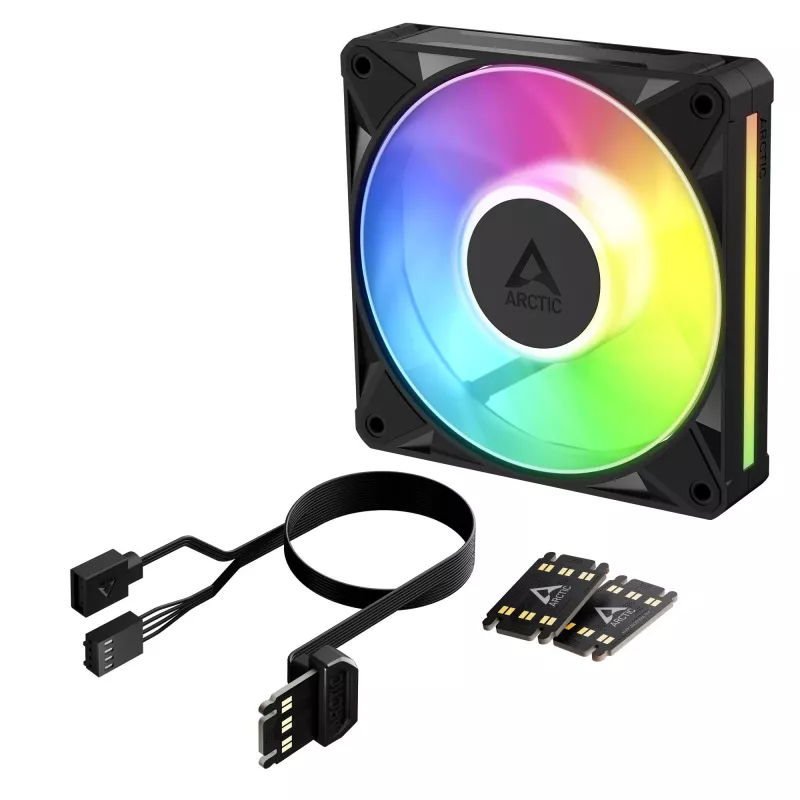

• Daisy chain functionality for both the PWM fan signal and A-RGB lighting simplifies cable management and allows multiple fans to be connected in series.
• Fluid Dynamic Bearing reduces friction and wear, ensuring long life and quieter operation compared to sleeve or ball bearings.
• Maximum airflow of 77.6 CFM and static pressure of 2.1 mm H₂O make it effective for case exhaust or intake, as well as radiator mounts.

Specifications

• Fan Diameter: 120 mm
• Speed Range: 400 - 2300 RPM
• Airflow: 77.6 CFM (131.92 m³/h)
• Static Pressure: 2.1 mm H₂O
• Noise Level: 0.3 Sone
• Bearing: Fluid Dynamic Bearing
• PWM Control: Yes
• RGB Type: Addressable RGB (A-RGB), 12 LEDs
• Fan Connector: 4-Pin PWM
• RGB Connector: 3-Pin A-RGB (5V-DI-G)
• Daisy Chain: Yes (PWM & A-RGB)
• Rated Voltage (Fan): 12 V DC
• Rated Current (Fan): 0.08 A
• LED Voltage/Current: 5 V DC / 0.4 A
• Cable Length: 400 mm
• Colour: Black

Tips

Use the included PWM and A-RGB cables to connect fans in series, keeping wiring tidy. Set a custom fan curve in your BIOS for optimal balance between cooling and silence. The fan's high static pressure also makes it a good choice for thick radiators.
