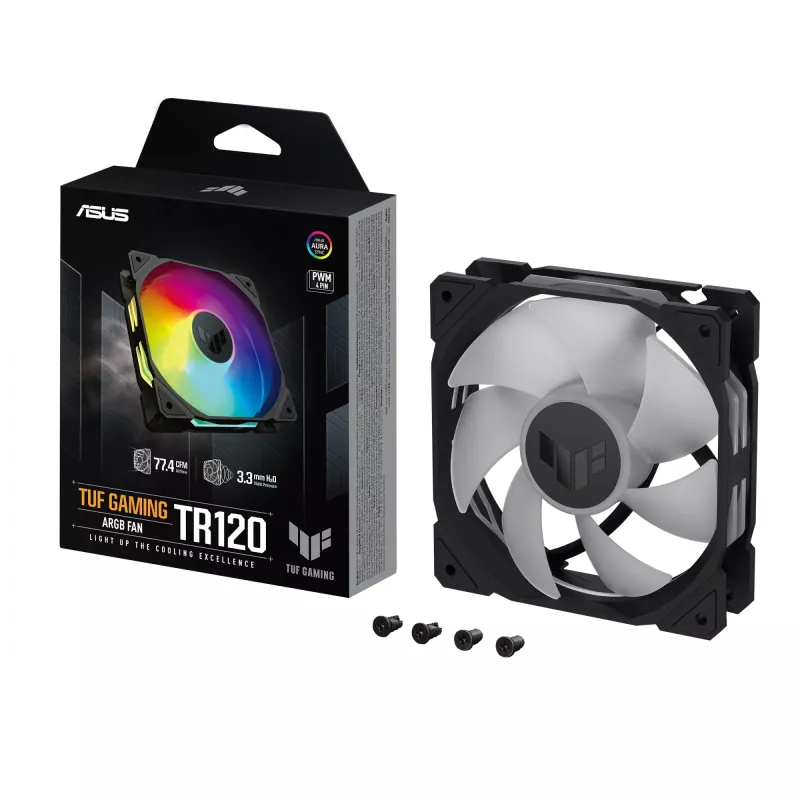

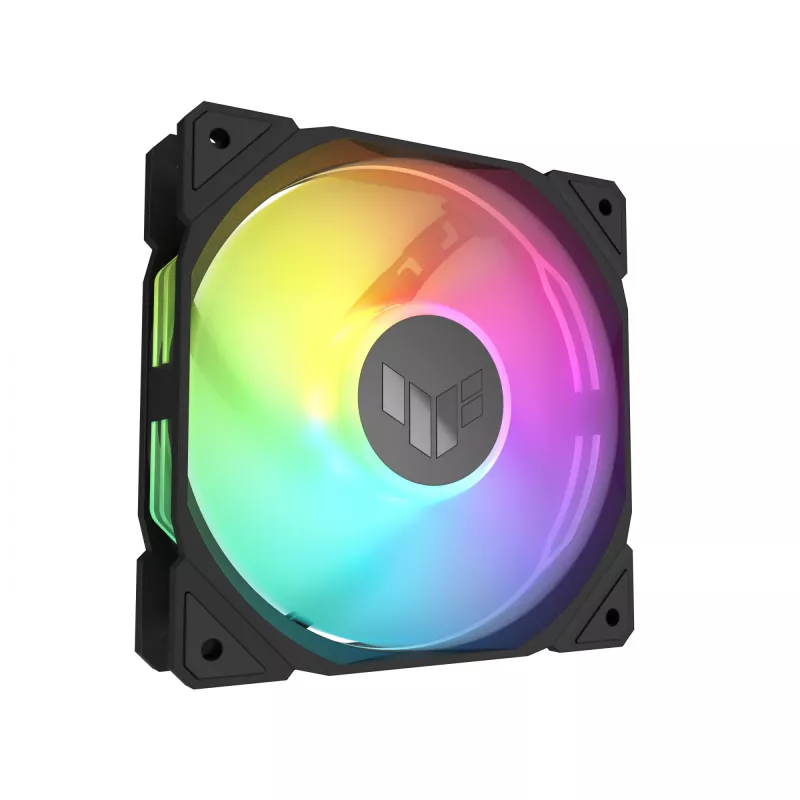

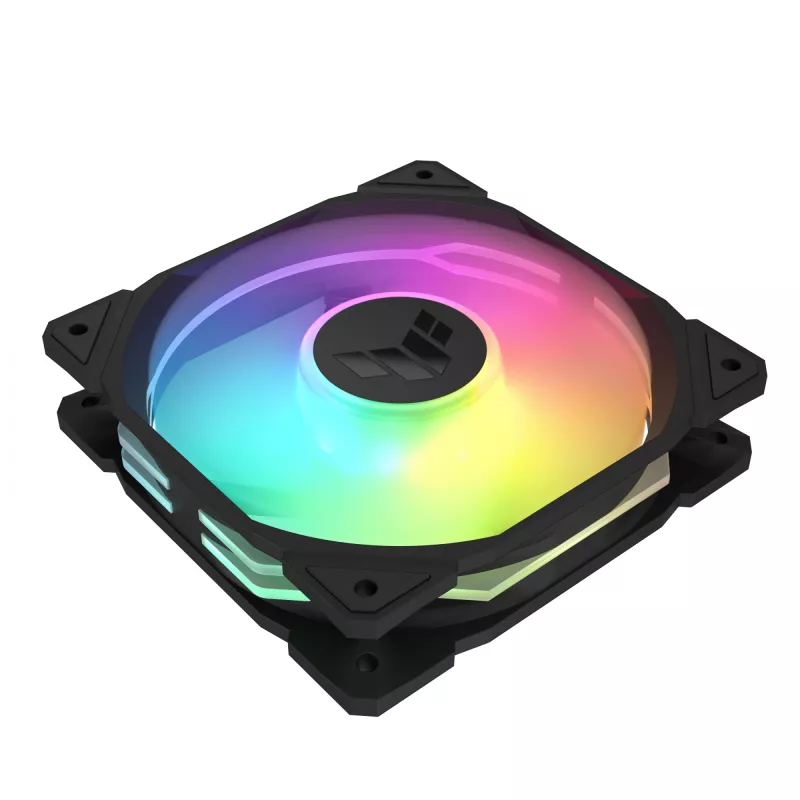

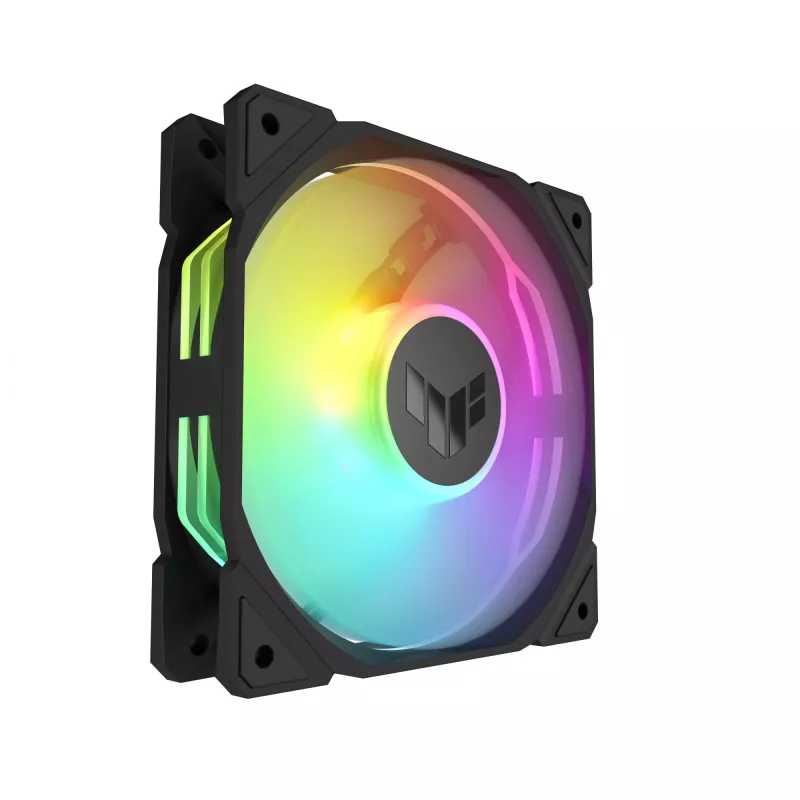

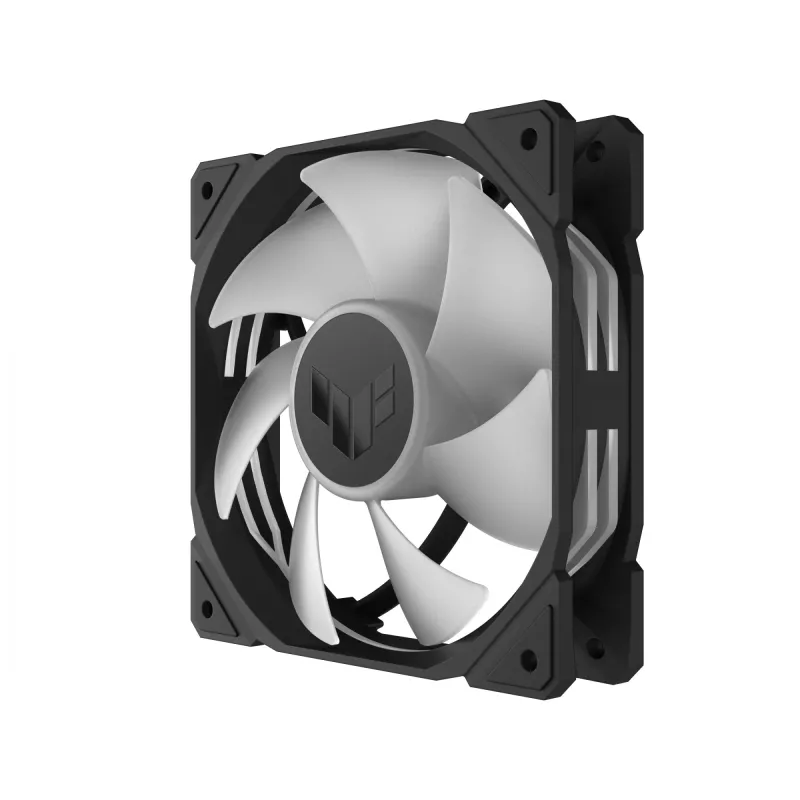

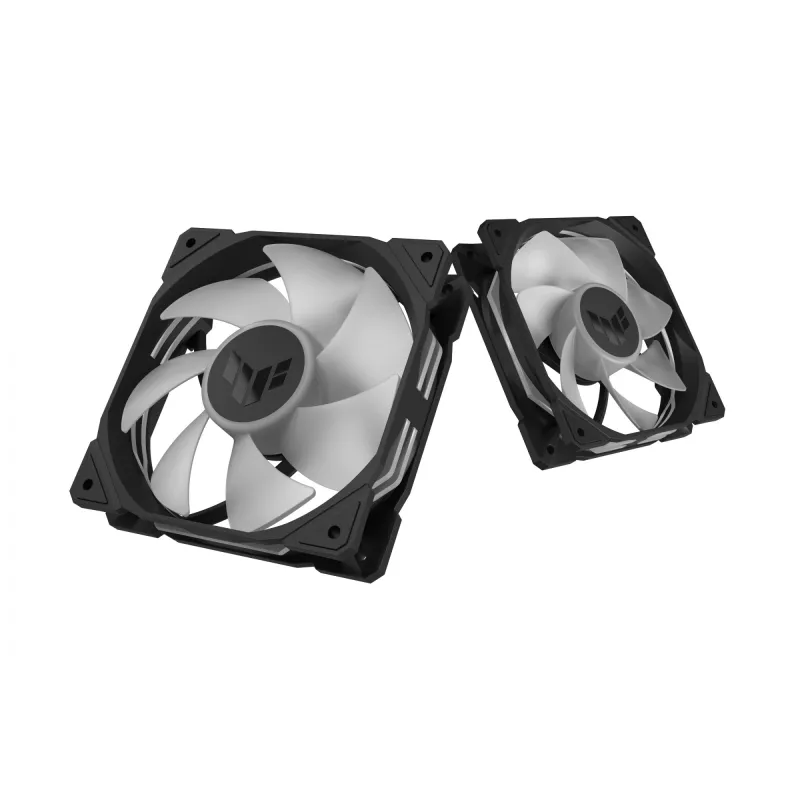

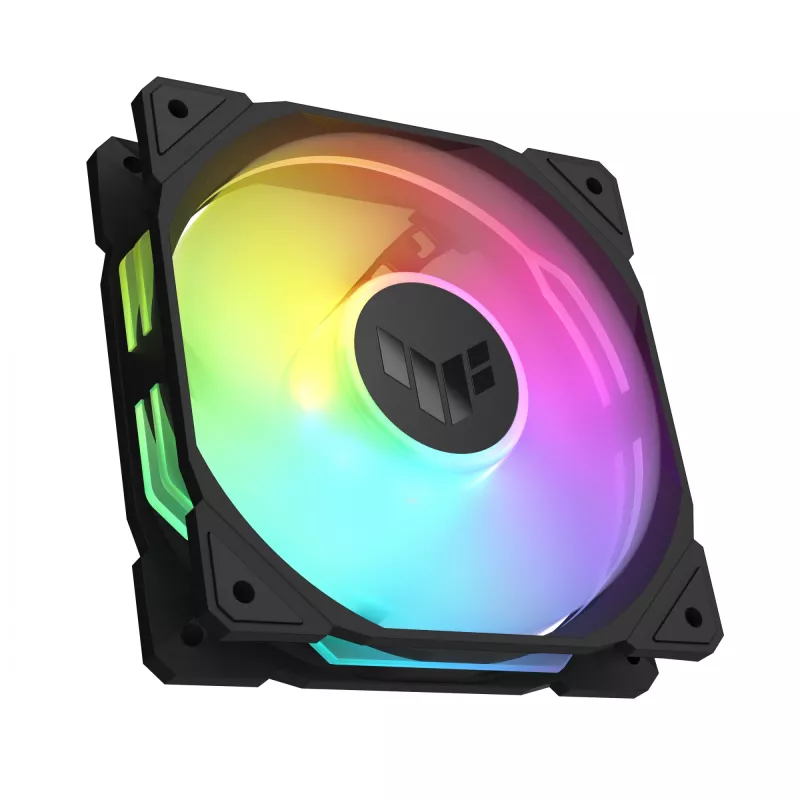

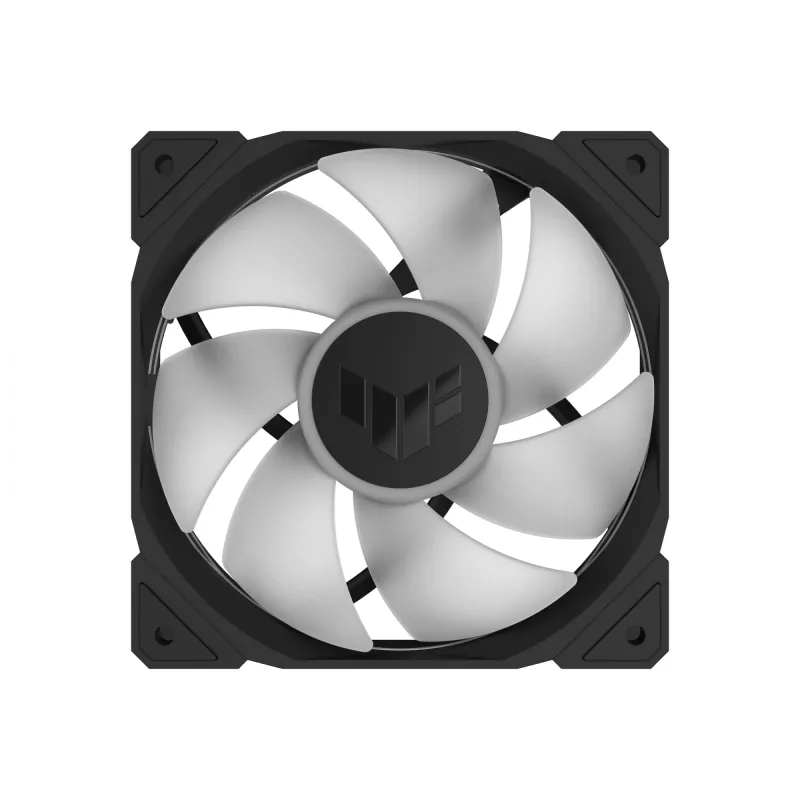

ASUS TUF Gaming TR120 ARGB Fan - Single Pack Computer case 12 cm Black

The ASUS TUF Gaming TR120 ARGB is a 120 mm case fan with a 28 mm thick frame and hydraulic bearing designed for quiet, efficient cooling and enhanced static pressure. It combines high airflow and 3.3 mmH2O static pressure to perform well on chassis intakes/exhausts and on radiators. The fan includes an addressable double-layer LED array and dual side lighting patterns compatible with Aura Sync, and is available in black with standard and reverse orientations to match different build layouts.

Advantages

The extra-thick 28 mm frame improves structural rigidity for stable performance under high airflow conditions. Optimized fan blade design and motor deliver up to 77.4 CFM airflow and 3.3 mmH2O static pressure for effective heat dissipation on radiators and inside cases. Addressable double-layer LEDs provide even, vivid ARGB illumination across each blade, while dual side patterns allow flexible lighting arrangements. Available in standard and reverse versions to maximize cooling or lighting depending on installation.

Suitable for

• PC cases requiring 120 mm intake or exhaust fans
• CPU or GPU radiator cooling in liquid-cooling loops
• Gaming rigs where ARGB lighting synchronization (Aura Sync) is desired
• Builds needing higher static pressure for dense dust filters or radiators

Key specifications

• Type: 120 mm case fan
• Fan diameter: 120 mm
• Frame thickness: 28 mm
• Static pressure: 3.3 mmH2O
• Airflow: 77.4 CFM
• Bearing: Hydraulic bearing
• Colour: Black
• MPN: 90DA0090-B09000
• EAN: 4711387297261
• Weight: 0.172 kg

How to use

Install the TR120 ARGB into a 120 mm fan mounting on your case or radiator, observing airflow direction marked on the frame to achieve the desired intake or exhaust configuration. Connect the ARGB header and 3- or 4-pin power connector as required by your motherboard or controller; use the reverse version if you require inverted airflow or different lighting orientation. Secure the fan with the supplied screws and verify cable routing to avoid obstructing fan blades.

Recommendations

For optimal cooling and lighting results, use the TUF Gaming TR120 ARGB in matched sets and synchronize lighting via Aura Sync. Choose standard orientation to prioritize airflow direction or the reverse version when lighting presentation matters more; regularly clean dust filters and fan blades to maintain static pressure and airflow.
