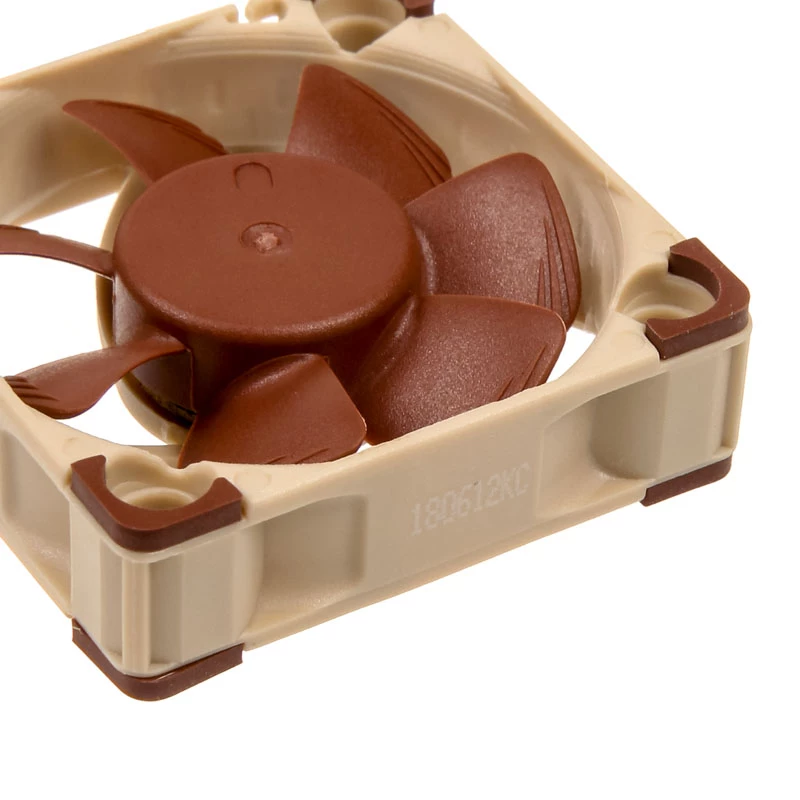

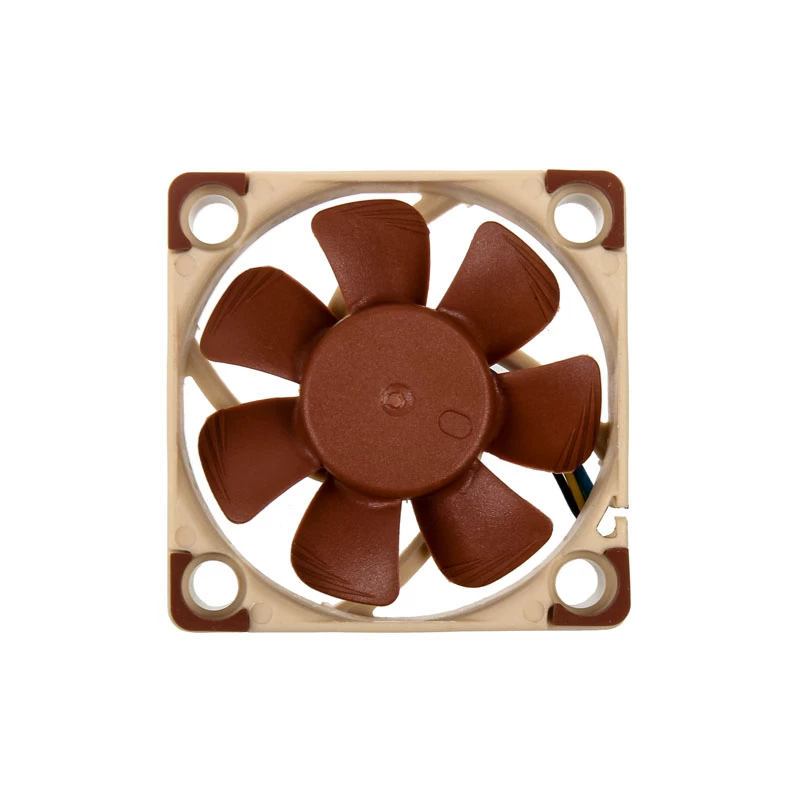

Fan Noctua NF-A4x10 PWM 40x10 mm, 12 V, PWM, 1000–5000 RPM, 8.9 m³/h, SSO bearing, red/beige

The Noctua NF-A4x10 PWM is a premium 40x10 mm cooling fan engineered for compact systems that require efficient airflow and low noise. It features advanced aerodynamic elements including Flow Acceleration Channels, Noctua's AAO frame with Stepped Inlet Design and Inner Surface Microstructures, a reduced motor hub for increased blade area, and a high-quality SSO2 bearing. The PWM model uses Noctua's custom NE-FD1 PWM IC with Smooth Commutation Drive (SCD) for quiet automatic speed control and includes a Low-Noise Adaptor and OmniJoin adaptor set for flexible connectivity.

Advantages

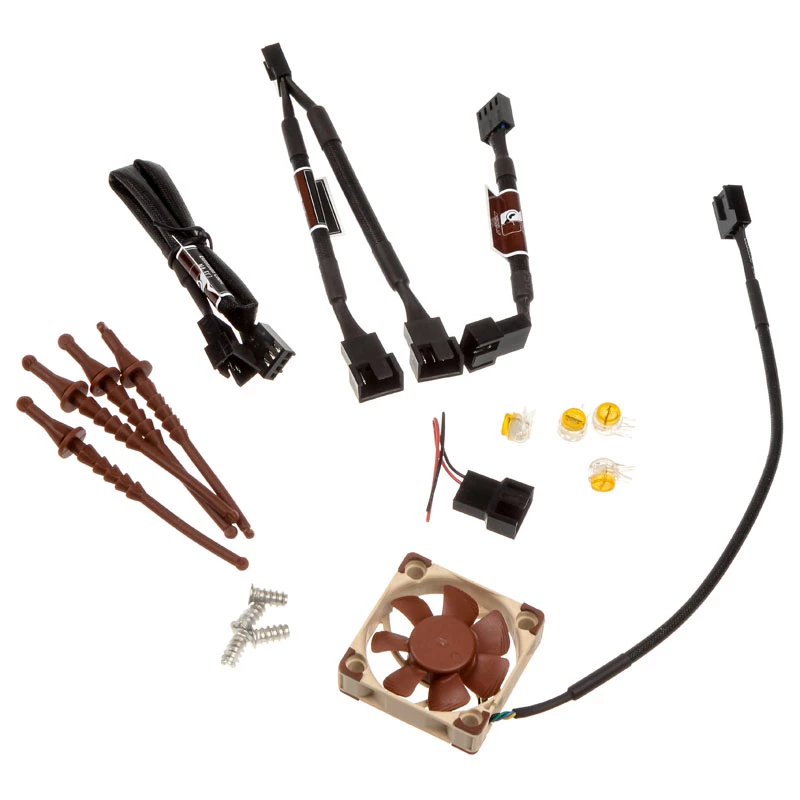

The NF-A4x10 PWM delivers strong performance for its size thanks to a compact motor hub that increases blade surface area and aerodynamically optimised blade and frame designs that improve airflow and pressure while reducing vortex and intake noise. Integrated anti-vibration pads minimise vibration transmission without affecting compatibility with standard mounts. The custom PWM controller with SCD reduces switching noise at low speeds and allows the fan to stop at 0% PWM for semi-passive cooling. The package includes a Low-Noise Adaptor to lower maximum RPM, an OmniJoin adaptor set for proprietary headers, extension and Y-cables, and carries a six-year manufacturer's warranty.

Suitable for

• Small form-factor PCs and mini-ITX cases
• Compact server or network appliance cooling
• Cooling for heatsinks and cases with limited space
• Applications requiring quiet operation and semi-passive cooling

Key specifications

• Model: Noctua NF-A4x10 PWM (MPN: NF-A4x10 PWM, EAN: 9010018100440)
• Size: 40 x 10 mm (fan diameter 40 mm)
• Voltage: 12 V
• Speed range: 1000–5000 RPM (max; L.N.A. reduces max to 3700 RPM)
• Airflow: 8.9 m³/h
• Max static pressure: 1.95 mmH2O
• Bearing: SSO2 (Self-Stabilising Oil-pressure Bearing, 2nd generation)
• Colour: Beige, red accents
• Cabling: 20 cm primary cable, 30 cm sleeved extension, 4-pin PWM, 4-pin Y-cable included
• Warranty & reliability: MTTF >150,000 hours; 6-year manufacturer's warranty

How to use

Connect the 4-pin PWM connector to a compatible motherboard or fan controller header to enable automatic speed control. If the system requires lower maximum speed, attach the supplied Low-Noise Adaptor to cap the maximum RPM to 3700. Use the OmniJoin adaptor set to adapt the fan to proprietary headers by cutting the original cable and fixing it with the supplied Scotchlok connectors. For longer reach or daisy-chaining a second fan to the same header, use the supplied 30 cm extension cable or the 4-pin Y-cable. Mount the fan using standard screws or clips compatible with 40 mm fans; the integrated anti-vibration pads maintain compatibility with typical heatsink and case mounts.

Recommendations

Install the fan so airflow direction matches your cooling layout and ensure the PWM header supports 4-pin speed control to take full advantage of the NE-FD1 IC and semi-passive stop-at-0% functionality. Use the Low-Noise Adaptor when lower maximum speed or reduced acoustic output is preferred.
