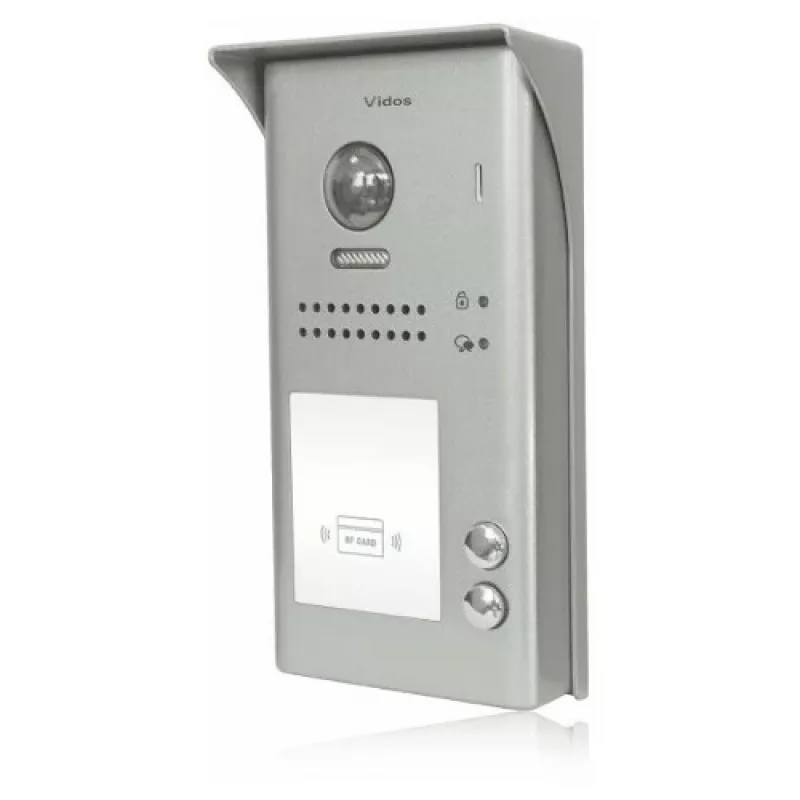

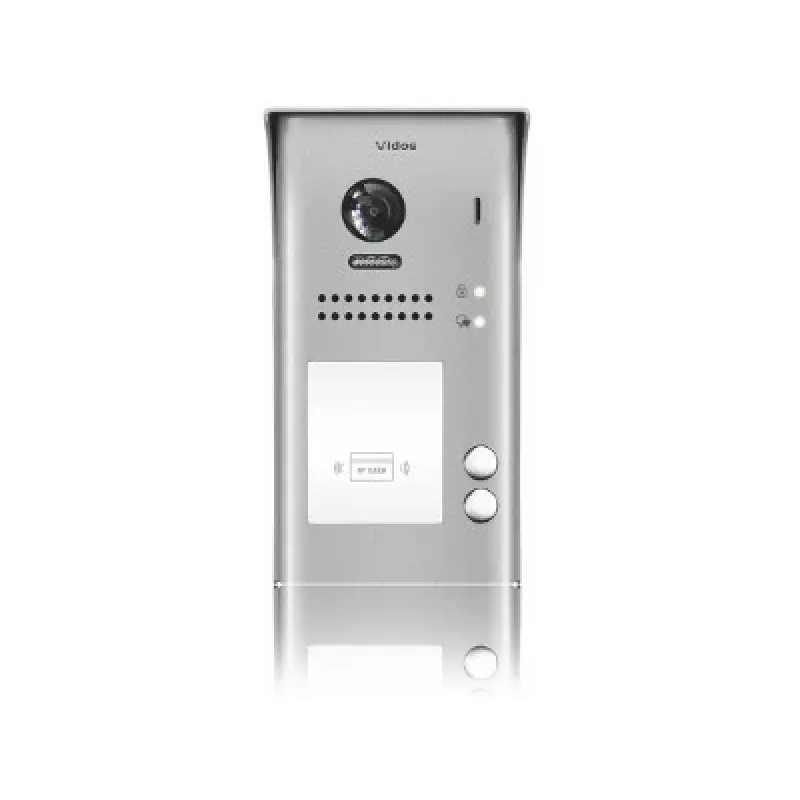

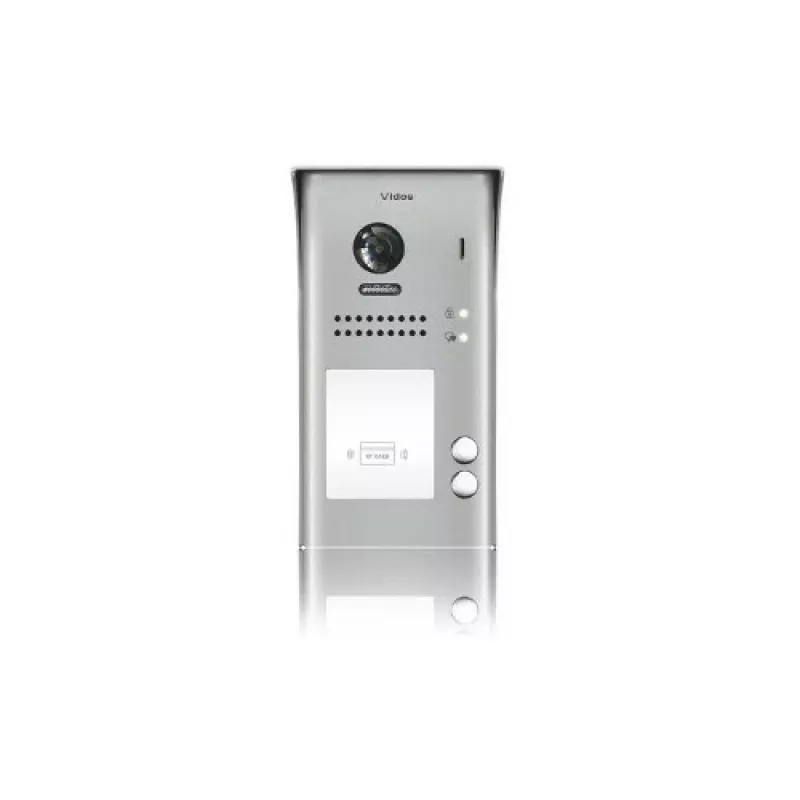

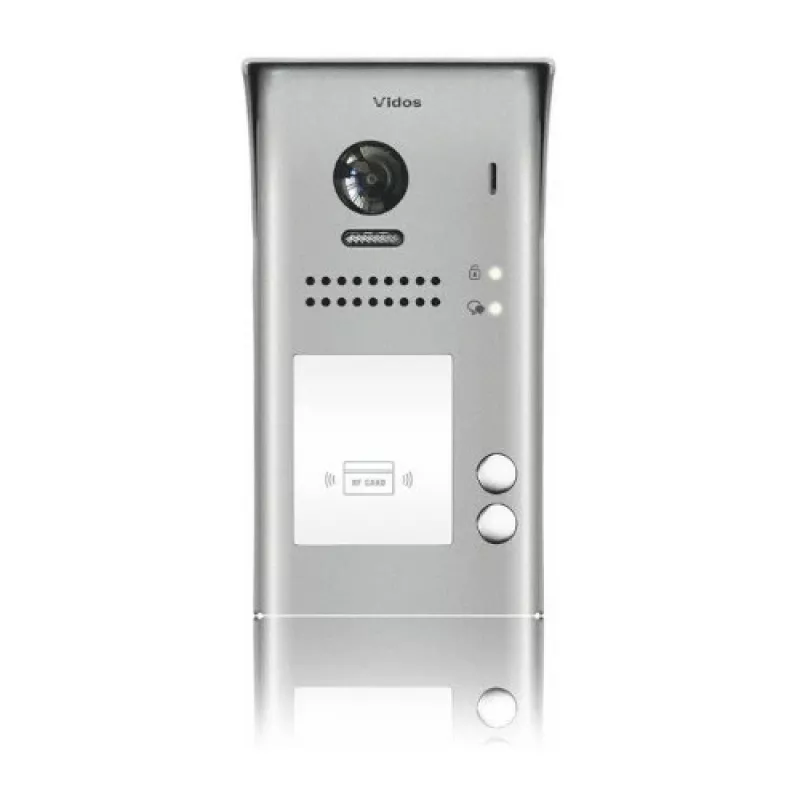

VIDOS DUO S1102A 2-Family Video Door Station, Stainless Steel, Full HD, 2-Wire, Black

The VIDOS DUO S1102A is a professional 2-family video door station designed for the VIDOS DUO 2-wire system. Featuring a stainless steel front panel and aluminum alloy housing, it offers robust vandal-resistant construction and an IP65 rating for outdoor use. The integrated 2.0 Mpix CMOS camera delivers Full HD 1080p video with a wide 170° viewing angle, while IR LEDs ensure clear night vision. Two relay outputs allow control of a gate and pedestrian gate, and the backlit blue LED buttons provide intuitive operation. Power is supplied via DC 24V from the VIDOS DUO system power supply.

Advantages

High-quality stainless steel and aluminum construction ensures durability and vandal resistance. Full HD video with wide-angle lens and IR night vision provides clear identification day and night. Simple non-polarized 2-wire connection simplifies installation. Two relay outputs enable separate control of main gate and pedestrian gate.

Suitable for

• Single-family homes with two separate units or entrances
• Small apartment buildings requiring two-user access
• Office or commercial premises with two separate zones

Key specifications

• System: VIDOS DUO 2-Wire
• Number of families: 2
• Camera: 2.0 Mpix CMOS, Full HD 1080p
• Viewing angle: approx. 170°
• Night vision: IR LEDs
• Material: Stainless steel front, aluminum alloy housing
• Mounting: Surface mount
• Relay outputs: 2
• Backlit buttons: Yes (blue LED)
• IP rating: IP65
• Vandal resistance: Yes
• Power supply: DC 24V (from system)
• Operating temperature: -30°C to +50°C
• Compatibility: Exclusively with VIDOS DUO monitors
• Audio: Two-way

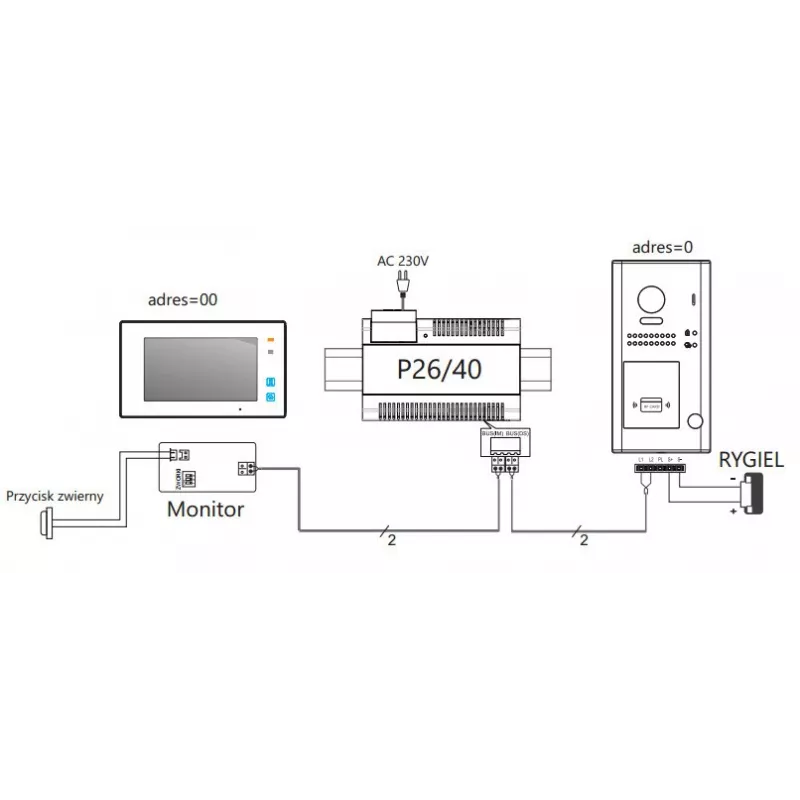

• Wiring: Non-polarized 2-wire

Recommendations

For optimal performance, pair with VIDOS DUO indoor monitors and use the recommended VIDOS DUO system power supply. Ensure proper surface mounting for weatherproof seal.
