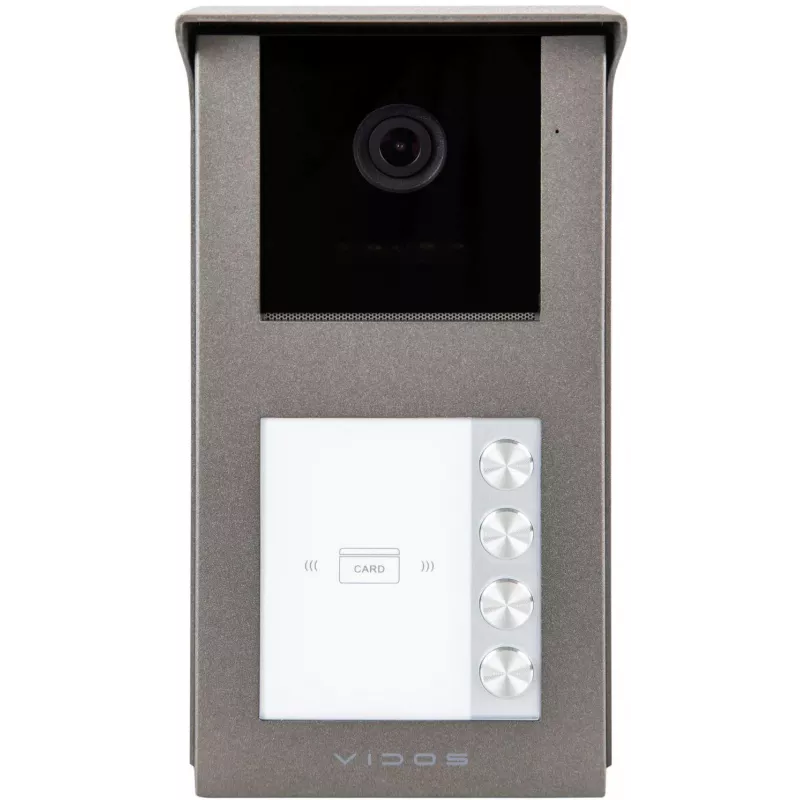

VIDOS 2IP S201-4 Outdoor Panel

The VIDOS 2IP S201-4 Outdoor Panel is a high-quality IP video intercom station designed for secure and reliable two-way communication at building entrances. Part of the VIDOS 2IP 2-wire IP system, this surface-mount panel combines a 2.0 MP Full HD camera with a 170° wide-angle lens, infrared night vision, and a durable aluminum alloy housing with IK07 vandal resistance and IP65 weather protection. It features one physical call button, built-in microphone and speaker, and two relay outputs for door or gate control, powered via DC 24V from the 2IP bus.

Advantages

This outdoor panel offers crystal-clear video and audio communication, robust construction for harsh environments, and easy integration into the VIDOS 2IP system. Its wide-angle lens and IR LEDs ensure visibility day and night, while the vandal-resistant design provides long-term security.

Suitable for

• Residential and commercial building entrances
• Access control for single-family homes, apartment blocks, and offices
• Integration with VIDOS 2IP video intercom systems

Key specifications

• Product Type: IP Video Intercom Outdoor Panel
• System Compatibility: VIDOS 2IP (2-wire IP System)
• Camera Resolution: 2.0 Megapixel (Full HD 1080p)
• Lens Angle: 170° Wide-angle
• Night Vision: Infrared (IR) LEDs
• Material: Aluminum Alloy
• Vandal Resistance: IK07 rated
• Ingress Protection: IP65
• Mounting Type: Surface Mount
• Call Buttons: 1 (Physical)
• Audio Communication: Two-way (Built-in Microphone & Speaker)
• Relay Outputs: 2 (for door/gate control)
• Power Supply: DC 24V (from 2IP system)
• Operating Temperature: -30°C to +50°C
• Connectivity: 2-wire IP (VIDOS 2IP Bus)

Recommendations

For optimal performance, pair this outdoor panel with compatible VIDOS 2IP indoor stations and power supplies. Ensure proper surface mounting and weatherproofing for outdoor installations.
