Video intercom system Hikvision DS-KIS613-S 7 inch (17.8 cm) display, 2688×1520 image, H.264/H.265/M-JPEG, IP65, IR night vision

Hikvision DS-KIS613-S is a video intercom system with a 17.8 cm (7") display that delivers clear video streams and supports H.264, H.265 and M-JPEG compression. The system provides a maximum video resolution of 2688×1520 pixels and can operate in 1520p, 1080p and 720p modes. The outdoor unit features IR LEDs for night-time visibility up to 3 m, an omnidirectional microphone for two-way audio, and an IP65-rated plastic housing for protection against dust and rain. The kit is designed for residential and small commercial access control and visitor communication, with wired and wireless connectivity options including Wi‑Fi and Bluetooth and standard PoE power support.

Advantages

The system combines a high-resolution indoor display with an outdoor station that supports 4MP imaging and a wide 150° viewing angle, enabling detailed monitoring of entrances. Multiple unlocking methods are available — card, Bluetooth, mobile app integration and local indoor station control — to accommodate different access workflows. Video recording and playback can be managed from the indoor station or the door station, and the included components such as a PoE switch and TF card simplify installation and initial setup. The IP65 rating and night vision capability extend reliable operation in outdoor conditions.

Suitable for

• Residential apartment entrances and private houses
• Small office or retail entry points requiring visitor verification
• Properties needing remote unlocking via mobile app or local control
• Environments where night-time identification at short range (up to 3 m) is required

Key specifications

• Display size: 17.8 cm (7")
• Maximum video resolution: 2688×1520 pixels (supports 1520p/1080p/720p)
• Video compression: H.264, H.265, M-JPEG
• Camera resolution: 4 MP with approximately 150° field of view
• Night vision: IR LEDs for visibility up to 3 m
• Audio: Omnidirectional microphone for two-way communication
• Ingress protection: IP65-rated outdoor housing
• Power and connectivity: Standard PoE support; wired and wireless options including Wi‑Fi and Bluetooth
• Door control: Supports control of two locks and multiple unlocking methods

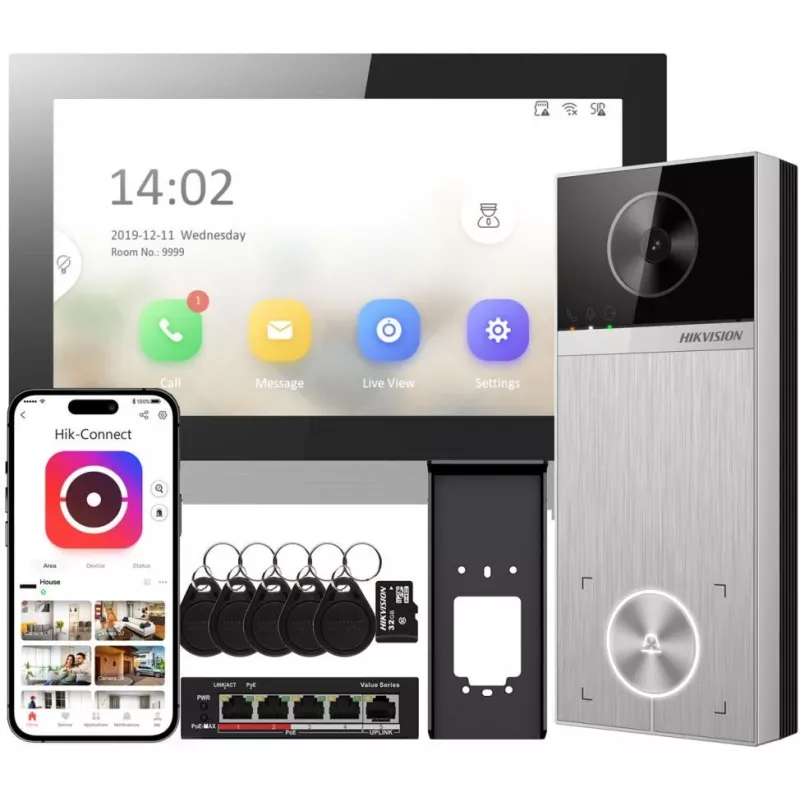

• Included accessories: Indoor and outdoor stations, PoE switch, power supply, TF card and access credentials (cards/key fobs)

How to use

Mount the outdoor station at the entrance height that provides a clear view of visitors and install the indoor display in a convenient location inside the property. Connect network and power using the included PoE switch or separate power supply, then perform initial configuration through the indoor station interface or the mobile app. Pair access credentials such as cards or key fobs and set up Bluetooth and Wi‑Fi if required. Use the indoor display or mobile app to view live video, communicate with visitors, record or play back clips, and control door locks.

Recommendations

For best image framing, install the outdoor station so the camera captures the full doorway and any approach path within the 150° field of view. Ensure the IR LEDs are unobstructed for reliable night vision up to 3 m. Use PoE for centralized power management and regularly back up important recordings from the TF card to external storage or cloud services to maintain event history.
