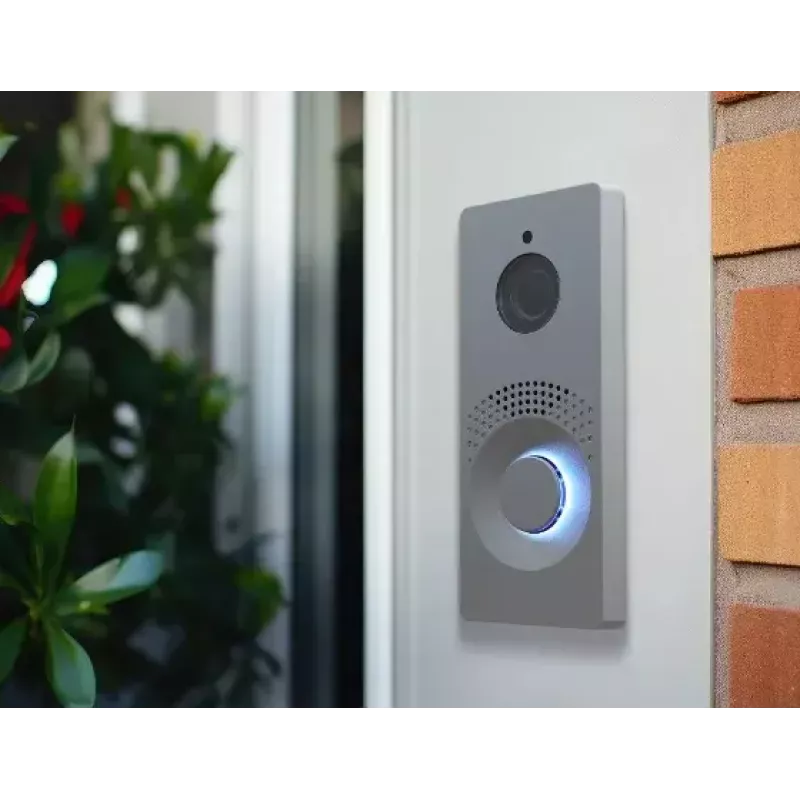

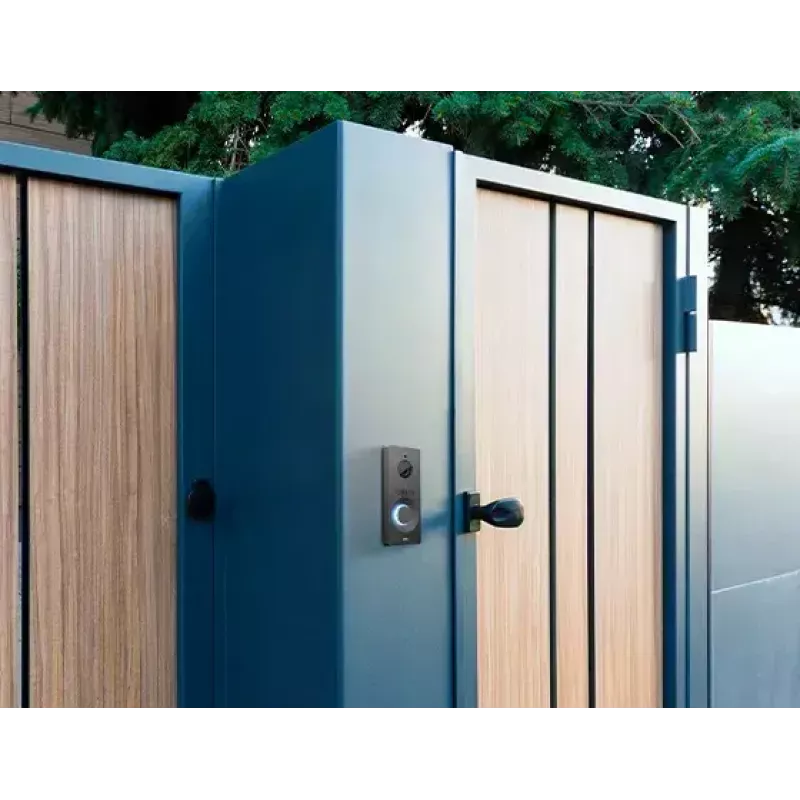

2N IP One video intercom system Grey 1920x1440 resolution IP66

The 2N IP One video intercom system is a grey-finished communication device designed for secure and convenient access control. It provides high-quality video and audio transmission, durable outdoor protection, and standard network connectivity to integrate with existing security setups.

Advantages

The intercom delivers a high display resolution of 1920 x 1440 pixels and image capture with a CMOS sensor and an optical sensor size of 25.4 / 2.7 mm for reliable image quality in varied lighting. Video is produced at up to 30 fps for smooth motion, while a built-in 3 W speaker and support for voice codecs G.711, G.722 and G.729 ensure clear audio communication. Robust construction with IP66 dust and water protection and IK08 impact resistance makes it suitable for outdoor installation. Fast Ethernet (10/100 Mbit/s) provides dependable network connectivity.

Key specifications

• Display resolution: 1920 x 1440 pixels
• Image sensor: CMOS
• Optical sensor size: 25.4 / 2.7 mm
• Maximum frame rate: 30 fps
• Speaker output: 3 W
• Supported audio codecs: G.711, G.722, G.729
• Ingress protection: IP66
• Impact resistance: IK08
• Network interface: Fast Ethernet 10/100 Mbit/s

How to use

Install the 2N IP One at the chosen entry point and connect it to your local network using the Fast Ethernet interface. Configure network and user settings through the device interface or management software, then pair with smartphones or computers to enable live video and two-way audio interactions with visitors. Follow standard mounting and grounding procedures and verify audio/video quality after installation.

Recommendations

Install the intercom in a sheltered position when possible to reduce exposure to extreme weather. Keep the device firmware up to date and perform periodic checks of mounting, seals and network settings to maintain reliable operation.
