TP-Link Media conv. 1000BASE-SX/LX/LH, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5, Cat5e, Cat6

TP-Link Media conv. 1000BASE-SX/LX/LH, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5, Cat5e, Cat6
60 mo.
TP-Link Media conv. 1000BASE-SX/LX/LH, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5, Cat5e, Cat6
R494

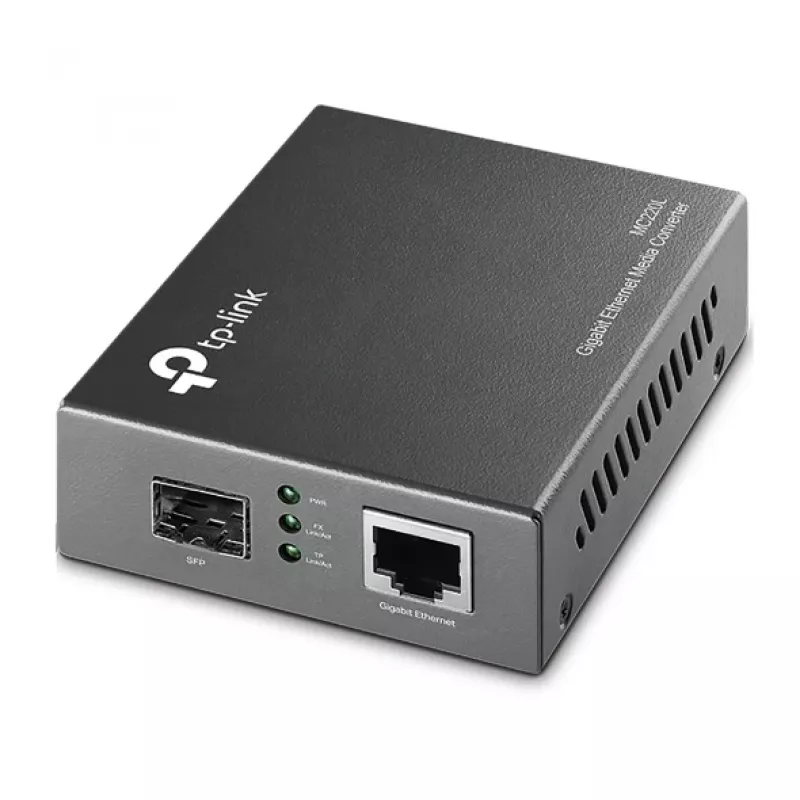

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.* TP-Link does not maintain a third party SFP module ... Read More
Stock 18 Code 2452383 Brand TP-LINK Model MC220L Warranty 5 Years

Shipping & Returns

Estimated delivery Thursday, October 22
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.

TP-Link Media conv. 1000BASE-SX/LX/LH. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 10000 m, Fiber mode structure: Multi-mode, Single-mode. Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Power consumption (max): 1.7 W

Key Highlights
  • 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • FX port supports hot-swappable
  • Wired
  • 1000 Mbit/s 10000 m
  • Ethernet LAN (RJ-45) ports: 1
  • Multi-mode, Single-mode Fiber ports quantity: 1 SFP
  • Black
Specifications
Auto MDI/MDI-X
Yes
Cable types supported
Cat5, Cat5e, Cat6
Compliance certificates
RoHS
Connectivity technology
Wired
Depth
73 mm
Duplex system
Full, Half
Ethernet interface type
Gigabit Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Fiber mode structure
Multi-mode, Single-mode
Fiber optic connector
SFP
Fiber ports quantity
1
Harmonized System (HS) code
85176990
Height
27 mm
Internal
No
LED indicators
Yes
Maximum data transfer rate
1000 Mbit/s
Maximum transfer distance
10000 m
Networking standards
IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
204 mm
Package height
65 mm
Package weight
440 g
Package width
65 mm
Power consumption (max)
1.7 W
Product colour
Black
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Width
94 mm

Leaflet

Open Leaflet

Manual

Open Manual
