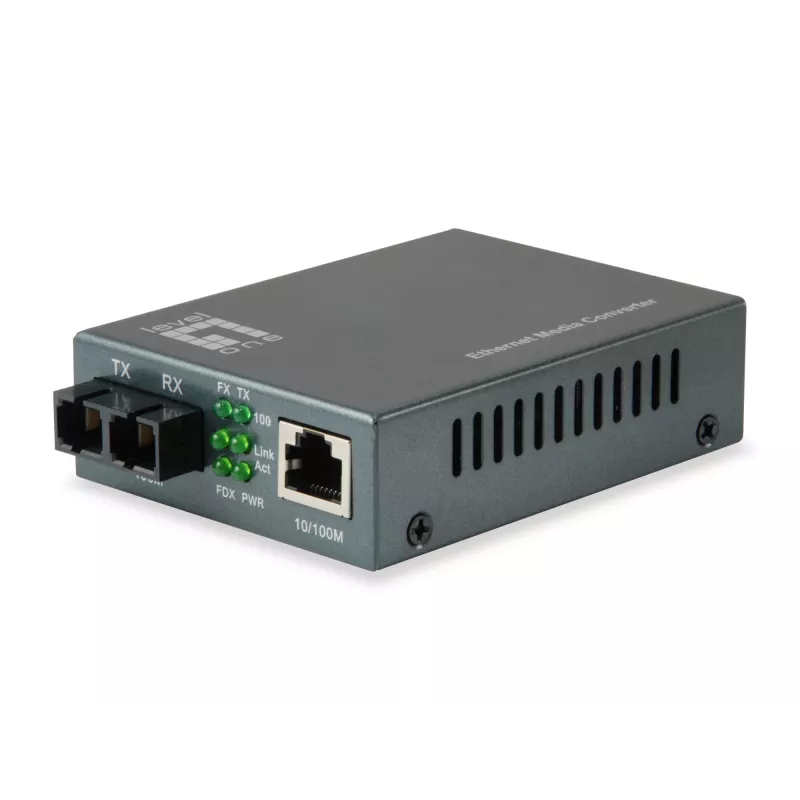

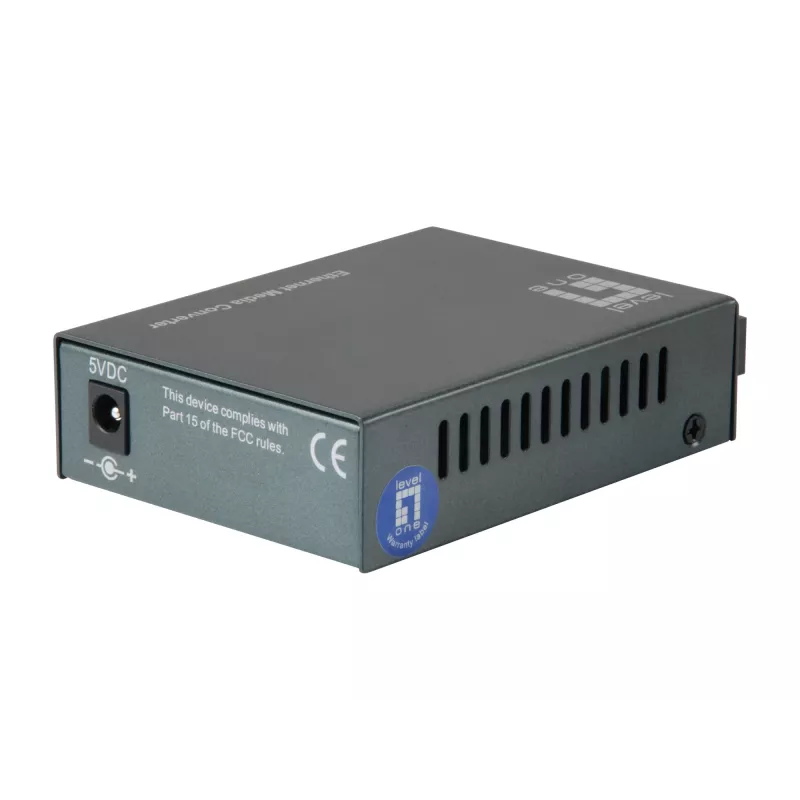

LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1310nm, 40km

LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1310nm, 40km
LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1310nm, 40km
LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1310nm, 40km
LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1310nm, 40km
R1,122
The LevelOne FVT-1103 single-mode fiber optic media converter with SC connector converts network signals between copper and single-mode fiber networks. It provides one 10/100Base-TX RJ-45 port, supports both full-duplex and half-duplex operation, and automatically detects 10Base-T or 100Base-TX link... Read More
Stock 10 Code 111338 Brand LEVELONE Model FVT-1103 Warranty 2 Years

Shipping & Returns

Estimated delivery Monday, October 12
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The LevelOne FVT-1103 single-mode fiber optic media converter with SC connector converts network signals between copper and single-mode fiber networks. It provides one 10/100Base-TX RJ-45 port, supports both full-duplex and half-duplex operation, and automatically detects 10Base-T or 100Base-TX link speeds. With appropriate single-mode fiber cabling, the converter supports link distances up to 40 km. The unit can operate as a standalone device or be installed as a plug-in module in a CHV-2000 19" chassis that holds up to 14 converters for centralized rack deployment.

Advantages

The FVT-1103 enables seamless integration of copper Ethernet and single-mode fiber infrastructure, extending network reach without changing existing copper equipment. Auto-negotiation of speed and duplex mode simplifies installation. Compatibility with the CHV-2000 chassis allows compact, centralized installation of multiple converters in a wiring closet.

Key specifications

  • Model: LevelOne FVT-1103
  • Fiber type: single-mode
  • Fiber connector: SC
  • Copper port: 10/100Base-TX RJ-45
  • Duplex: full-duplex and half-duplex
  • Auto-sensing: 10Base-T / 100Base-TX
  • Maximum fiber distance: up to 40 km (with appropriate cable)
  • Mounting: standalone or CHV-2000 19" chassis (up to 14 units)

How to use

Connect the RJ-45 Ethernet cable from your copper network device to the 10/100Base-TX port on the converter and connect a single-mode fiber cable with an SC connector to the fiber port. Ensure cable polarity and connectors are correct, power the unit, and verify link LEDs for proper connection. For rack installation, insert the module into a CHV-2000 chassis according to the chassis instructions and secure power and fiber/copper connections.

Recommendations

Use certified single-mode fiber cabling and compatible SC connectors to achieve the stated 40 km reach. For multiple converters in one location, install them in the CHV-2000 chassis to simplify power and cable management.
Key Highlights
  • Supports the transmission of extra-long packets up to 1.6KB
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Single-mode fiber with SC connector for transmission of up to 40km
  • Supports low-time lag transmission
  • Wired
  • 100 Mbit/s 40000 m 1310 nm
  • 10BASE-T, 100BASE-TX
  • 100BASE-FX
  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Single-mode Fiber ports quantity: 1 SC 50/125,62.5/125 µm
  • Black
Specifications
AC adapter included
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Certification
FCC, CE
Compliance certificates
RoHS
Connectivity technology
Wired
Converter input interface
10Base-T, 100Base-TX
Converter output interface
100Base-FX
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Country of origin
China
DC-in jack
Yes
Depth
71 mm
Ethernet interface type
Fast Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Fiber ethernet cabling technology
100BASE-FX
Fiber mode structure
Single-mode
Fiber optic connector
SC
Fiber ports quantity
1
Flow control support
Yes
Harmonized System (HS) code
85176990
Height
26 mm
Input current
1 A
Input voltage
5 V
Internal
No
LED indicators
Yes
Master (outer) case gross weight
32 kg
Master (outer) case height
305 mm
Master (outer) case length
420 mm
Master (outer) case width
440 mm
Maximum data transfer rate
100 Mbit/s
Maximum transfer distance
40000 m
Mean time between failures (MTBF)
100000 h
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Package depth
150 mm
Package height
58 mm
Package type
Box
Package weight
300 g
Package width
230 mm
Product colour
Black
Products per master (outer) case
40 pc(s)
Quick installation guide
Yes
Storage temperature (T-T)
-20 - 70 °C
Store-and-forward
Yes
Wavelength
1310 nm
Weight
200 g
Width
94 mm
