Description

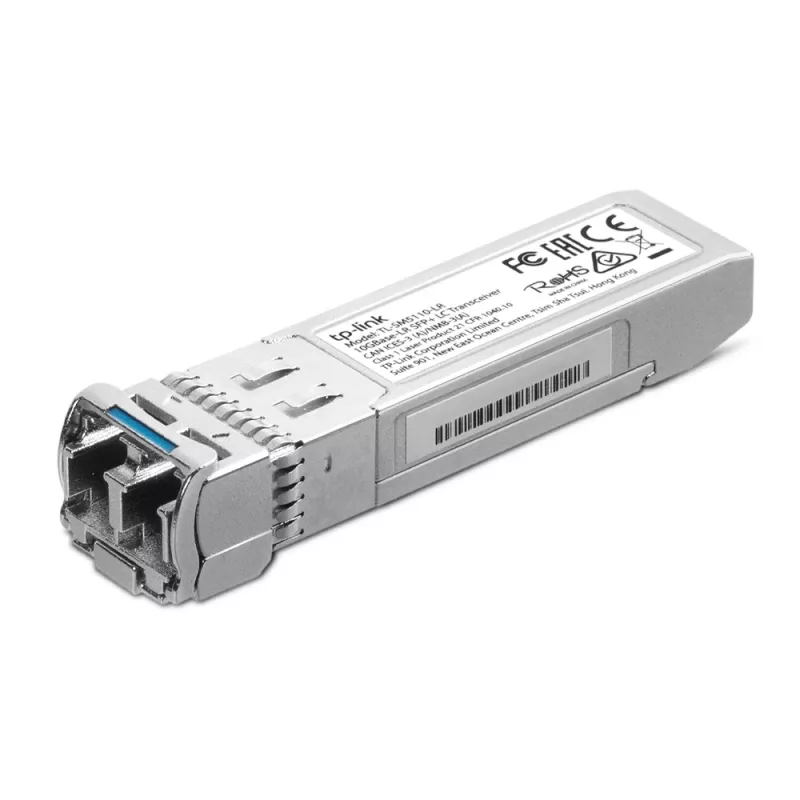

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

TP-Link 10Gbase-LR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Brand compatibility: TP-Link, Compatible products: Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.. Input voltage: 3.3 V. Certification: FCC, CE. Width: 56.7 mm, Depth: 13.9 mm, Height: 10.3 mm

Key Highlights
  • Single-mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

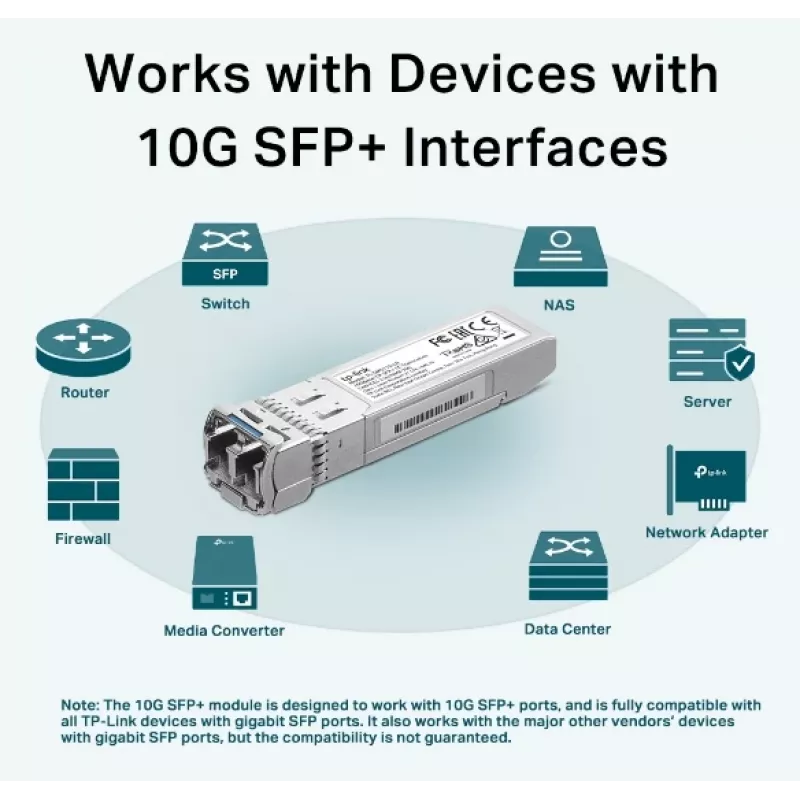

  • Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
  • SFP+ Fiber optic 10000 Mbit/s
  • Wavelength: 1310 nm
  • Hot-swap Hot-Plug support
  • Input voltage: 3.3 V

Specifications

Specifications
Brand compatibility
TP-Link
Certification
FCC, CE
Compatible products
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Depth
13.9 mm
Digital Diagnostics Monitoring (DDM)
Yes
Duplex system
Full
Fiber cable diameters supported (core/cladding)
9/125 µm
Fiber optic connector
LC
Harmonized System (HS) code
85369010
Height
10.3 mm
Hot-Plug support
Yes
Hot-swap
Yes
Input voltage
3.3 V
Interface type
SFP+
Maximum data transfer rate
10000 Mbit/s
Maximum transfer distance
10000 m
Multi-mode fiber (MMF) supported
No
Networking standards
IEEE 802.3ae
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 70 °C
Package depth
122.5 mm
Package height
38.5 mm
Package weight
60 g
Package width
81.5 mm
Quantity per pack
1 pc(s)
SFP transceiver standard
LR
SFP transceiver type
Fiber optic
Single-mode fiber (SMF) supported
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 85 °C
Wavelength
1310 nm
Width
56.7 mm
