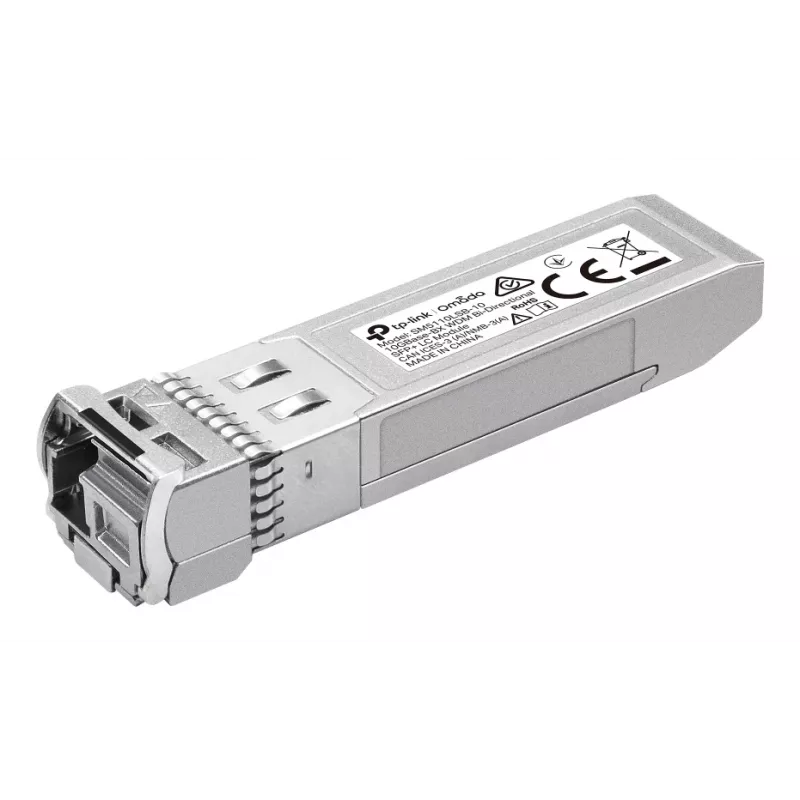

SFP+ fiber transceiver TP‑Link Omada SM5110LSB‑10, single‑mode LC (UPC), 10,312 Mbit/s, 10 km, DDM, 3.3 V

The SM5110LSB-10 is a single-mode SFP+ transceiver designed to extend transmission distance up to 10 km while supporting data rates up to 10 Gbps. It enables bi-directional data transmission over a single fiber, offering a compact module compatible with SFP+ ports for long-reach connectivity.

Advantages

This SFP+ transceiver supports bi-directional transmission, reducing the number of fibers required and lowering cabling costs. It provides 10 Gbps performance for high-speed links and is designed for reliable long-distance communication up to 10 km. The compact SFP+ form factor ensures easy installation in compatible network equipment.

Key specifications

• Form factor: SFP+
• Mode: Single-mode
• Maximum distance: 10 km
• Maximum data rate: 10 Gbps
• Transmission type: Bi-directional

How to use

Insert the SM5110LSB-10 module into an available SFP+ port on your network device, ensuring proper orientation and secure seating. Connect single-mode fiber cables to the appropriate TX/RX connectors following device labeling. Configure the network equipment as needed to recognize the module and set link parameters to 10 Gbps. Verify link status and test connectivity after installation.

Recommendations

Use quality single-mode fiber and follow manufacturer guidelines for insertion and removal to avoid damage. Ensure transceiver compatibility with your switch or router model before purchase and consider proper ESD precautions during handling.
