TP-Link 10/100Mbps Multi-Mode Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, Cat3, Cat4, Cat5, Cat5e

TP-Link 10/100Mbps Multi-Mode Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, Cat3, Cat4, Cat5, Cat5e
60 mo.
TP-Link 10/100Mbps Multi-Mode Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, Cat3, Cat4, Cat5, Cat5e
R844
What This Product DoesThe MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC... Read More
Stock 30 Code 92197 Brand TP-LINK Model MC100CM V1 Warranty 5 Years

Shipping & Returns

Estimated delivery Monday, October 5
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
What This Product Does

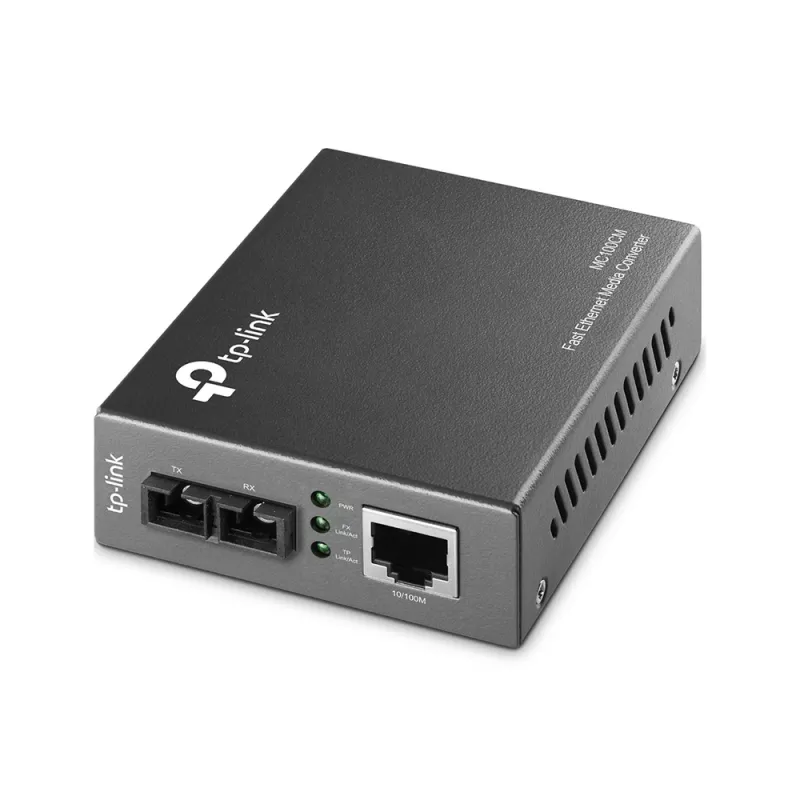

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.

TP-Link 10/100Mbps Multi-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 2000 m, Wavelength: 1310 nm. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 2.5 W

Key Highlights
  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Extends fiber distance up to 2km
  • Wired
  • 1000 Mbit/s 2000 m 1310 nm
  • 100BASE-FX
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1 SC
  • Black
Specifications
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Certification
FCC, CE
Connectivity technology
Wired
Depth
73 mm
Ethernet interface type
Gigabit Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
1000 Mbit/s
Fiber ethernet cabling technology
100BASE-FX
Fiber optic connector
SC
Fiber ports quantity
1
Height
27 mm
Internal
No
LED indicators
Yes
Maximum data transfer rate
1000 Mbit/s
Maximum transfer distance
2000 m
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
204 mm
Package height
65 mm
Package weight
380 g
Package width
165 mm
Power consumption (max)
2.5 W
Product colour
Black
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Wavelength
1310 nm
Width
94.5 mm

Document

Open Document

Document

Open Document

Leaflet

Open Leaflet

Document

Open Document

Manual

Open Manual
