Portable Battery InLine Qi Powerstation Multiport, 20V

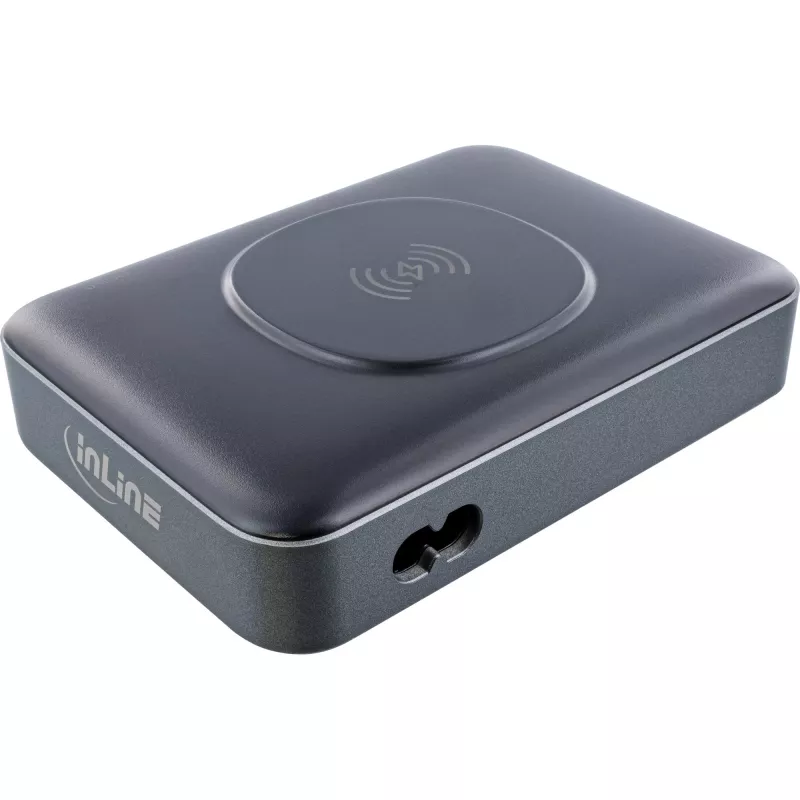

The InLine® Qi Powerstation Multiport is a desktop fast-charging power supply that charges up to six PD/QC-compatible USB devices plus one device via wireless charging at the same time. It supports a wide range of mobile devices including iPhone and iPad and can also charge conventional USB devices though these may take longer to reach full charge. The compact charger uses GaN technology to deliver higher power in a smaller housing and includes an integrated 1.8 m power cable.

Advantages

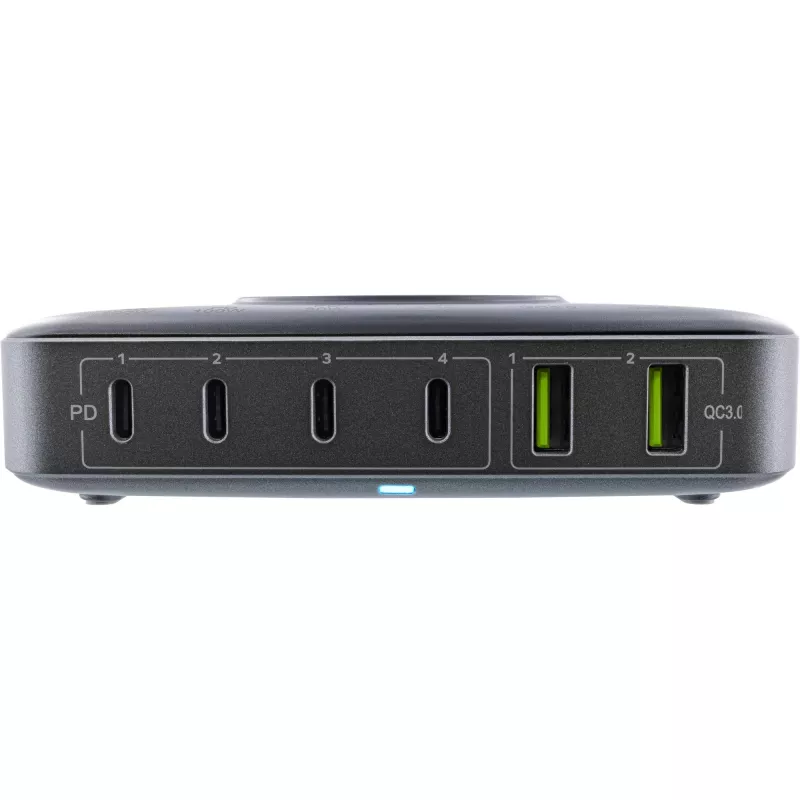

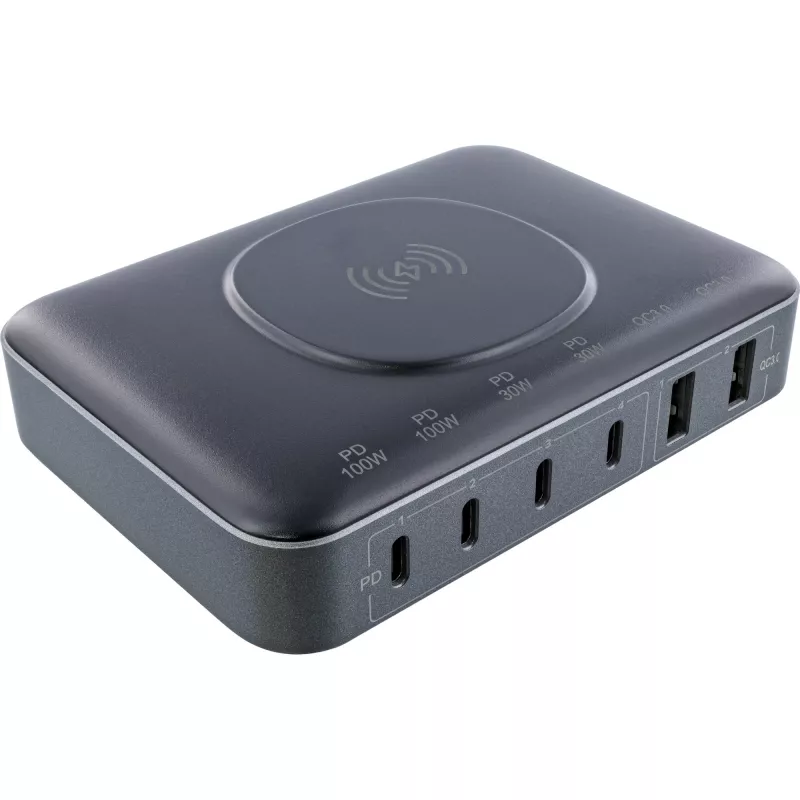

GaN-based design reduces size and heat generation while allowing multiple high-power outputs. Two USB-C ports support Power Delivery up to 100 W combined, two additional USB-C ports and two USB-A ports provide further fast-charging options, and the integrated wireless charging pad supports 5 W, 7.5 W and 15 W outputs. Built-in protections guard against overvoltage, short circuit and overheating; the unit resumes charging automatically after cooling. Universal input (100–240 V AC) makes it suitable for use in different regions.

Suitable for

• Charging smartphones and tablets (including iPhone and iPad)
• Simultaneous charging of multiple USB-C and USB-A devices
• Wireless charging-capable devices on the built-in Qi pad

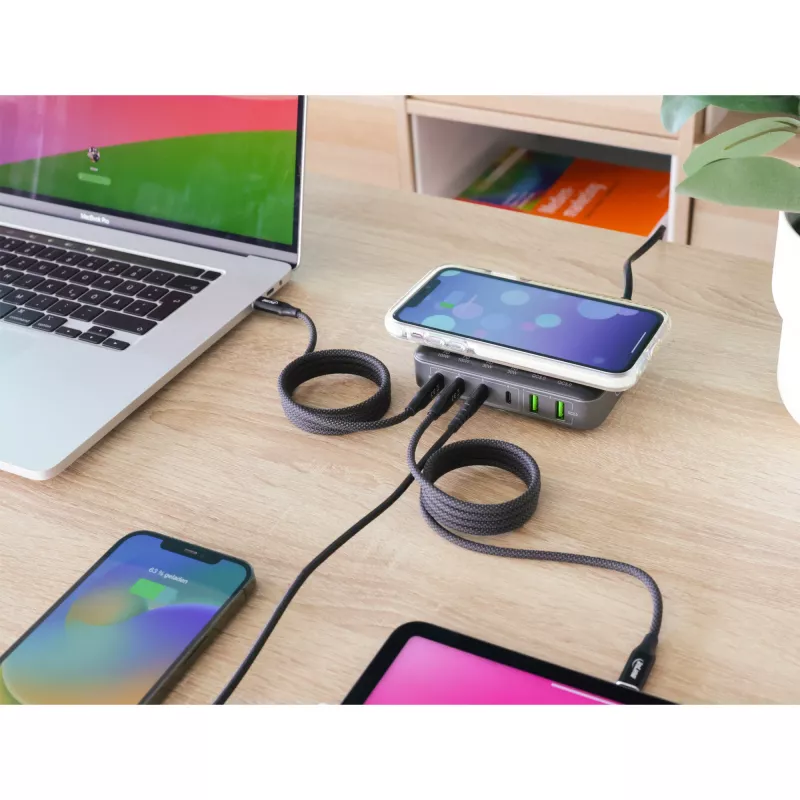

• Desktop or home charging where several devices must be charged at once

Key specifications

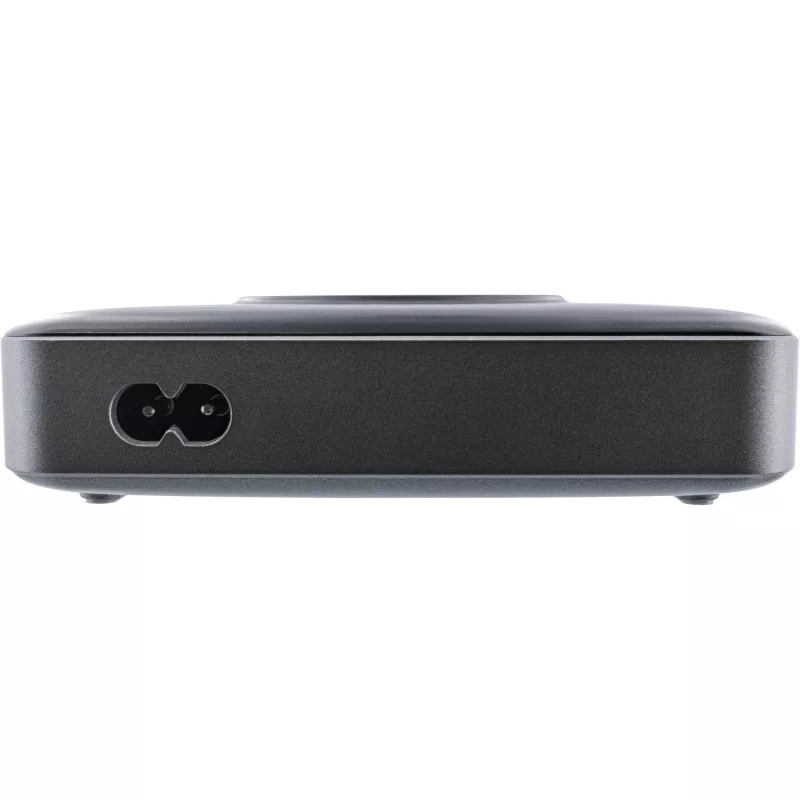

• Inputs: 100–240 V AC, ~50/60 Hz, 2.5 A; cable length 1.8 m
• Max total output power: 100 W
• USB-C PD outputs 1–2: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/5 A (100 W max)
• USB-C PD outputs 3–4: 5 V/3 A, 9 V/3 A, 12 V/2.5 A, 15 V/2 A, 20 V/1.5 A (30 W max)
• USB-A QC outputs 1–2: 5 V/3 A, 9 V/3 A, 12 V/2.5 A, 20 V/1.5 A (30 W max)

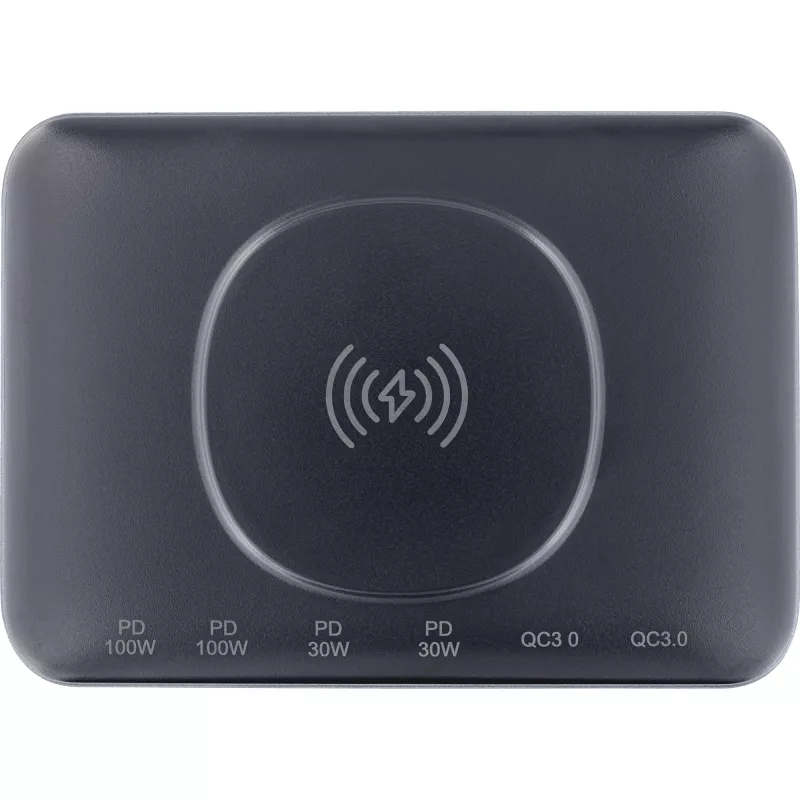

• Wireless charging output: 5 W / 7.5 W / 15 W
• Output voltage range: 5–20 V DC; output current up to 5 A
• Protection: overvoltage, short-circuit, temperature protection (automatic shutdown and restart after cooling)
• Average active efficiency examples: USB-C 5 V/3 A – 83.30%; USB-C 12 V/1.5 A – 84.54%; USB-A 5 V/3 A – 82.05%
• Dimensions (L×W×H): approx. 120 × 85 × 29 mm; weight: approx. 310 g

How to use

Place the power station on a flat, stable surface and connect it to mains power using the supplied 1.8 m cable. Plug devices into the USB-C or USB-A ports as required. For wireless charging, place the compatible device centrally on the wireless pad; align the device to ensure charging starts. The status LED indicates operating modes: steady orange in standby, slow blue flashing during wireless charging, and fast blue flashing when a foreign object is detected on the wireless area. The unit will automatically stop charging if temperature limits are exceeded and will resume once cooled.

Recommendations

Use compatible PD/QC cables for best charging performance. Avoid blocking ventilation around the charger and do not place the unit on heat-sensitive surfaces during heavy use. If a foreign object is detected on the wireless pad, remove it and reposition the device. For optimum longevity, avoid continuous operation at maximum load for extended periods.
