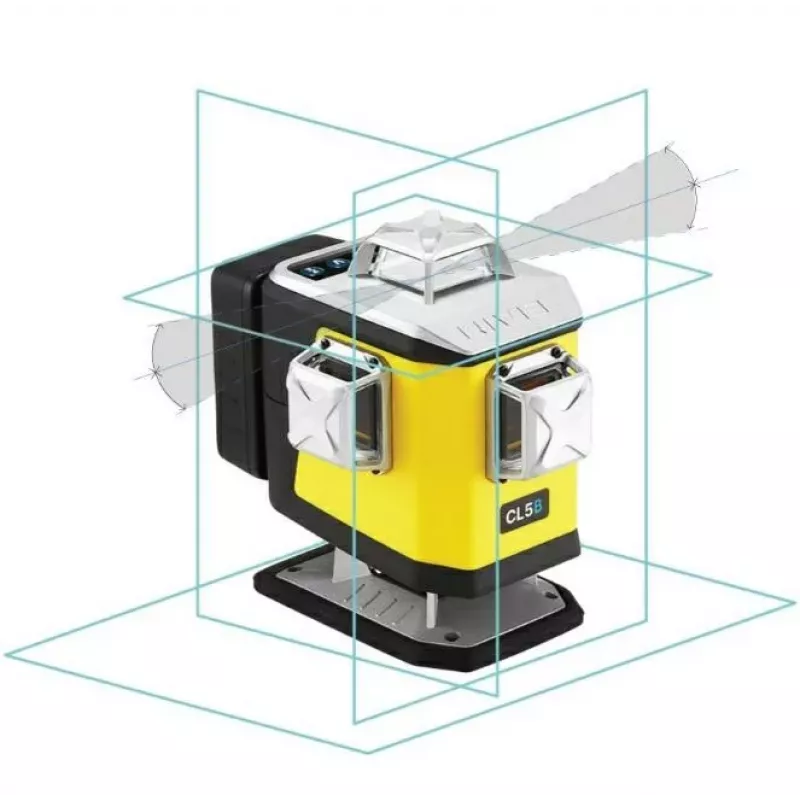

Nivel System CL5B 3x360° Blue Laser Level

The Nivel System CL5B is a professional 3x360° laser level with blue beam technology, designed for precise alignment and leveling tasks in construction and interior fitting. It projects two horizontal and one vertical 360° laser line, covering the entire room simultaneously.

Advantages

Blue laser diodes (450 nm) provide up to 4x better visibility than red lasers, especially in bright conditions. The self-leveling range of ±3.5° ensures quick setup, while the manual tilt mode allows for sloped applications. With IP54 protection, it is dust and splash proof, suitable for job site use.

Suitable for

• Installing ceilings, walls, and floors
• Aligning cabinets, shelves, and partitions
• Electrical and plumbing layout
• Outdoor leveling with optional detector (up to 70 m range)

Key specifications

• Laser class: 2 (EN60825-1:2014)
• Accuracy: ±1.0 mm/10 m
• Working range: 30 m (70 m with detector)
• Self-leveling range: ±3.5°
• Power: Li-ion battery 3.7V 4000 mAh
• Operating time: up to 16 h (1 line), up to 8 h (3 lines)
• Mounting thread: 1/4" and 5/8"
• IP rating: IP54
• Operating temperature: -10°C to +50°C

Recommendations

For maximum range and outdoor use, pair with the Nivel System RD800 laser detector. The included AC charger and Li-ion battery ensure continuous operation.
