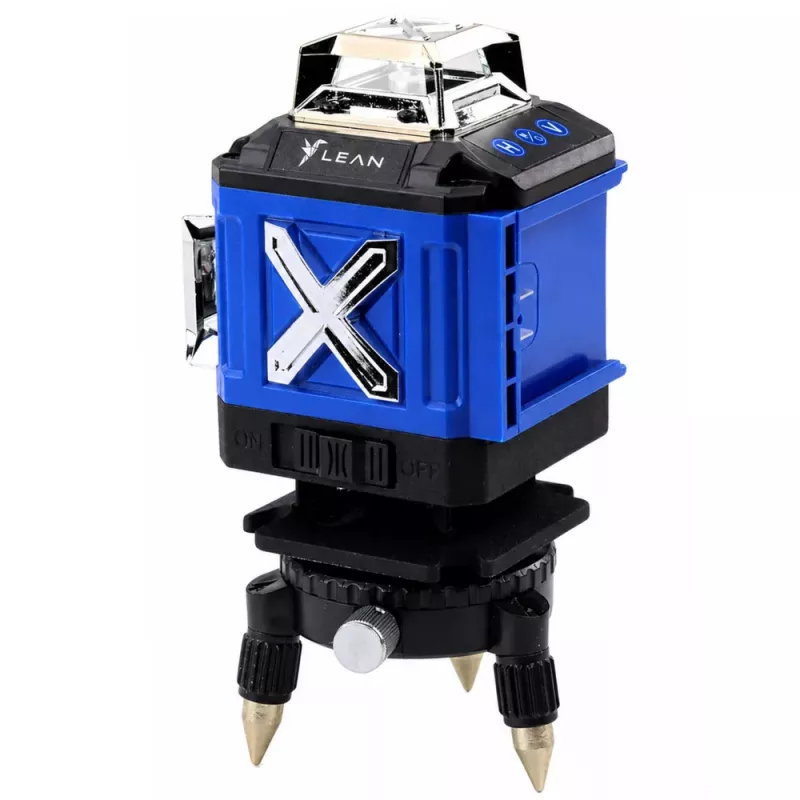

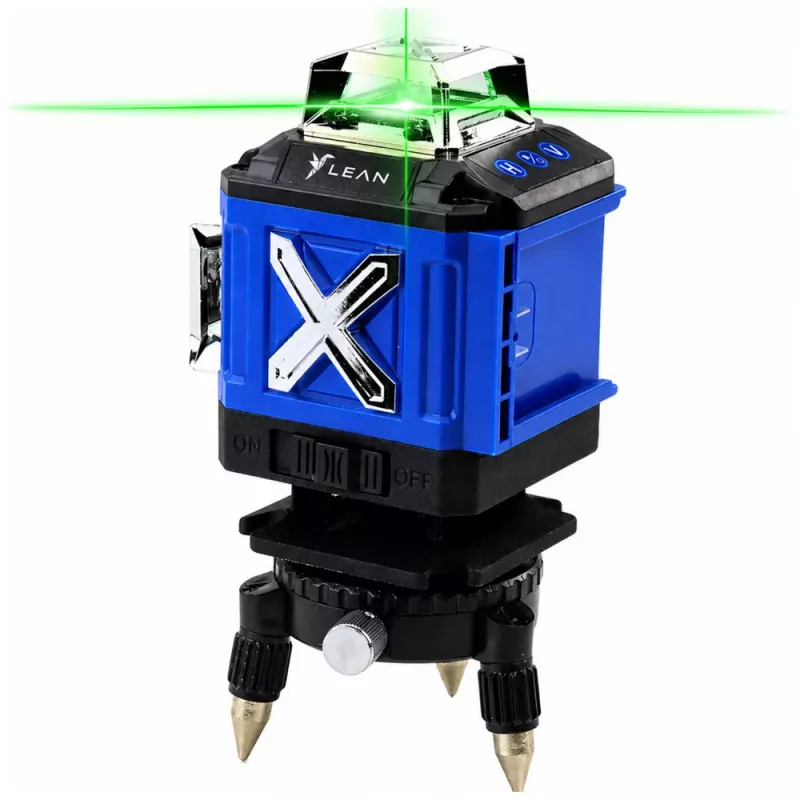

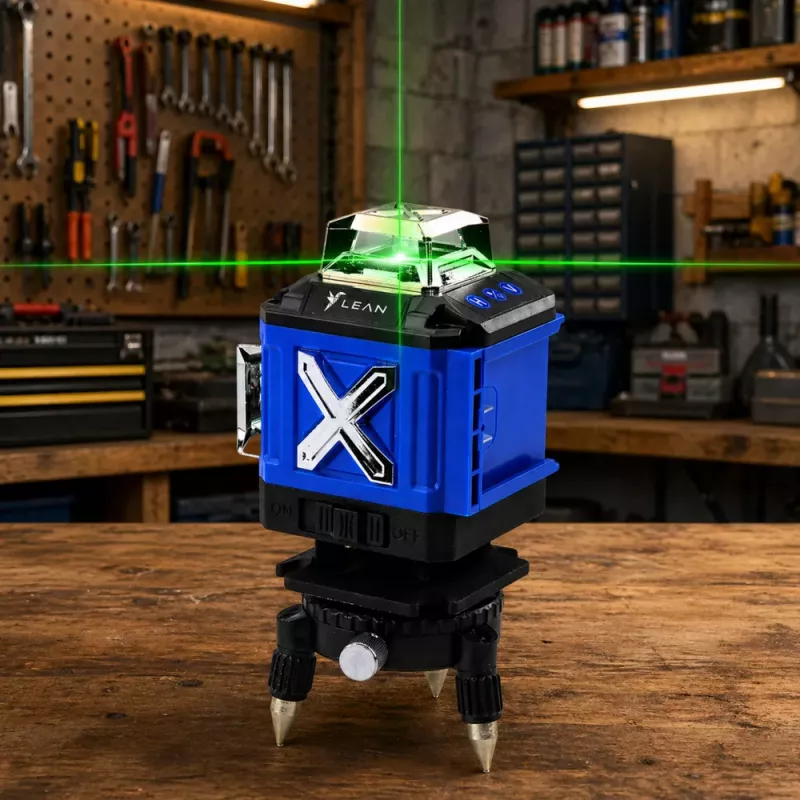

LEAN 4D Laser Level Plane 16 Lines Case 2 Batteries Blue

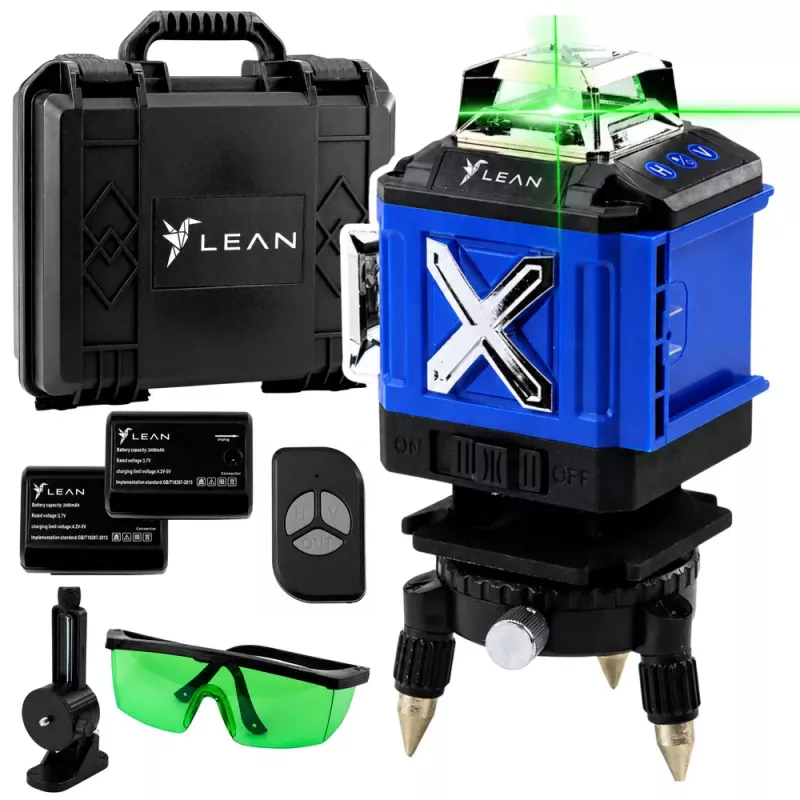

The LEAN 4D Laser Level is a professional-grade self-leveling laser designed for precise alignment and layout tasks. With 16 laser lines (4 x 360° planes), it provides full coverage for horizontal and vertical leveling. The green laser beam is highly visible, offering a working range of up to 25 m (50 m with receiver). This kit includes two rechargeable Li-ion batteries, a charger, magnetic wall bracket, mini lifting platform, remote control, and a protective hard case.

Advantages

Green laser technology ensures superior visibility even in bright conditions. The 4D system projects 4 independent 360° planes (2 horizontal, 2 vertical) for comprehensive coverage. Self-leveling with ±3° range and manual tilt mode for slope applications. Pulse mode extends range with a receiver. IP54 dust and splash resistance for job site durability.

Suitable for

• Construction and renovation projects
• Interior fitting and ceiling installation
• Tiling, flooring, and wall framing
• Cabinet and shelving alignment
• Outdoor leveling with receiver

Key specifications

• Laser Color: Green
• Number of Laser Lines: 16 (4 x 360° planes)
• Laser Diode Wavelength: 505-520 nm
• Laser Class: Class 2
• Leveling Accuracy: ±1.5 mm / 5 m
• Self-Leveling Range: ±3°
• Working Range: Up to 25 m (50 m with receiver)
• Power Source: 2 x Li-ion Battery (3.7V, 3000 mAh each)
• Operating Time: Up to 8 hours (single plane), 4 hours (all planes)
• Mounting Thread: 1/4" and 5/8"
• IP Rating: IP54
• Operating Temperature: -10°C to +50°C
• Functions: Self-leveling, Manual/Tilt mode, Pulse mode

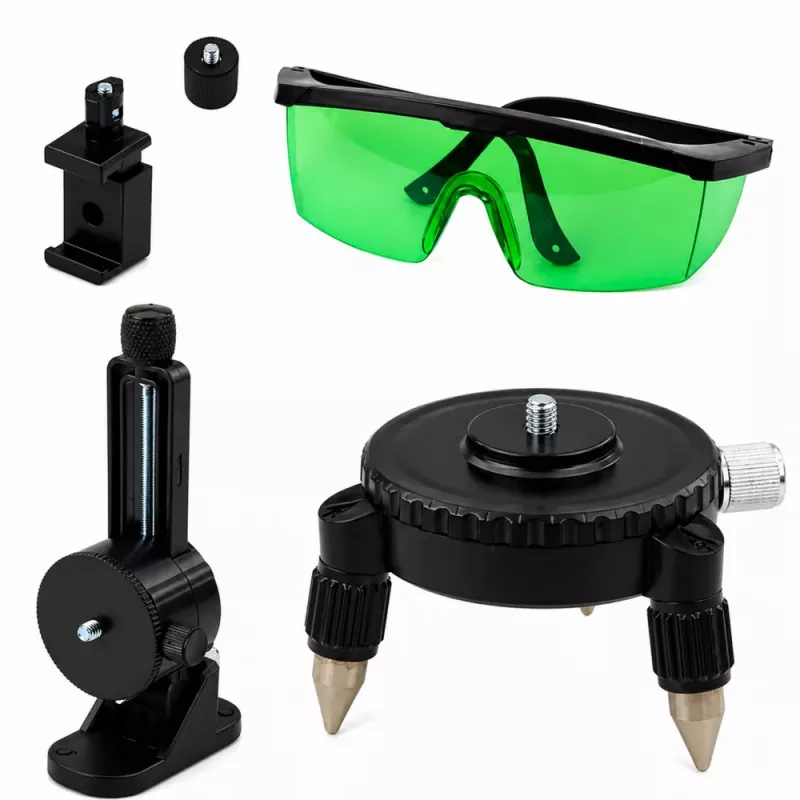

• Included Accessories: Protective Hard Case, 2x Rechargeable Li-ion Batteries, Charger, Magnetic Wall Bracket, Mini Lifting Platform, Remote Control
• Housing Material: ABS Plastic, Rubberized

Recommendations

For best results, use with a compatible laser receiver for outdoor applications. Always calibrate before use. The magnetic bracket allows quick attachment to metal surfaces.
