NEO TOOLS 75-141 3D Laser Level, 16 Lines, Green Beam, Case, Target Plate, Magnetic Holder, Charger

Uneven tiles, misaligned cabinets, and crooked wallpaper are common frustrations on any job site. The NEO TOOLS 75-141 3D laser level eliminates these issues by projecting sixteen crisp green laser lines—four full 360° planes—so you can align, square, and level with confidence across an entire room in one setup. Its bright green beam is highly visible even in daylight, and the self-levelling mechanism ensures accuracy within ±1 mm at 7 m, making it a reliable companion for professionals and serious DIYers alike.

Who is it for

This laser level is built for contractors, electricians, plumbers, carpenters, and interior finishers who need fast, precise layout for drop ceilings, partition walls, tiling, or cabinetry. It’s equally valuable for ambitious home improvers tackling renovations where square and level lines are critical.

Main features

• 16 laser lines: four 360° planes (two horizontal, two vertical) for full-room coverage.
• Green laser beam (505–520 nm) that is up to four times more visible than red lasers.
• Self-levelling within ±3° with audible/visual alarm when out of range.
• Pulse mode extends working range up to 50 m when used with a laser receiver (receiver not included).
• Manual tilt mode for angled layouts, such as stair railings or sloped ceilings.
• Rechargeable 5000 mAh lithium-ion battery provides up to 8 hours of continuous operation.
• IP54 dust and splash resistance for reliable performance on dusty or damp job sites.

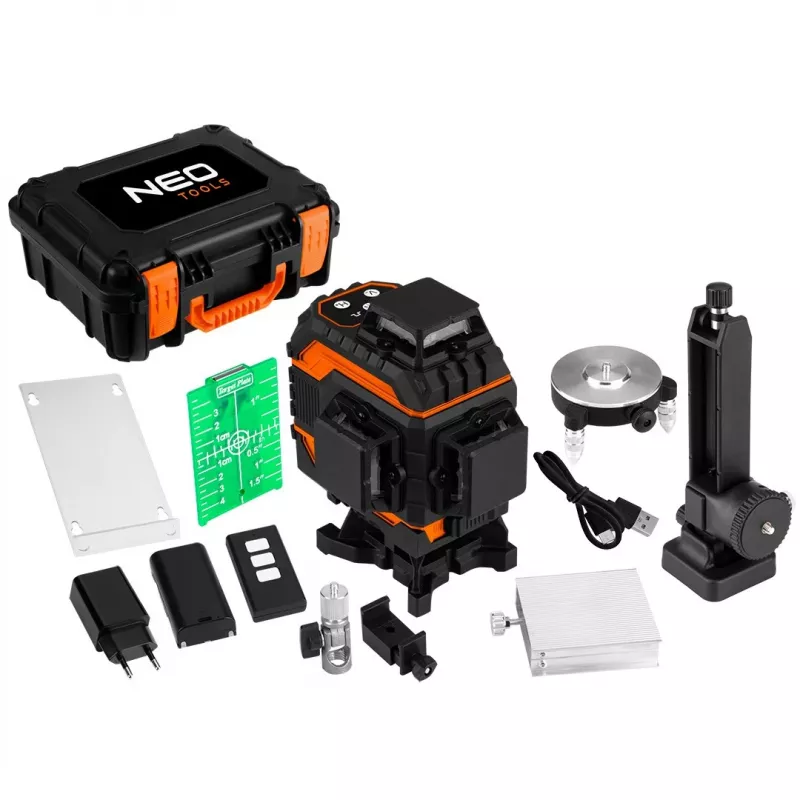

• Includes magnetic pivoting base, mini tripod/lifting platform, remote control, laser target plate, charger, and carrying case.

Specifications

• Laser class: Class 2
• Laser wavelength: 505–520 nm
• Number of lines: 16 (4 x 360° planes)
• Levelling accuracy: ±1 mm at 7 m
• Self-levelling range: ±3°
• Working range: up to 25 m (50 m with detector)
• Power source: rechargeable lithium-ion battery (5000 mAh)
• Operating time: up to 8 hours (single plane)
• Mounting thread: 1/4" and 5/8"
• IP rating: IP54
• Operating temperature: -10°C to 50°C
• Material: ABS plastic, metal components

Tips

For best visibility in bright conditions, use the included target plate or pair the laser with a green beam detector (sold separately). Always allow the unit to self-level before marking; if the alarm sounds, adjust the base until the bubble is centred. When working on angled surfaces, switch to manual mode and lock the pendulum to project fixed tilted lines.
