R23,091
The ASUS PRO WS WRX90E-SAGE SE is a high-performance workstation motherboard built on the AMD WRX90 chipset and Socket sTR5, designed to support AMD Ryzen Threadripper PRO 7000 WX-Series processors. It delivers exceptional scalability and reliability for demanding professional workloads, featuring e... Read More
Stock 1 Code 111201 Brand ASUS Model 90MB1FW0-M0EAY0 Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

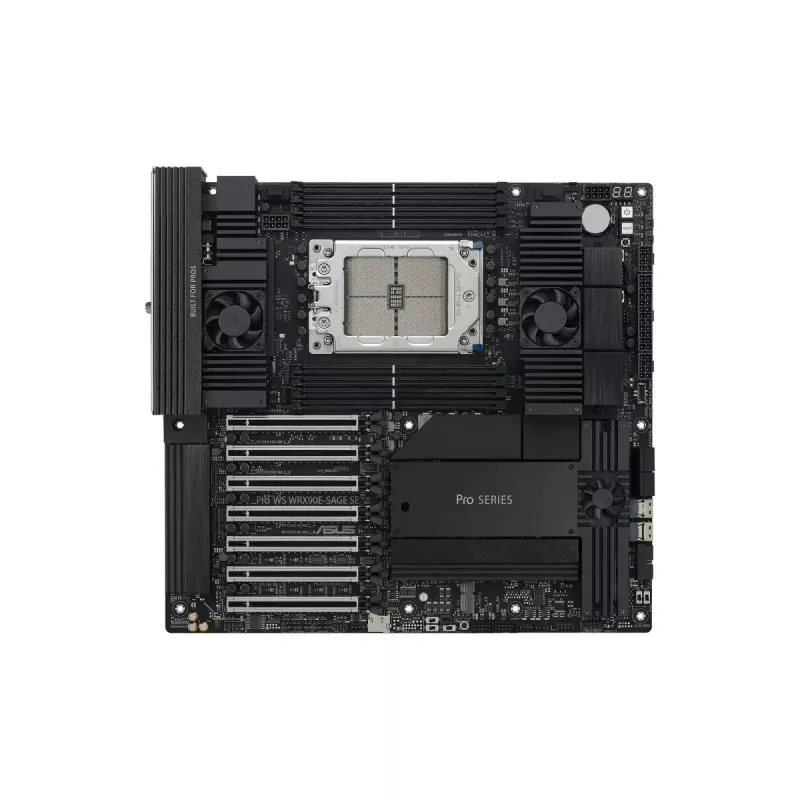

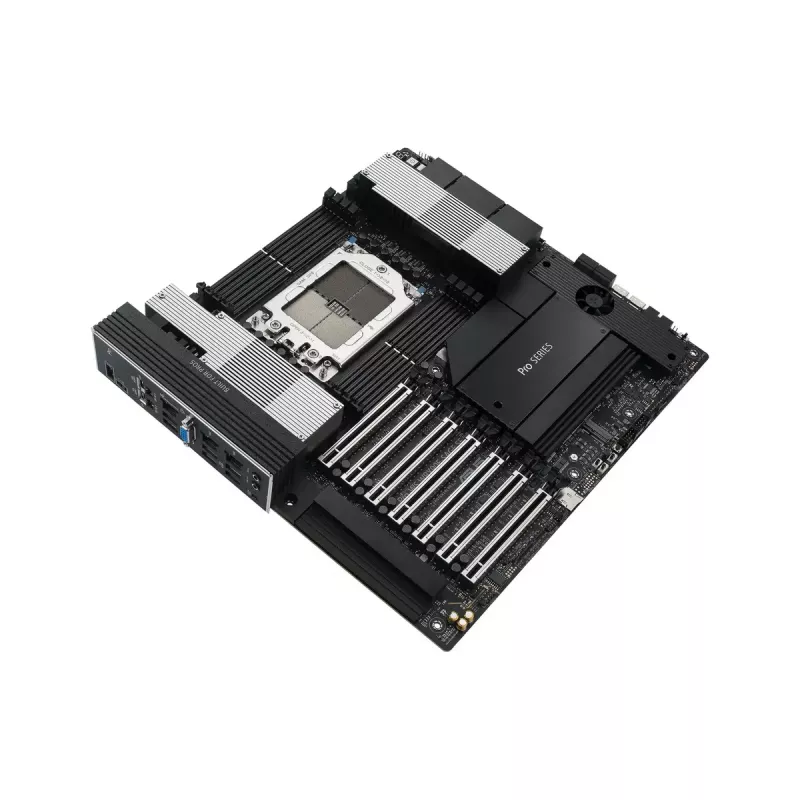

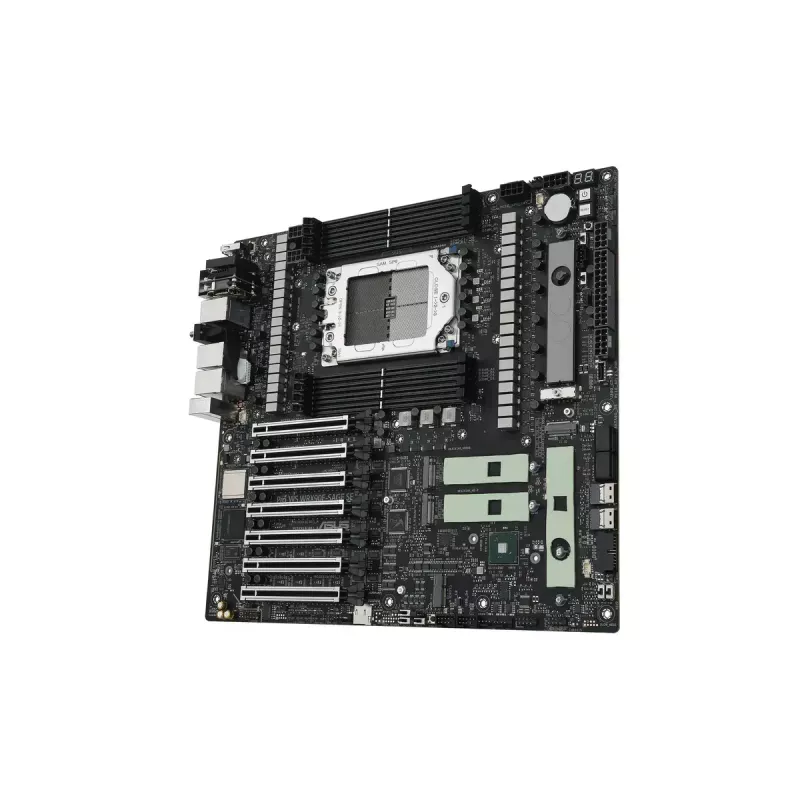

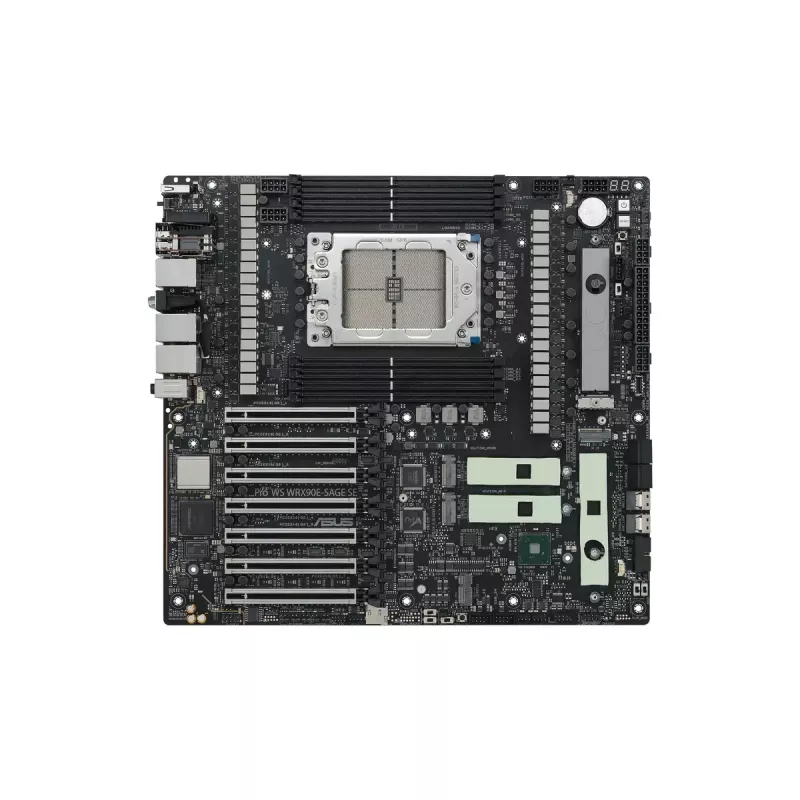

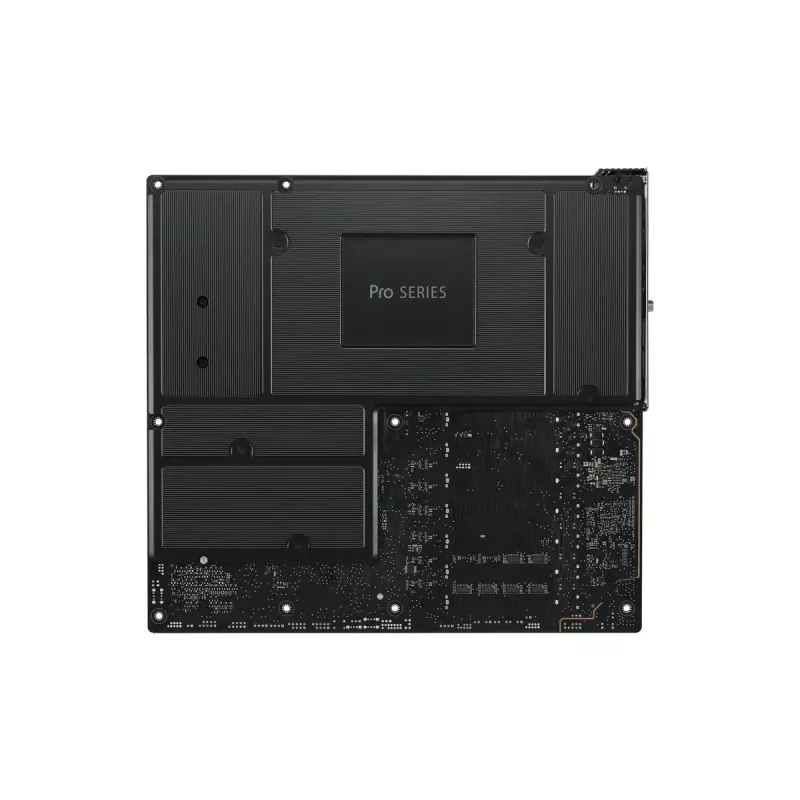

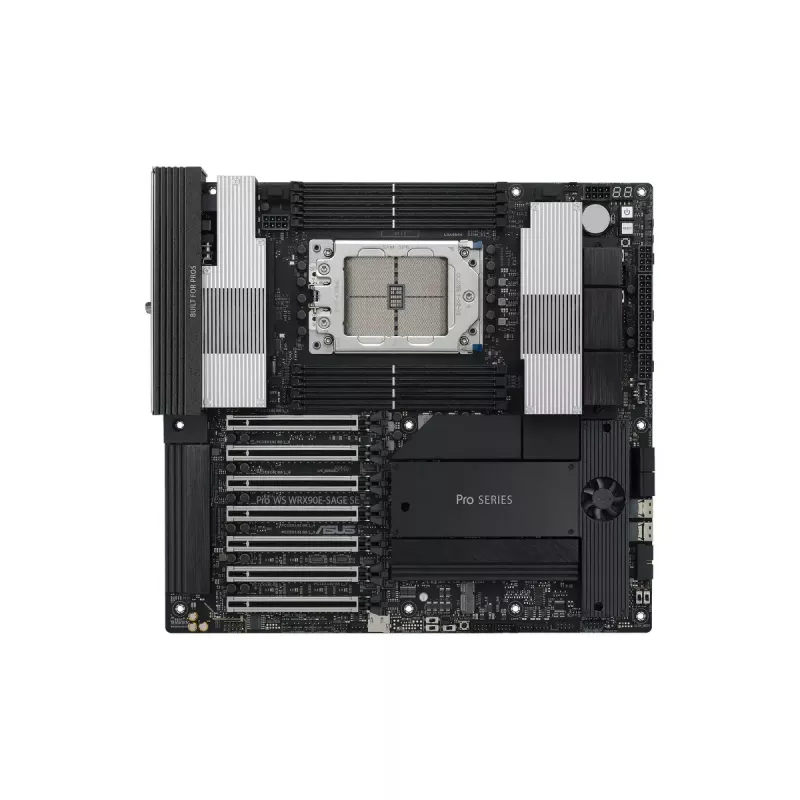

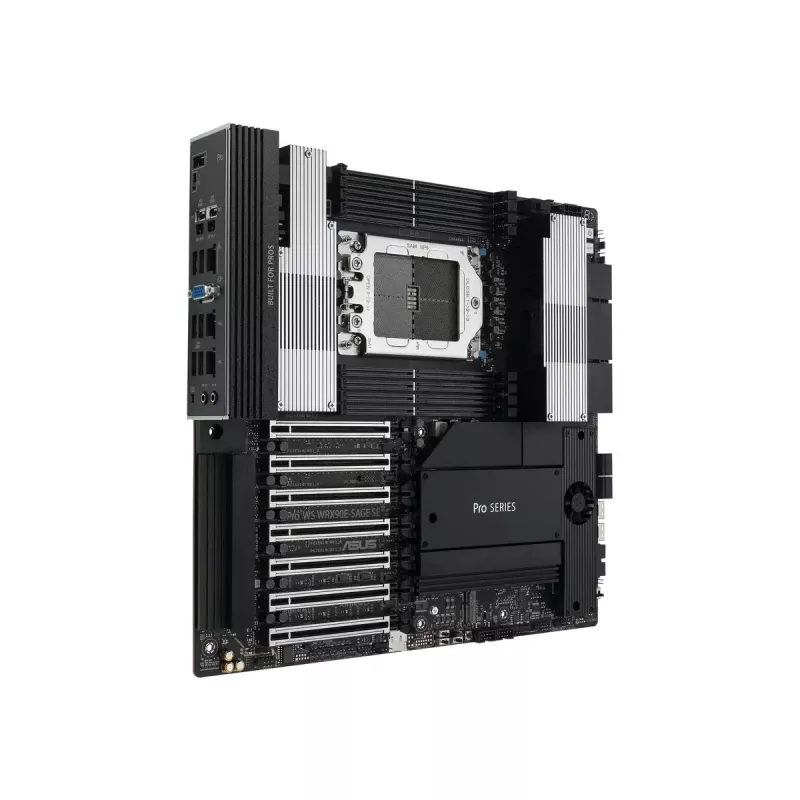

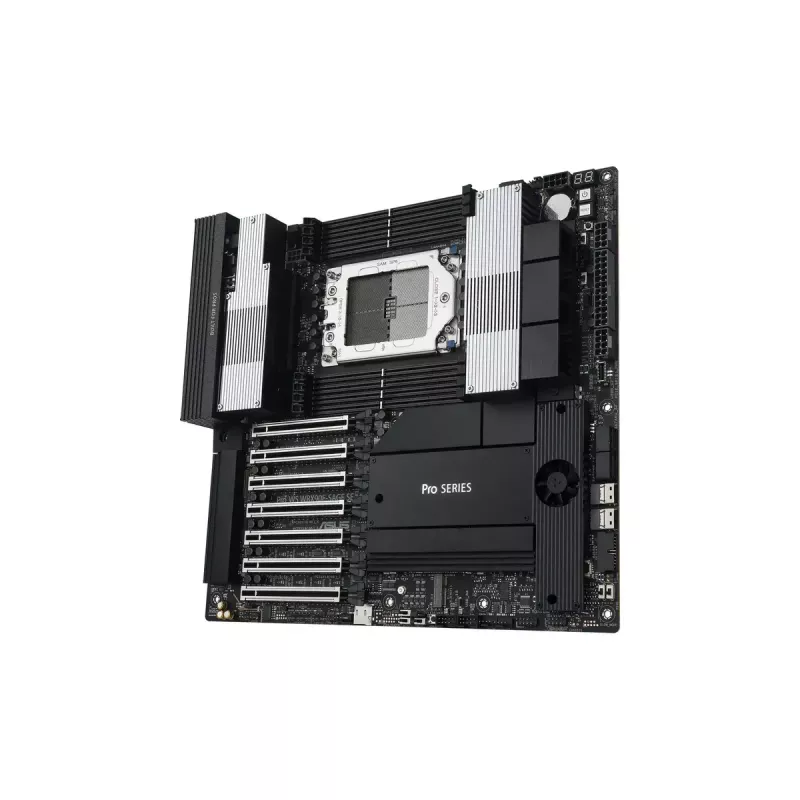

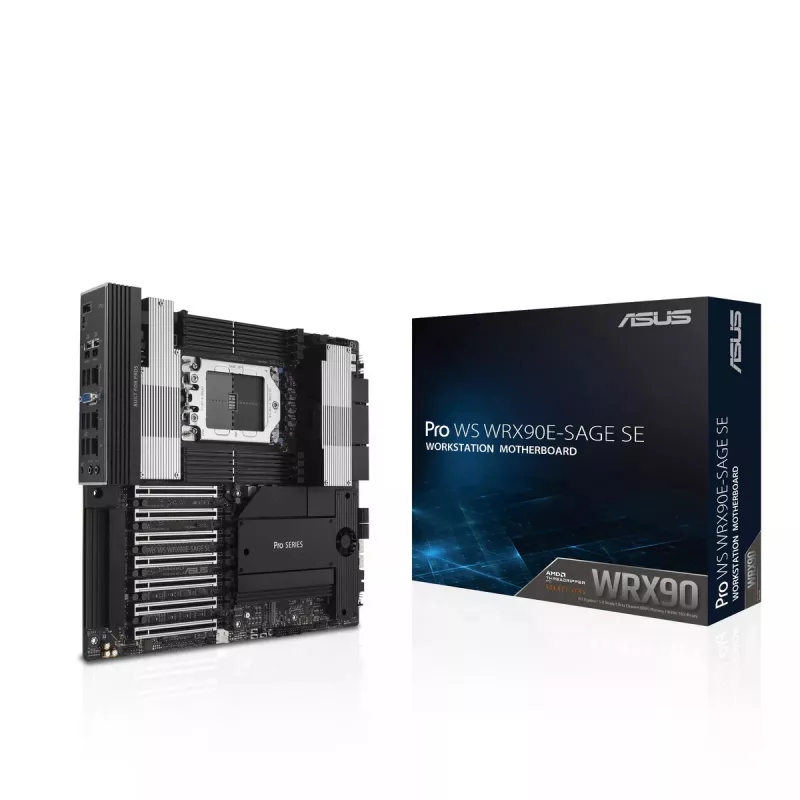

The ASUS PRO WS WRX90E-SAGE SE is a high-performance workstation motherboard built on the AMD WRX90 chipset and Socket sTR5, designed to support AMD Ryzen Threadripper PRO 7000 WX-Series processors. It delivers exceptional scalability and reliability for demanding professional workloads, featuring extensive connectivity and robust power delivery.

Key features

  • Socket sTR5 compatible with AMD Ryzen Threadripper PRO 7000 WX-Series processors
  • 8x DDR5 DIMM slots supporting octa-channel memory architecture
  • 7x PCIe 5.0 x16 slots for multi-GPU configurations
  • 4x PCIe 5.0 M.2 slots for ultra-fast storage
  • Dual 10 Gigabit Ethernet and Gigabit LAN for high-speed networking
  • 2x USB4 Gen 3x2 ports and USB 3.2 Gen 1 connectivity
  • 32+3+3+3 power stage design optimized for CPU and memory overclocking
Key Highlights
  • 3D modelling, simulation and professional rendering with multi‑GPU setups
  • High‑performance storage servers and RAID NVMe arrays
  • Enterprise‑grade networking and data transfer tasks requiring 10 Gb connectivity
  • Workstation environments needing ECC memory and 24/7 reliability
  • Form factor: EEB
  • Chipset: AMD WRX90
  • CPU socket: Socket sTR5 (for AMD Ryzen Threadripper PRO 7000 WX-Series)
  • Memory: 8 × DDR5 R‑DIMM slots, ECC support, octa‑channel
  • PCIe expansion: 7 × PCIe 5.0 x16 slots
  • M.2: Up to 4 × onboard M.2 PCIe 5.0 slots (supports RAID)
  • SlimSAS: 2 × SlimSAS ports
  • LAN: Dual Intel® X710‑AT2 10 Gb Ethernet + 1 Gb port dedicated to BMC

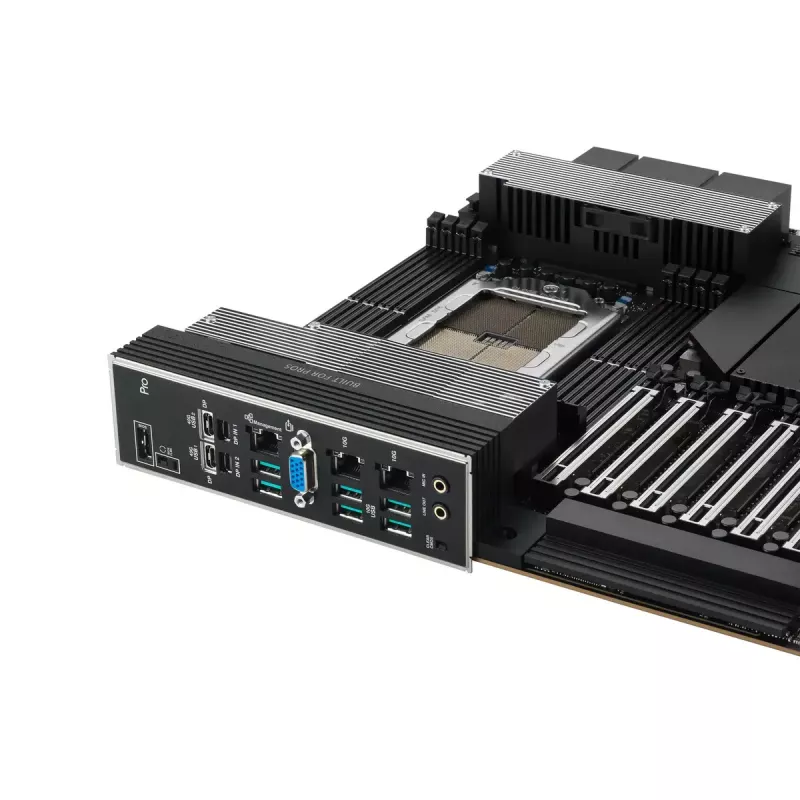

  • Rear I/O: USB Type‑C with USB4/DisplayPort alt mode (supports up to 8K@60Hz via discrete GPU connection)
  • Power delivery: (16*2)+3+3+3 power stages VRM, ProCool II connectors, active VRM cooling
  • Additional: Onboard PCIe power connectors, M.2 heatsinks with active fan, IPMI support via ASUS Control Center Express
Specifications
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220P
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Chassis intrusion connector
Yes
Clear CMOS button
Yes
Compatible processor series
AMD Ryzen Threadripper PRO 7000 WX-Series
Component for
Workstation
CPU fan connector
Yes
Depth
330 mm
DVI-D ports quantity
0
ECC сompatibility
ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Front panel audio connector
Yes
HDMI ports quantity
0
Height
50 mm
Memory channels
Octa-channel
Memory slots type
DIMM
Mini DisplayPorts quantity
2
Motherboard chipset
AMD WRX90
Motherboard chipset family
AMD
Motherboard form factor
EEB
mSATA ports quantity
0
Number of chassis fan connectors
5
Number of COM connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
4
Number of memory slots
8
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Number of storage drives supported
10
On-board graphics card
No
Package depth
362 mm
Package height
79 mm
Package weight
3.62 kg
Package width
377 mm
PCI Express x16 (Gen 5.x) slots
7
Processor manufacturer
AMD
Processor socket
Socket sTR5
Product colour
Aluminium, Black
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
M.2, SATA III, SlimSAS
Supported storage drive types
HDD & SSD
TPM connector
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 connectors
1
USB connector type
USB Type-A, USB Type-C
USB4 Gen 3x2 ports quantity
2
VGA (D-Sub) ports quantity
1
Weight
3.33 kg
Wi-Fi
No
Width
305 mm
Windows operating systems supported
Windows 10 x64, Windows 11

Manual

Open Manual

Leaflet

Open Leaflet
