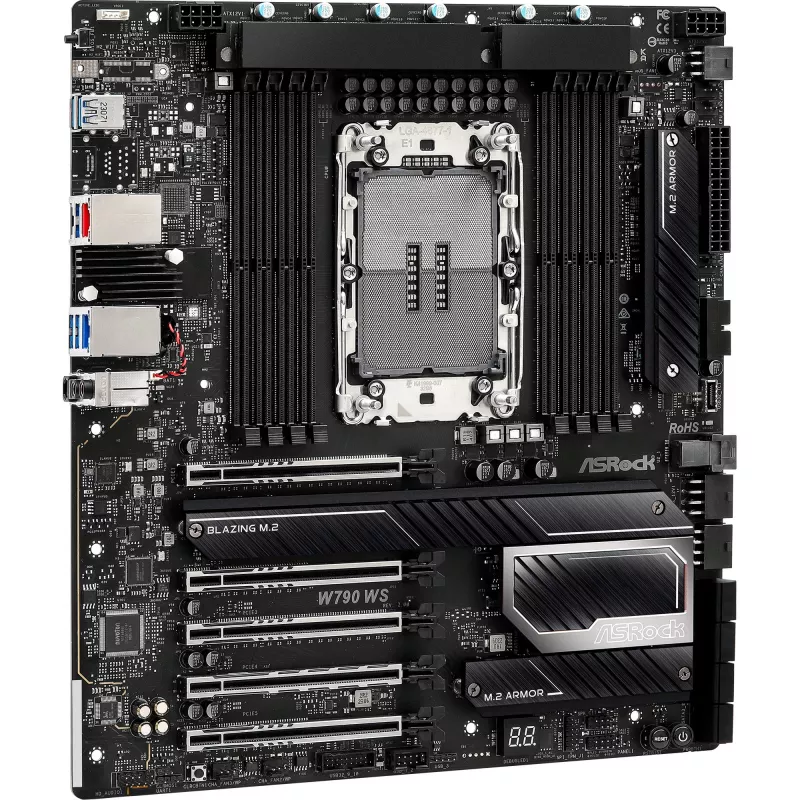

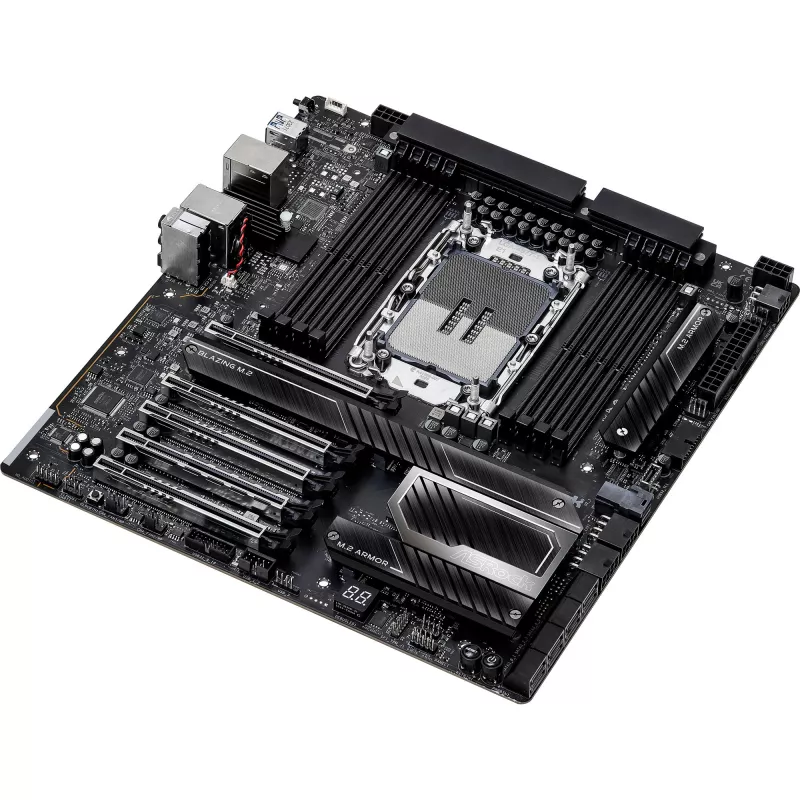

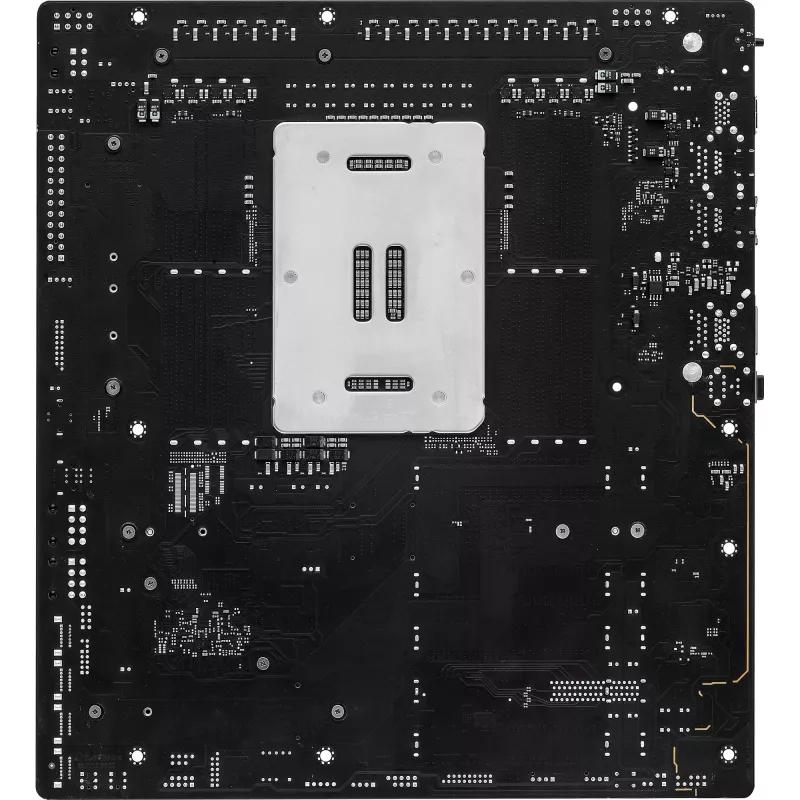

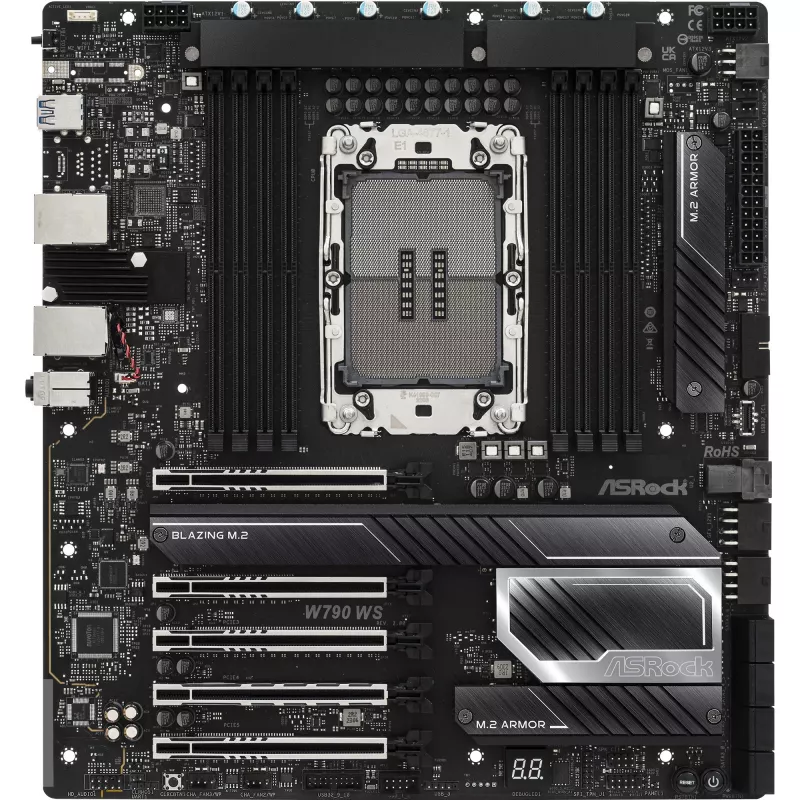

Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX

Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
36 mo.
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
Motherboard ASRock W790 WS R2.0 Intel W790 LGA 4677 Extended ATX
R9,874
The ASRock W790 WS R2.0 is a high-performance Extended ATX motherboard built on the Intel W790 chipset, designed for Intel Xeon W processors with the LGA 4677 socket. It supports up to 2 TB of DDR5-SDRAM via DIMM slots and offers robust storage and connectivity options for demanding workstation and ... Read More
Stock 1 Code 1720795 Brand ASROCK Model 90-MXBP30-A0UAYZ Warranty 3 Years

Shipping & Returns

Estimated delivery Monday, October 5
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock W790 WS R2.0 is a high-performance Extended ATX motherboard built on the Intel W790 chipset, designed for Intel Xeon W processors with the LGA 4677 socket. It supports up to 2 TB of DDR5-SDRAM via DIMM slots and offers robust storage and connectivity options for demanding workstation and server applications.

Key features

  • Supports Intel Xeon W processors with LGA 4677 (Socket E) for powerful computing
  • Up to 2 TB DDR5-SDRAM memory capacity for intensive multitasking and large workloads
  • Dual 10 Gigabit and 2.5 Gigabit Ethernet LAN for ultra-fast networking
  • Multiple storage interfaces including M.2 and SATA III with RAID 0, 1, 5, 10 support
  • USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, and USB 3.2 Gen 1 ports for high-speed connectivity
  • 8-channel HD Audio for immersive sound quality
  • Extended ATX form factor with Intel W790 chipset for advanced workstation builds
Key Highlights
  • Workstations for professional design, rendering and simulation
  • Deep learning and compute-heavy applications with multiple GPUs
  • Enterprise or prosumer servers requiring ECC memory and high capacity (RDIMM ECC up to 2048 GB)
  • High-speed storage setups using PCIe Gen5 M.2 SSDs and mini‑SAS/SATA arrays
  • Form factor: Extended ATX
  • Chipset: Intel W790
  • CPU socket: LGA 4677 (Socket E) for Intel Xeon W processors
  • Memory: 8 DIMM slots, Quad-Channel DDR5 RDIMM ECC, up to 2048 GB
  • Power design: 20+2 Dr.MOS phases with Smart Power Stage (SPS)
  • PCB: Server-grade ultra low loss 14-layer PCB
  • PCIe: 4 × PCIe Gen5 x16 slots, SMT-type connectors, reinforced steel slots
  • Storage: PCIe Gen5 x4 M.2 (Blazing M.2), SATA3, mini‑SAS
  • Network: Aquantia® 10Gb/s BASE-T, Intel Ethernet with 2.5Gb support and vPro compatibility
  • Front I/O: USB 3.2 Gen2x2 Type-C (up to 20 Gbps)
Specifications
12V power connector
Yes
ATX Power connector (24-pin)
No
Audio chip
Realtek ALC897
Audio output channels
7.1
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Certification
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready
Chassis intrusion connector
Yes
Clear CMOS button
Yes
Compatible processor series
Intel Xeon W
Component for
PC
CPU fan connector
Yes
Depth
277 mm
DVI-D ports quantity
0
ECC сompatibility
ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Front panel audio connector
Yes
HDMI ports quantity
0
Linux operating systems supported
Y
Maximum internal memory
2048 GB
Memory channels
Quad-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
Intel W790
Motherboard chipset family
Intel
Motherboard form factor
Extended ATX
Number of chassis fan connectors
3
Number of CPU fan connectors
1
Number of memory slots
8
Number of SATA III connectors
8
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Processor manufacturer
Intel
Processor socket
LGA 4677 (Socket E)
RAID levels
10, 5, 1
RAID support
Yes
S/PDIF out port
Yes
Supported memory clock speed (max)
6800 MHz
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
SATA III, M.2
Supported storage drive types
HDD & SSD
TPM connector
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 connectors
1
VGA (D-Sub) ports quantity
0
Width
305 mm
Windows operating systems supported
Windows 11 x64, Windows 10 x64

Leaflet

Open Leaflet
