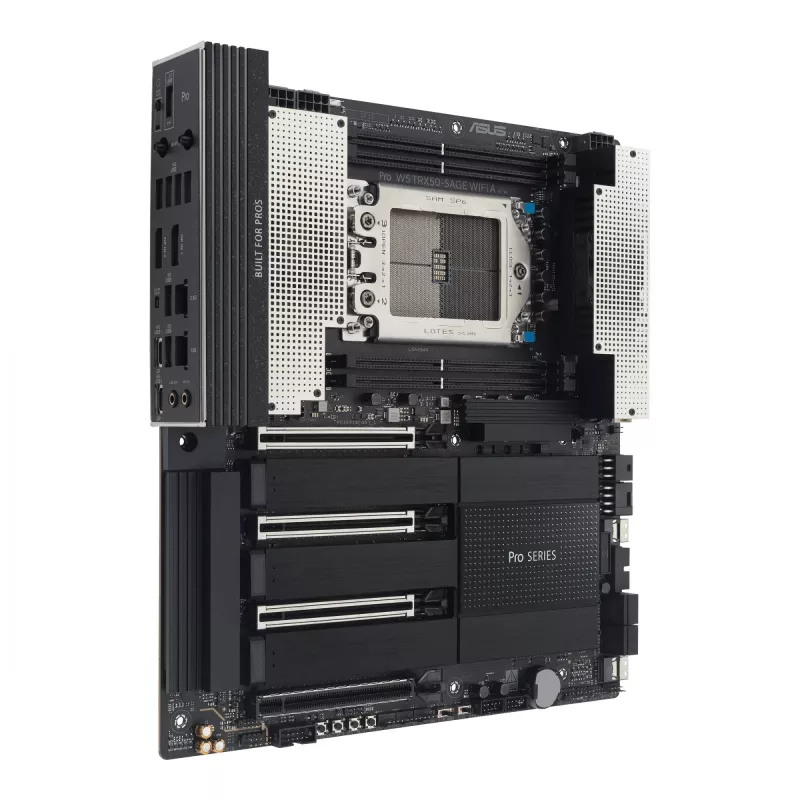

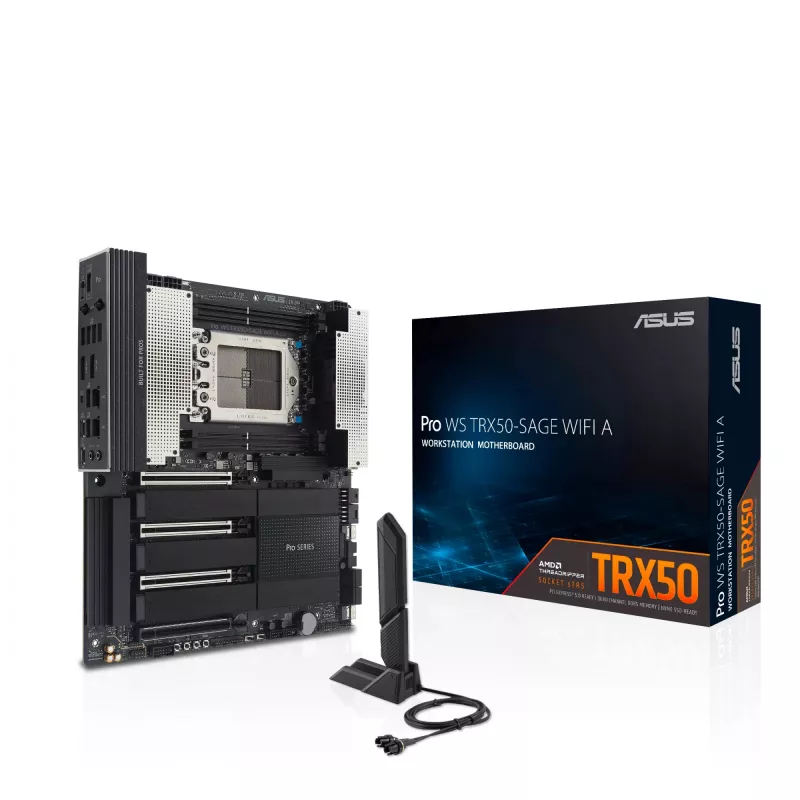

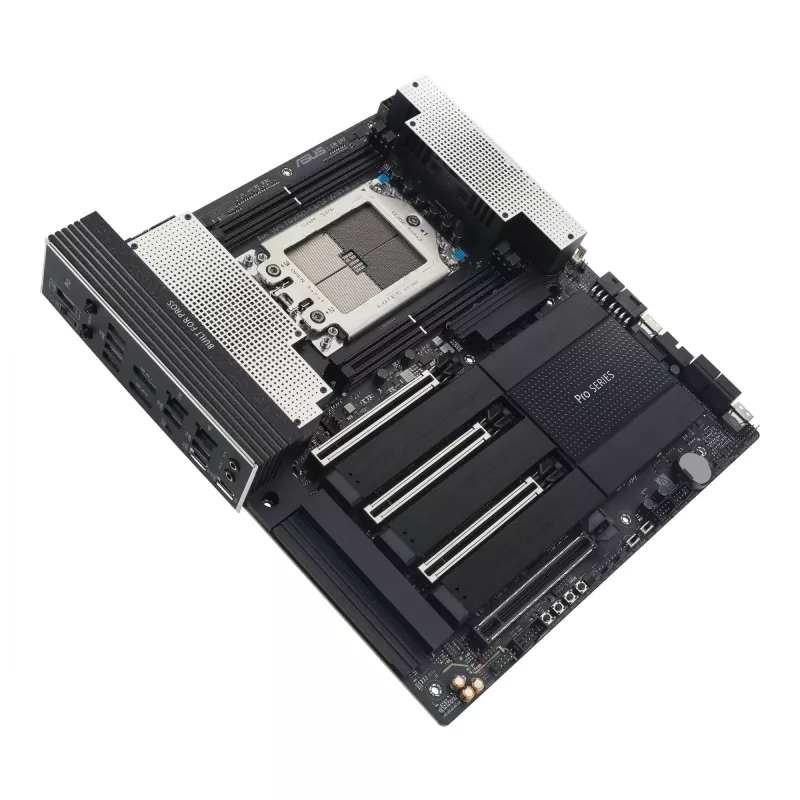

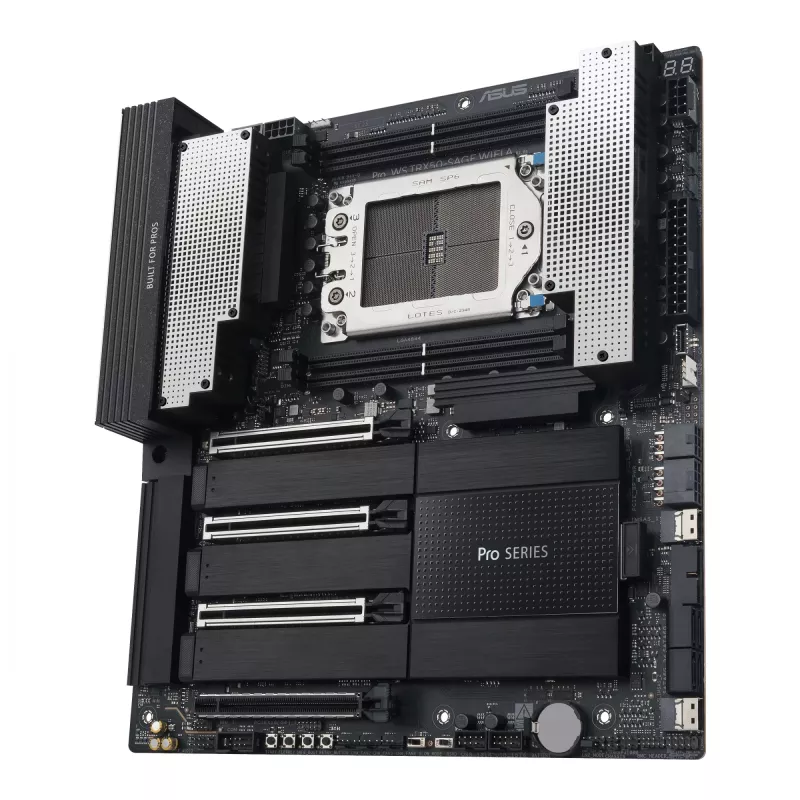

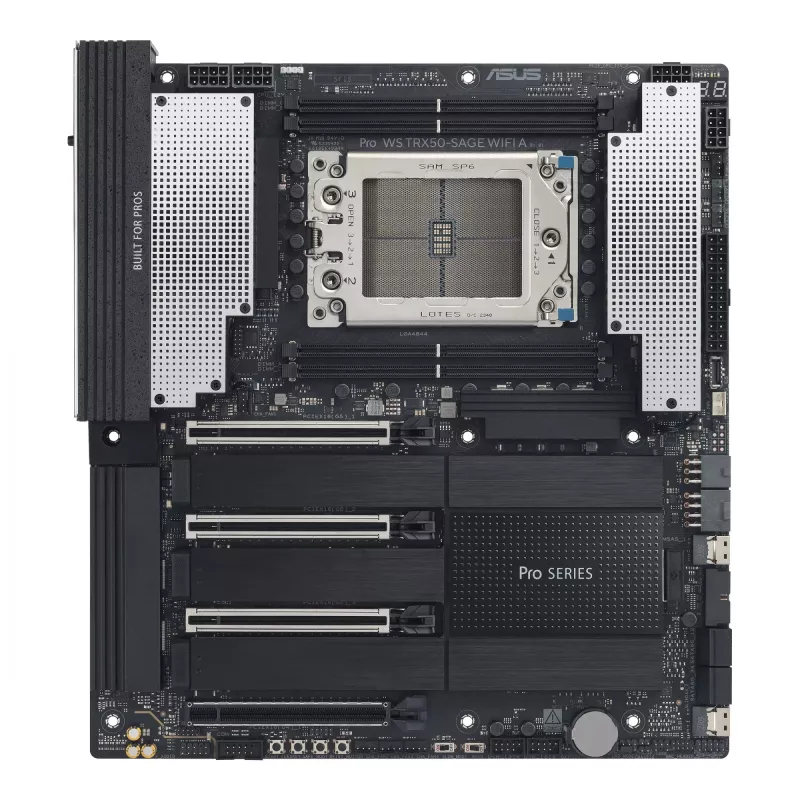

Motherboard ASUS PRO WS TRX50-SAGE WIFI A — AMD TRX50, Socket sTR5, CEB, DDR5, Wi‑Fi 7

ASUS PRO WS TRX50-SAGE WIFI A is a workstation-class CEB motherboard based on the AMD TRX50 chipset for Socket sTR5. It supports AMD Ryzen Threadripper 7000 Series and Ryzen Threadripper PRO 7000 WX-Series processors and provides four DDR5 DIMM slots in a dual-channel layout. The board integrates multiple high-speed storage options including M.2, SATA III and SlimSAS with RAID 0/1/5/10 support, dual 2.5 Gb and 10 Gb Ethernet, and Wi‑Fi 7 (802.11be). Designed for sustained workloads, the platform includes robust power delivery, active VRM cooling and extensive connectivity for professional applications.

Advantages

The motherboard delivers a high-stability foundation for workstation systems by combining a 20-stage power design, active VRM heatsinks and multiple CPU power inputs for reliable operation under heavy CPU loads. Native support for DDR5 memory and up to four DIMMs allows large memory capacities and error-correcting configurations suitable for demanding compute tasks. Integrated networking options cover both ultra-fast wired connections and the latest Wi‑Fi 7 standard, while multiple PCIe 5.0 and 4.0 expansion slots plus front USB Type-C and USB4 ports enable broad I/O flexibility for GPUs, NVMe storage and professional peripherals.

Suitable for

• High-performance content creation and 3D rendering workstations
• Machine learning and AI development rigs requiring multi-GPU or accelerator setups
• Software development, compiling and simulation tasks needing many CPU cores and large memory pools
• Professional video editing and post-production with fast local NVMe storage and high-bandwidth I/O
• Enterprise-grade remote management and 24/7 server-adjacent workloads using IPMI and monitoring tools

Key specifications

• Form factor: CEB
• Chipset: AMD TRX50
• Processor socket: Socket sTR5; supports AMD Ryzen Threadripper 7000 and Ryzen Threadripper PRO 7000 WX-Series processors
• Memory: 4 × DDR5 DIMM slots; support for R-DIMM and ECC configurations, up to high-capacity modules
• Power design: 20 power stages with dual 8-pin CPU power connectors and active VRM cooling
• Expansion slots: Multiple PCIe 5.0 x16 and PCIe 4.0 x16 slots for GPUs and accelerators
• Storage interfaces: Multiple M.2 slots, SATA III ports and SlimSAS NVMe support with RAID 0/1/5/10 capability
• Networking: Dual 2.5 Gb and 10 Gb Ethernet ports plus Wi‑Fi 7 (802.11be) and Bluetooth 5.4

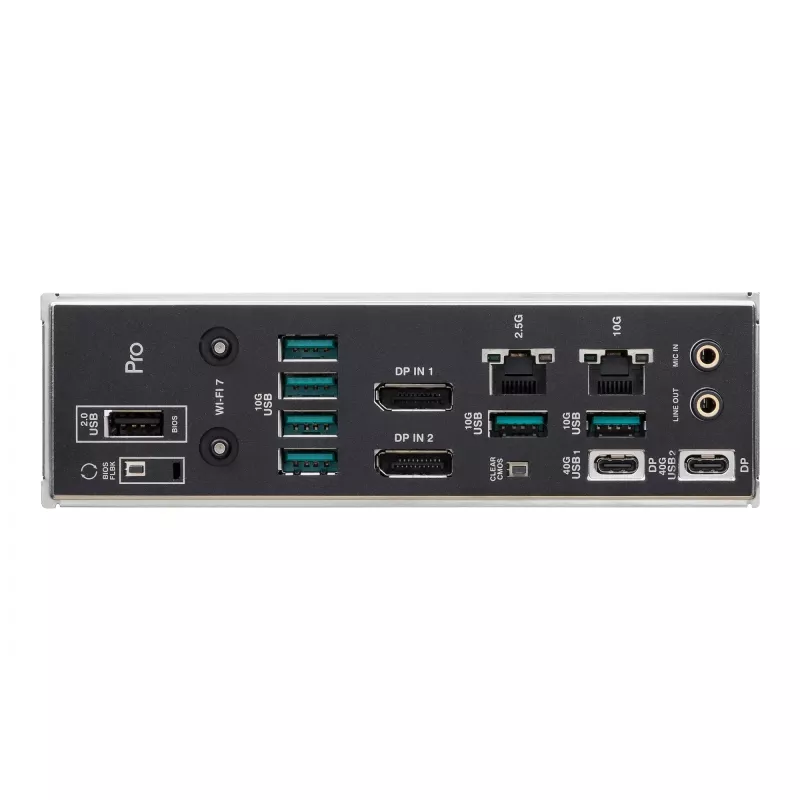

• Rear and front I/O: USB4 (40 Gbps) ports, front USB 20 Gbps Type-C, multiple USB-A ports and audio codec with multi-channel support
• Management: Support for server-grade IPMI remote management and compatibility with system monitoring software
• BIOS: UEFI AMI firmware

How to use

Install the board into a compatible CEB chassis and connect an appropriate sTR5-compatible Threadripper processor following the CPU socket and cooler manufacturer guidelines. Populate DDR5 DIMMs into the four memory slots according to the motherboard manual to enable optimal channel configuration and ECC support where applicable. Connect power using the dual 8-pin CPU power headers and standard ATX main power connector. Install storage devices into M.2, SATA or SlimSAS connectors and configure RAID arrays in the UEFI BIOS if required. Fit GPUs and expansion cards into the PCIe slots; use the onboard PCIe power connectors where additional auxiliary power is needed. Update to the latest UEFI firmware and install vendor drivers and management tools for full functionality.

Recommendations

For sustained heavy workloads, use an approved high-current power supply and ensure active cooling for VRMs and case airflow. Follow the QVL memory list when selecting DDR5 R-DIMM modules and configure BIOS settings for ECC and performance tuning as required by your workload. When deploying multi-GPU or accelerator configurations, verify that case layout and PSU cabling allow proper power and airflow, and enable IPMI-based monitoring in environments requiring remote management.
